Fiber Optic Patch Panels

A fiber optic patch panel organizes cable termination, protected splices and accessible patch connections. Choose the enclosure format and adapter arrangement to suit the fiber count and installation.

Specify capacity in fibers as well as front-panel openings. Confirm whether the supplied assembly includes adapters, connectorized pigtails, splice trays, glands and mounting accessories.

Download Datasheet PDF Request a Quote

19-inchRack format

Wall mountDistribution boxes

SC / LC / ST / FCConfiguration options

Empty / LoadedSupply options

Rack and wall termination · Adapter layouts · Splice management

Rack Mount or Wall Mount Fiber Patch Panel

Rack Mount Fiber Optic Patch Panel

Use a 19-inch rack format for equipment rooms and structured patching. Confirm U height, rail mounting, cable access and sliding or fixed construction.

Wall Mount Fiber Patch Panel

Use a wall enclosure for local distribution and splice termination. Confirm mounting space, door access, cable glands and usable tray capacity.

Rack panels suit organized patch rows in cabinets. Wall boxes provide local termination where a rack is unnecessary. Neither format defines the optical connector or environmental rating by itself; select the exact configuration for the installation.

Adapter Openings and Fiber Capacity

A 24-opening panel can carry 24 fibers with simplex adapters or 48 fibers with duplex adapters where that layout is supported. The NGP 1U PDF gives these model-specific examples:

NGP configuration	Openings	Adapter	Capacity
NGP01	24	SC simplex / LC duplex / E2000 simplex	24 / 48 / 24 fibers
NGP02	24	SC duplex / LC quad	48 / 96 fibers
NGP03	12	SC simplex / LC duplex / E2000 simplex	12 / 24 / 12 fibers
NGP04	12	SC duplex / LC quad	24 / 48 fibers

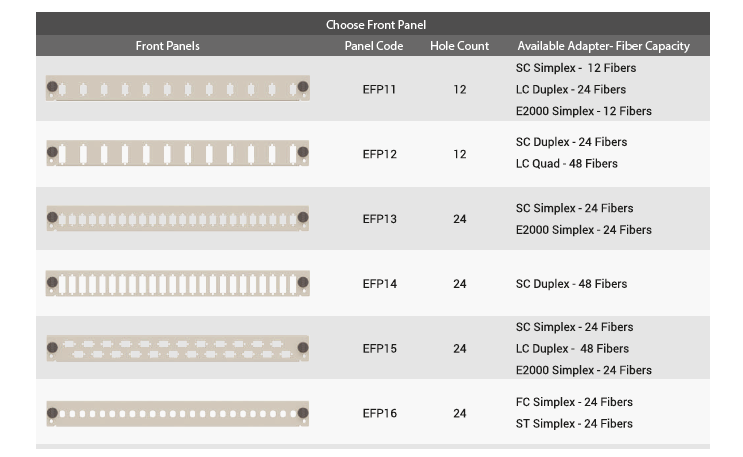

Download the NGP 1U PDF. These capacities describe NGP configurations, not every rack panel. The separate mechanical sliding rack-panel PDF uses its own front-panel and adapter ordering codes.

Published Wall-Box Configuration Examples

Documented version	Adapter openings	Splice trays	Maximum splice capacity	Published dimensions (D × W × H)
48-fiber wall-box PDF	24	2 × 24 fibers	48 fibers	50 × 200 × 160 mm
96-fiber wall-box PDF	48	4 × 24 fibers	96 fibers	110 × 450 × 330 mm

The PDFs list steel construction and SC, LC, ST or FC adapter options. Confirm the selected adapter layout and final drawing before ordering. Connector count, adapter openings and tray capacity must all support the required working fiber count.

Specify a Complete Fiber Patch Panel Assembly

Choose rack or wall mounting; state available space, rack U height and cabinet depth where relevant.
State working fiber count and reserve capacity. Define both adapter openings and fibers per adapter.
Select connector type, UPC/APC polish, singlemode or multimode grade and compatible pigtails.
Define splice method, tray quantity and capacity, cable-entry sizes and strain relief.
Request empty, partly loaded or fully loaded supply and list all included components.
Specify labeling, port numbering, grounding where relevant, and acceptance test documentation.

For factory-terminated trunks, select a cassette or connectorized panel arrangement instead of assuming a splice tray is required. Maintain the cable and fiber bend limits throughout the enclosure.
