Drill-powered, electric, pneumatic and hydraulic solutions for fiber installation.
Product Range
Six machine models, with supporting equipment and cable blowing lubricants.
16 products · 6 machines · 7 accessories · 3 lubricants

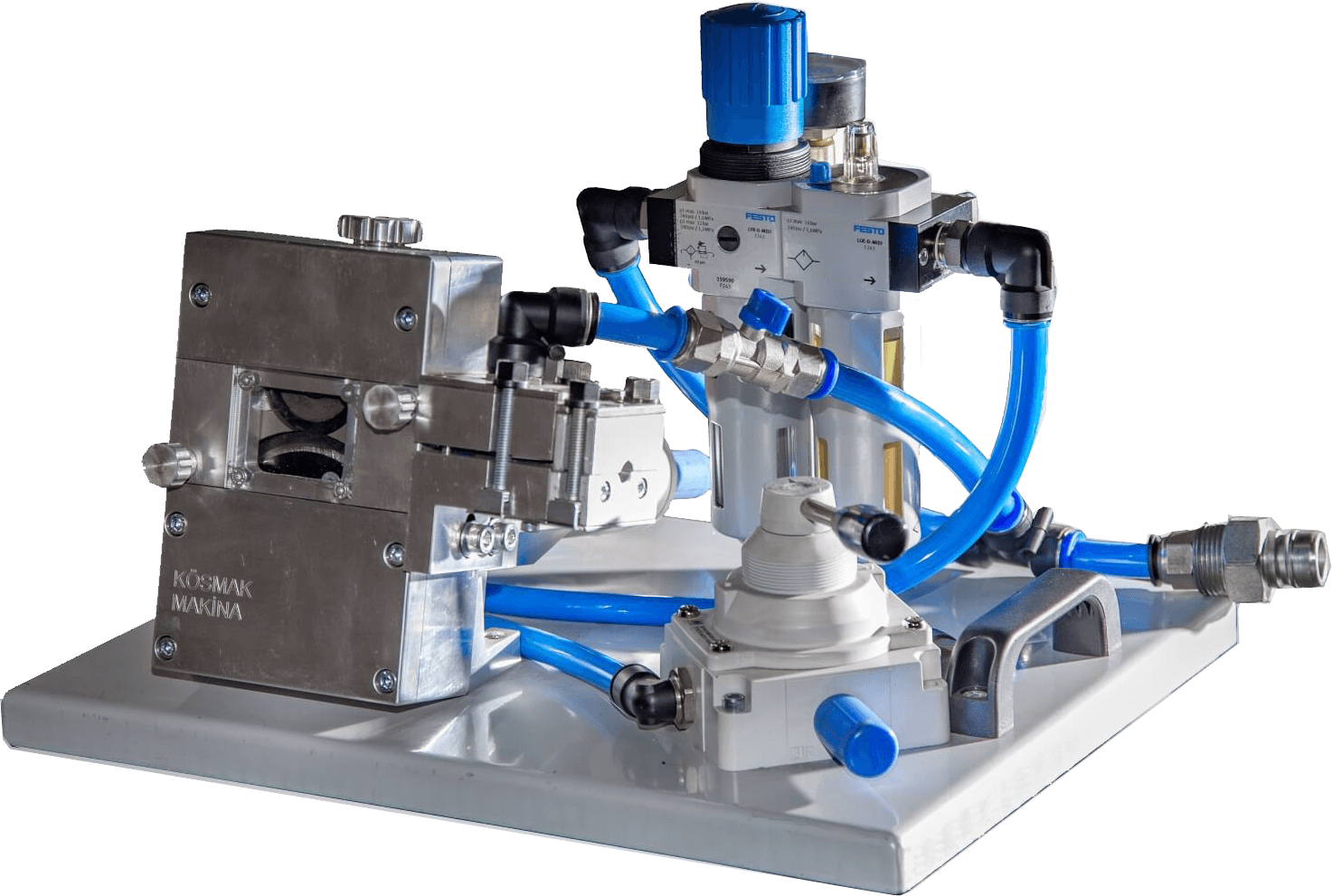

Pneumatic
Handles Ø1–6 mm micro cables in compact FTTH and microduct installations where controlled feeding and precise adjustment are required.
Drill-powered
Handles Ø1–8 mm cables with a drill-powered drive for portable field work, service jobs and installations with limited working space.

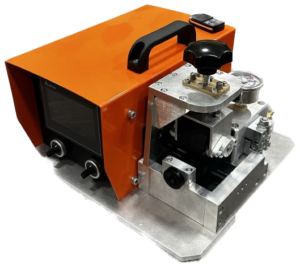

Electric motor
Provides electric cable feeding for Ø1–8 mm micro cables in controlled installations where an electric drive is preferred.

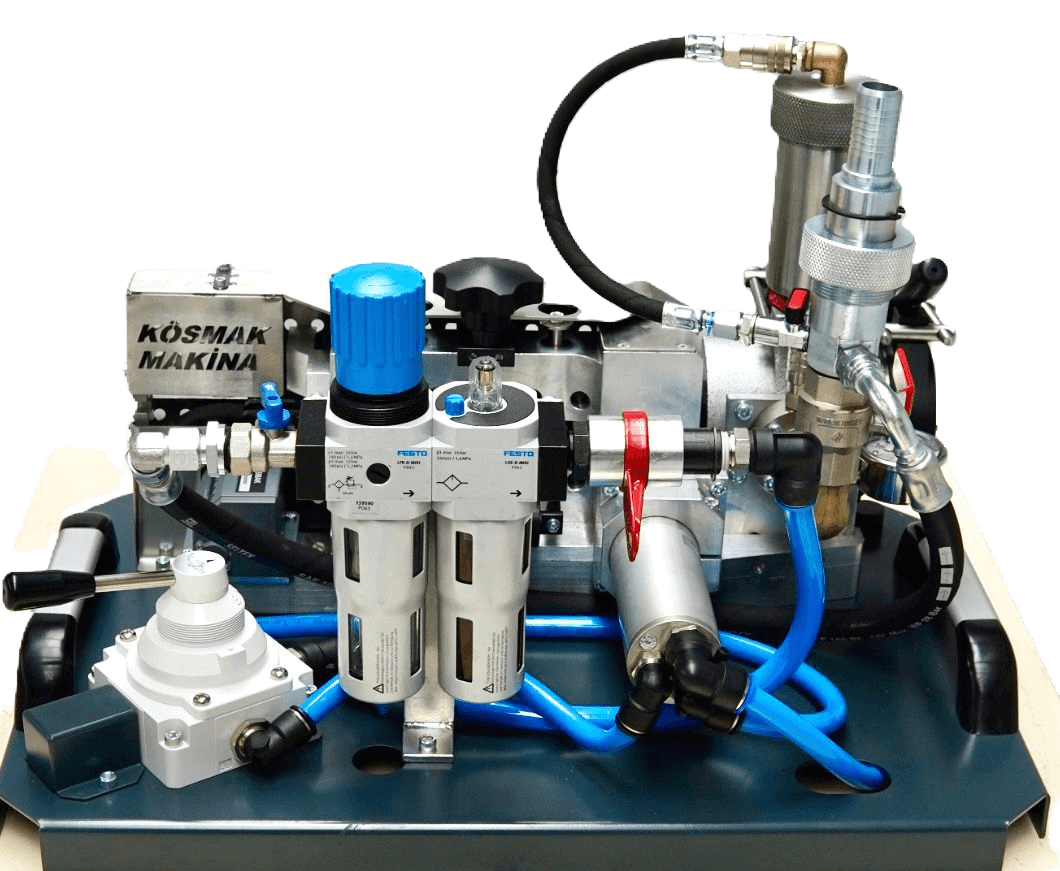

Pneumatic
Covers Ø2.5–12 mm cables in a compact pneumatic platform suited to FTTH, access-network and general field installations.
Pneumatic
Handles Ø9–22 mm telecom cables with a pneumatic drive for backbone, access-network and contractor installations.

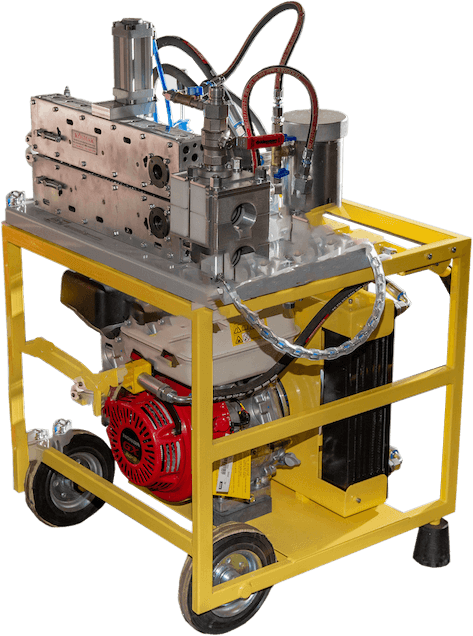

Hydraulic
Handles Ø9–24 mm cables with a hydraulic drive for heavy-duty projects, larger cable diameters and long-distance backbone installations.
FULL PACKAGE includes all pallet or roller sets listed for the model, together with all listed duct holders.
For a selected configuration, we supply only the chosen pallet or roller option and one duct connection tool in your selected diameter. Example: FOK with the 9–13 mm pallet set and a 32 mm duct connection tool.
Duct holders for other diameters can also be manufactured on request.
Supporting Equipment

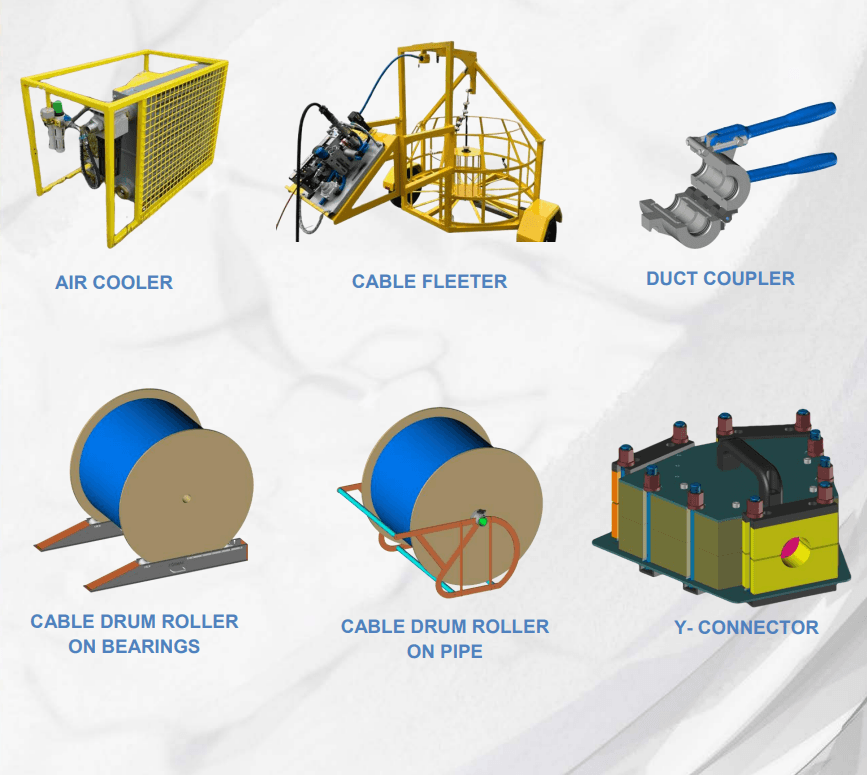

Complete the installation setup with duct connection tools, cable handling equipment, compressed-air conditioning and machine-specific spare parts.

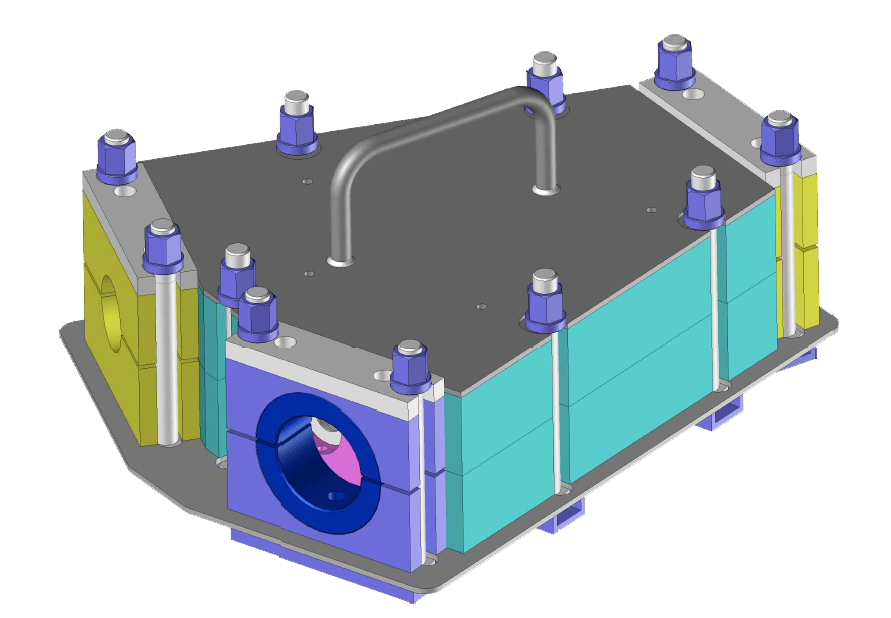

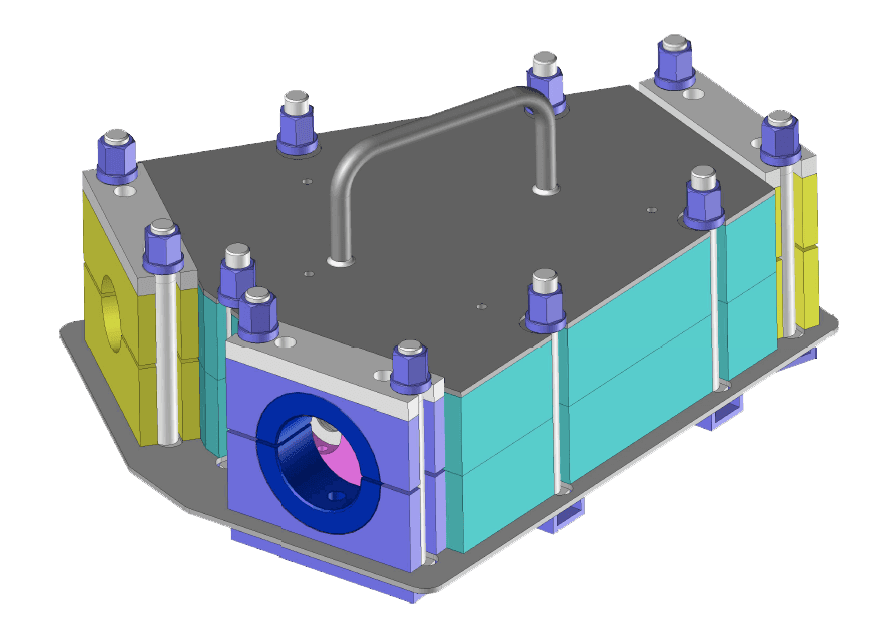

Adds another cable or microduct to an occupied duct while maintaining a sealed air path.
View Y Connector

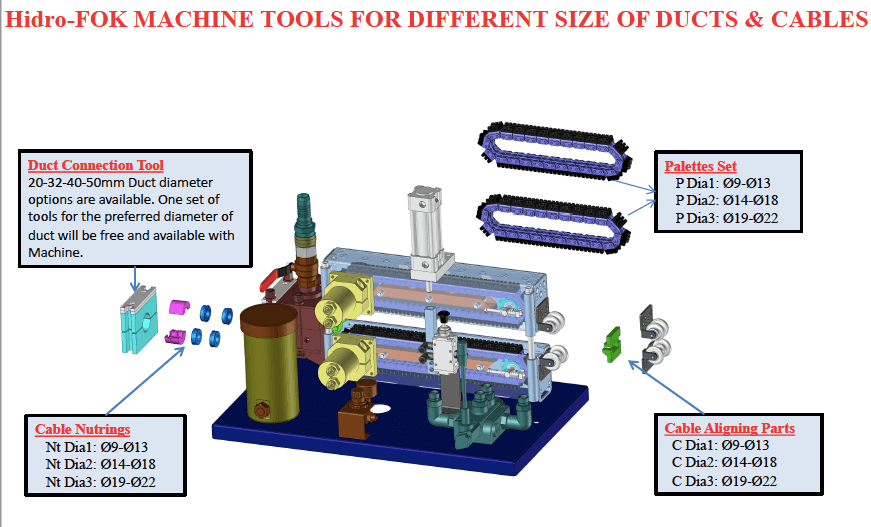

Machine-specific pallets, seals, guides and duct tools matched to the machine, cable OD and duct dimensions.
View spare parts

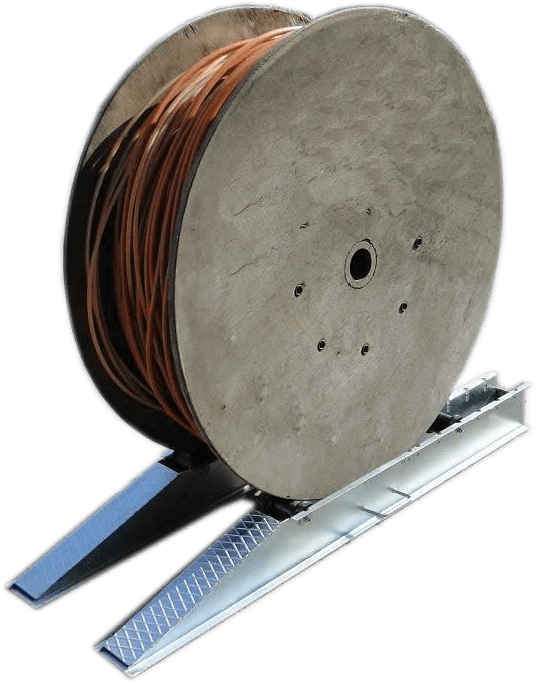

Improves cable payoff stability and reduces unnecessary cable stress during feed.
View Cable Drum Roller

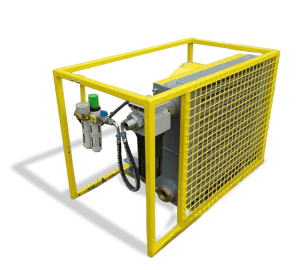

Cools compressor discharge air before it reaches the machine and helps reduce moisture carryover.
View Air Cooler

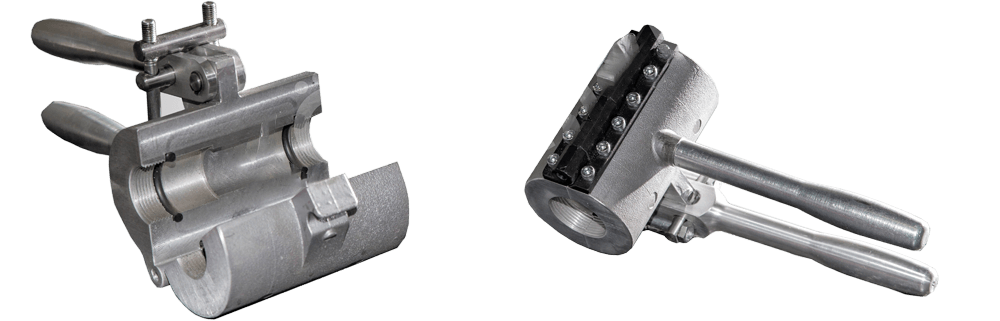

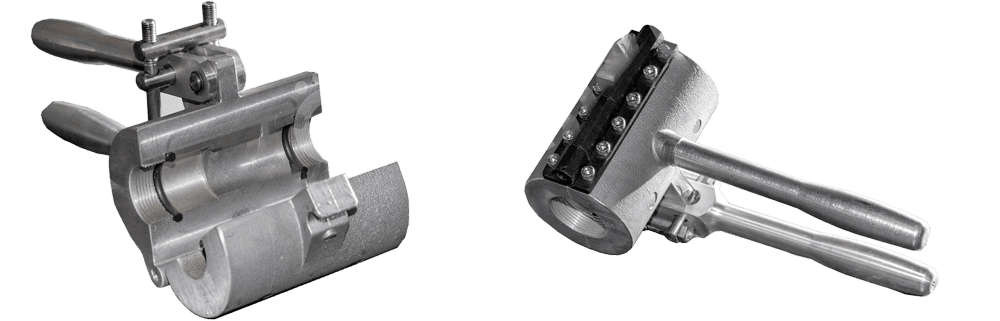

Temporarily joins two ducts with a reusable hinged body that can be removed after cable blowing.
View Duct Coupler

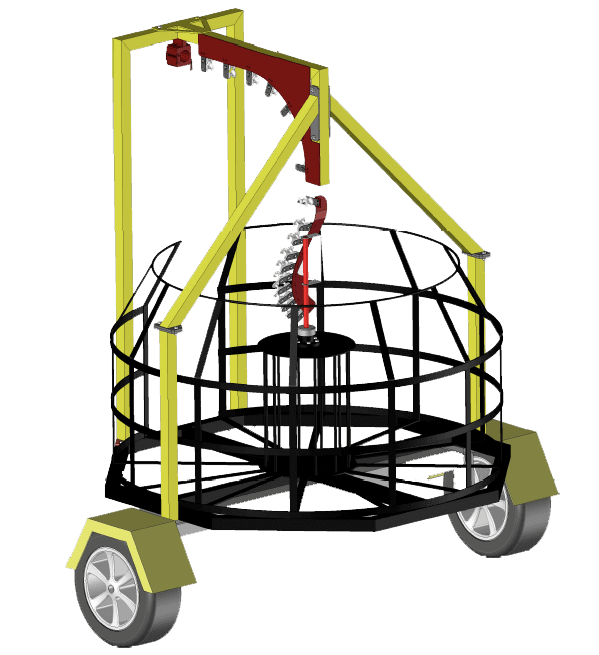

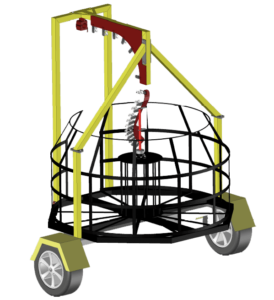

Stores the remaining cable in a controlled figure-eight pattern between stages of a multi-section route.
View Cable Fleeter Trailer

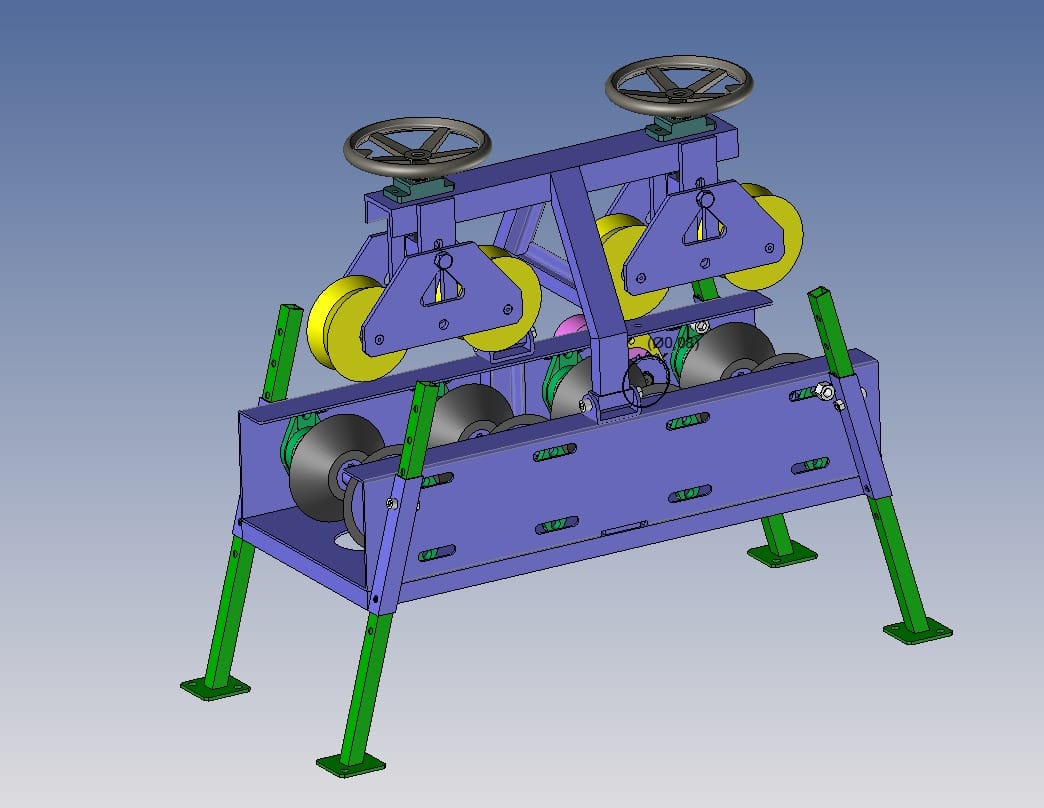

Uses powered rollers to feed medium and large ground cables with controlled speed and pushing force.
View Cable PusherLubricants
Select the lubricant for your cable, duct dimensions and installation conditions.
High-performance cable blowing lubricant for smoother cable movement and reduced friction in duct installation.
View UP-S-LUB-100XL

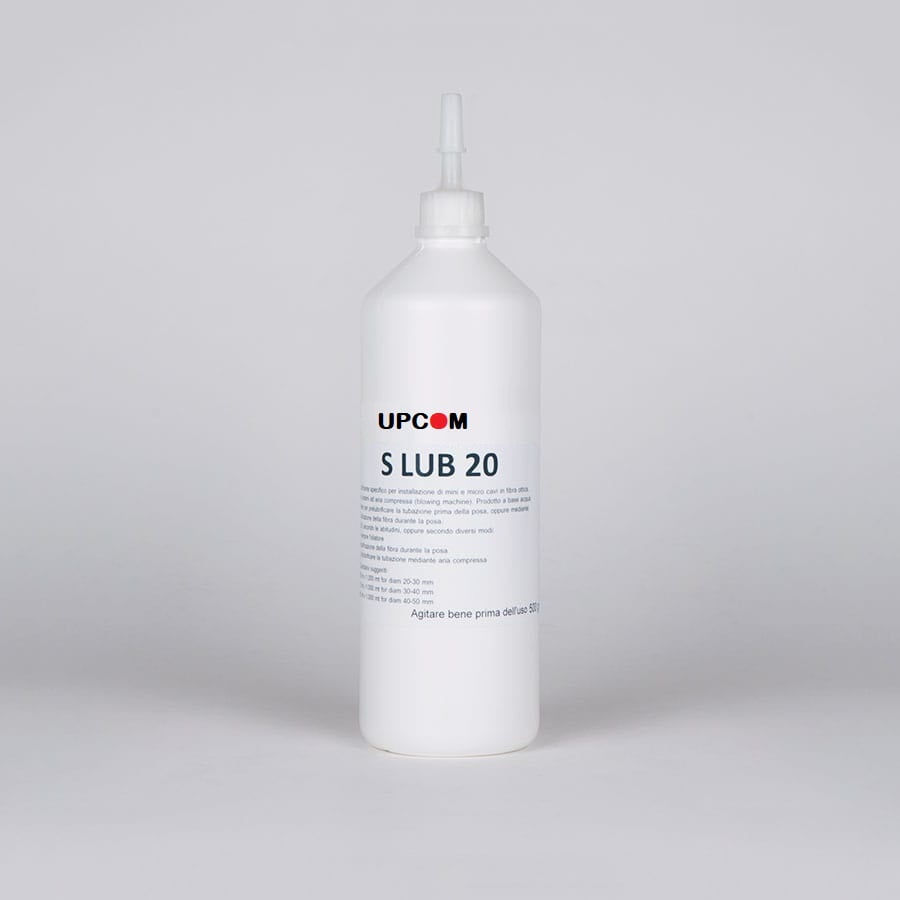

Water-based lubricant for micro and mini cable blowing in ducts with a 15–50 mm internal diameter.
View UP-S-LUB-20

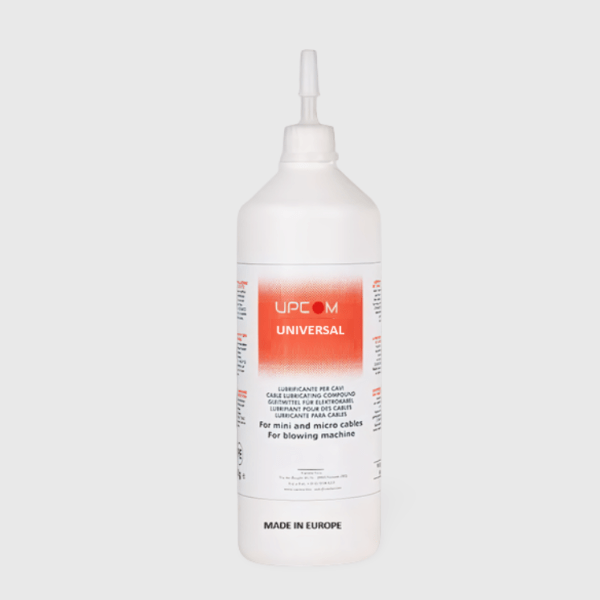

General-purpose cable blowing lubricant for supporting smoother cable installation across a range of duct applications.
View Universal LubricantFind your model
Confirm cable, duct and tooling compatibility.
Resources
Compare machine requirements for your installation method and project.
Compare requirementsSetup guidance, troubleshooting resources and spare parts information.
Explore Field SupportStart with cable diameter, then use route and performance requirements to narrow the machine selection. For unusual projects, send us the actual cable and duct data.

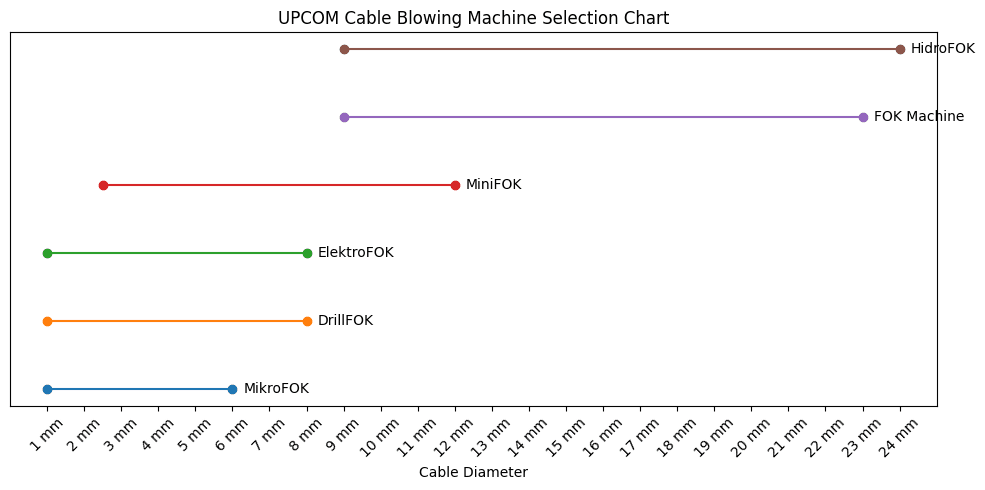

Start with cable outside diameter to identify the machine families that physically match the project.
Compare realistic engineering ranges instead of relying only on maximum machine specifications.
Send the actual project parameters and UPCOM can help match the machine and tooling configuration.
Already operating a UPCOM machine? Find model-specific setup checks, troubleshooting, spare parts and document references.

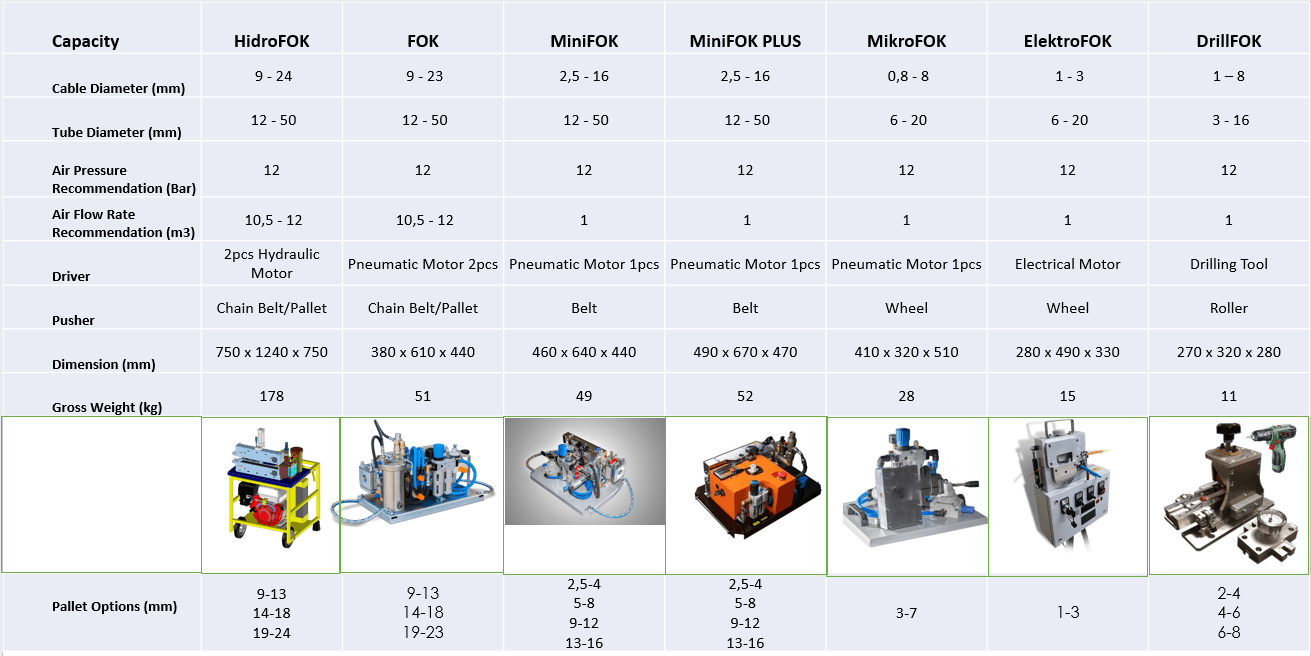

Official machine limits and typical engineering field ranges are shown separately. Typical speed, single-run distance and shift output are planning references, not guaranteed performance values.
| Model | Cable / duct compatibility | Typical field speed | Typical single run | Indicative 8-hour output |
|---|---|---|---|---|
| HidroFOK | Ø9–24 mm / Ø20–60 mm duct OD | 35–60 m/min | 1,000–2,000 m | 4–8 km |
| FOK | Ø9–22 mm / Ø20–50 mm duct OD | 35–55 m/min | 800–1,500 m | 3–6 km |
| MiniFOK | Ø2.5–12 mm / Ø7–40 mm tooling | 30–50 m/min | 500–1,200 m | 2.5–5 km |
| MiniFOK Genius | Ø4–8 mm / 14–16 mm tooling | Not published | Not published | Not published |
| MikroFOK | Ø1–6 mm / Ø6–20 mm duct OD | 25–50 m/min | 300–800 m | 2–4 km |
| DrillFOK | Ø1–8 mm cable | 20–40 m/min | 200–600 m | 1.5–3 km |
| ElektroFOK | Ø1–8 mm / Ø4–18 mm duct | 25–50 m/min | 300–800 m | 2–4 km |
For the engineering assumptions behind these ranges, including cable-to-duct ID ratio and compressor airflow, see the Cable Blowing Distance & Performance Guide.
