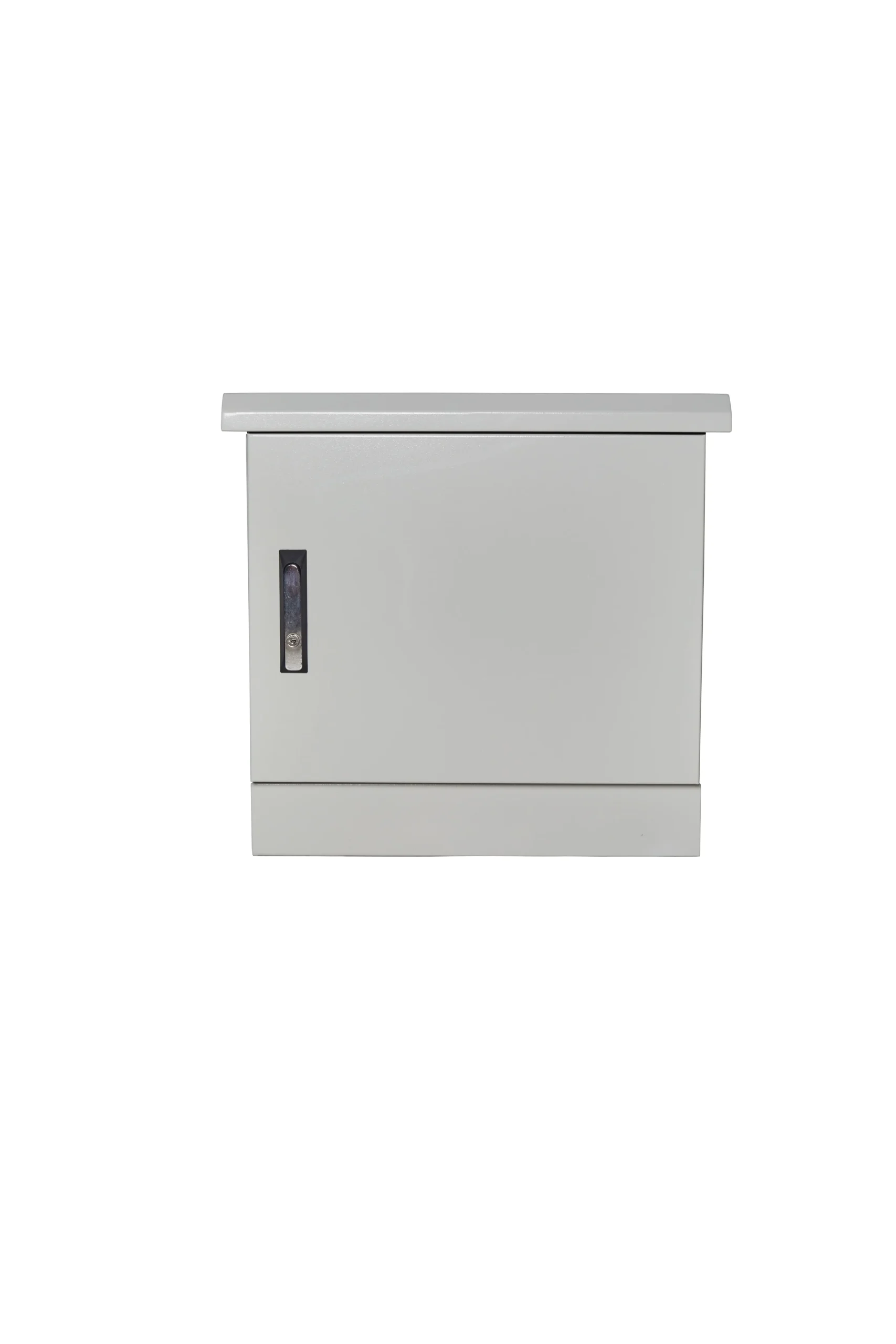

19″ IP66 Outdoor Telecom Cabinet – GUARD BOX BASIC

GUARD BOX BASIC is a 19″ IP66 outdoor telecom cabinet designed to protect telecom, network, and power equipment in harsh outdoor environments. The cabinet provides IP66 protection against dust, water penetration, and corrosion with a mono-block welded structure and insulated cabinet body.

You can explore the full outdoor cabinet series here: Outdoor Telecom Cabinet Series.

Technical documentation: Guard Box Basic Datasheet (PDF)

Installation Flexibility

The GUARD BOX BASIC cabinet supports pole mounting, wall mounting, and free-standing installation configurations. Cable entry points and grounding connections are designed to simplify field installation and maintenance.

Cabinet Construction Design

The cabinet body is manufactured using mono-block welding technology to eliminate structural gaps and improve mechanical rigidity. This construction method increases long-term durability and reduces deformation risk in outdoor installations.

DX51D+Zn275 galvanized steel construction combined with outdoor polyester coating provides corrosion resistance and long service life in outdoor environments. Fully gasketed door sealing ensures consistent IP protection performance over time.

Cabinet Dimensions

Height (U)	Cabinet Height (mm)	Width (mm)	Depth Options (mm)
7U	480	600	400 / 450 / 600
9U	570	600	400 / 450 / 600
12U	705	600	400 / 450 / 600
15U	840	600	400 / 450 / 600

Thermal Management Design

Outdoor telecom cabinets are exposed to direct sunlight and ambient temperature variations. The insulated cabinet structure and controlled ventilation system help maintain stable internal operating conditions.

Thermostat-controlled fans activate only when required, reducing dust intake while maintaining airflow efficiency.

19″ IP66 Outdoor Telecom Cabinet Features

IP66 protection (sealed construction)
Mono-block fully welded cabinet body
DX51D+Zn275 galvanized steel structure
RAL7035 outdoor polyester coating
500-hour salt spray resistance
10 mm insulation material
Single-skin and double-skin cabinet options
Filtered ventilation system
Lockable front door
Grounding connection
Cable entry points

Cooling and Ventilation System

The cabinet includes a thermostat-controlled fan and filter ventilation system installed on the canopy roof. For IP protection classification reference, see the IEC 60529 IP protection standard .

Applications of 19″ IP66 Outdoor Cabinet

Telecommunication infrastructure
FTTx distribution networks
Traffic control systems
Security and surveillance systems
Industrial automation systems

Outdoor Installation Reliability

Outdoor telecom cabinets must withstand temperature changes, moisture, dust, and mechanical stress. The sealed cabinet structure, insulation layer, and corrosion-resistant coating protect sensitive telecom equipment from environmental damage.
