Wall mount rack cabinet vs floor standing rack: which one should I choose?

A wall mount rack cabinet saves floor space for compact installations. Floor standing racks are preferred for higher U capacity, heavier loads, or frequent rear access.

Wall Mount Rack Cabinet - W-Line Wall Mount Rack Cabinet

Wall Mount Rack Cabinet (W-Line)

Q: Does W-Line support active cooling?

Yes. The top cover supports optional fan module installation. Many indoor deployments can rely on passive airflow if heat load is moderate and vents remain clear.

Q: Is W-Line suitable for outdoor use?

No. W-Line is designed for indoor installations (IP20 reference). For outdoor use, select an IP-rated outdoor cabinet series.

Wall Mount Rack Cabinet (W-Line) is a compact 19" enclosure for installing and protecting network switches, patch panels, routers, UPS units and other rack equipment where floor space is limited. It is commonly used in offices, network rooms, retail backrooms and telecom distribution points.

W-Line wall mount rack cabinet with glass front door

19" rack format 4U–20U 550×450 / 550×550 Lockable door Removable side panels Fan cut-out option IP20 (indoor)

U heights	4U, 7U, 9U, 12U, 16U, 20U
Width × depth	550×450, 550×550 mm (series options)
Door options	Glass front door or perforated metal door
Access	Removable & lockable side panels + rear access panel
Cooling readiness	Vented top cover + dual fan cut-out (optional fan module)
Colors	RAL 9005 Black / RAL 7035 Light Grey

Request a Quote W-Line Catalogue (PDF) 3D View (PDF) Assembly

Related Rack and Fiber Distribution Products: Rack Cabinets · 19" Free Standing Rack · Fiber Optic Patch Panel · Wall Mount Fiber Patch Panel

On this page

Select a cabinet size
Why choose a wall mount rack cabinet?
Wall Mount Rack Cabinet – Key features
Sizes & options
Drawings & views
How to use / install
FAQ
Related Rack and Fiber Distribution Products

Wall Mount Rack Cabinet Size Selector

Choose rack height and width × depth below. Open a size page for its technical specification and quotation details.

W-Line: 12 size options. Dimensions are width × depth in millimetres. On a narrow screen, scroll the table horizontally.
Rack height	550 × 450 mm	550 × 550 mm
4U	4U 550 × 450UP-4UDVT-550X450	4U 550 × 550UP-4UDVT-550X550
7U	7U 550 × 450UP-7UDVT-550X450	7U 550 × 550UP-7UDVT-550X550
9U	9U 550 × 450UP-9UDVT-550X450	9U 550 × 550UP-9UDVT-550X550
12U	12U 550 × 450UP-12UDVT-550X450	12U 550 × 550UP-12UDVT-550X550
16U	16U 550 × 450UP-16UDVT-550X450	16U 550 × 550UP-16UDVT-550X550
20U	20U 550 × 450UP-20UDVT-550X450	20U 550 × 550UP-20UDVT-550X550

Width × depth refers to cabinet dimensions, not usable equipment depth. Confirm rail position and cable clearance for your equipment.

Request a Quote

Why choose a Wall Mount Rack Cabinet?

Space & layout

Space efficiency: keeps equipment off the floor in tight locations
Cleaner cabling: top/bottom cable entries support tidy routing
Standard 19" layout: compatible with common rack-mount equipment

Security & service

Security: lockable door and panels help prevent unauthorized access
Serviceability: removable side panels speed up maintenance
Cooling readiness: fan cut-outs support optional active ventilation

Technical references: 19-inch rack overview · IP code overview

Wall Mount Rack Cabinet – Key features (W-Line)

19" adjustable mounting rails: depth-adjustable for installed equipment
Lockable front door: glass or perforated metal option (project dependent)
Side access: 2 removable & lockable side panels
Rear access: rear panel supports wall installation and service work
Cable entry: top and bottom brushed cable entries for organized routing
Optional cooling: top cover supports fan module installation
Indoor use: IP20 reference for typical indoor installations

Need help selecting U height and depth? See: Choosing the right 19" rack cabinet .

Sizes & options

Parameter	Options
U heights	4U, 7U, 9U, 12U, 16U, 20U
Width × depth	550×450 mm, 550×550 mm
Door	Glass front door or perforated metal door
Colors	RAL 9005 Black / RAL 7035 Light Grey
Cooling	Optional fan module (top cut-outs)
Special option	Hinged double section wall mount cabinet (rear hinged section ~160 mm)

Drawings & views

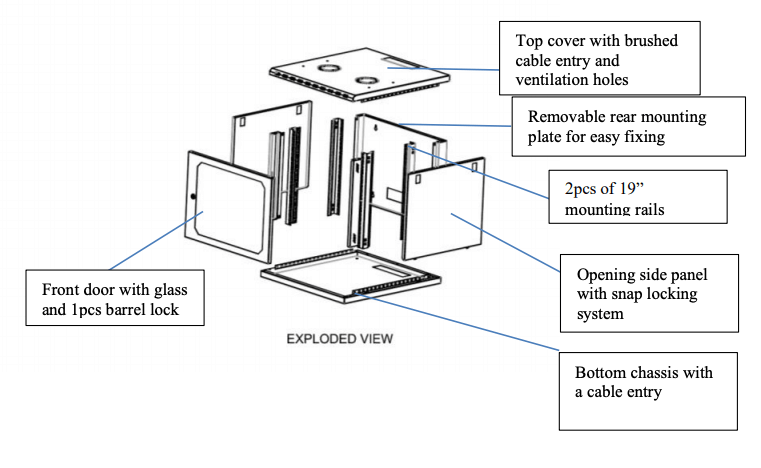

Exploded view

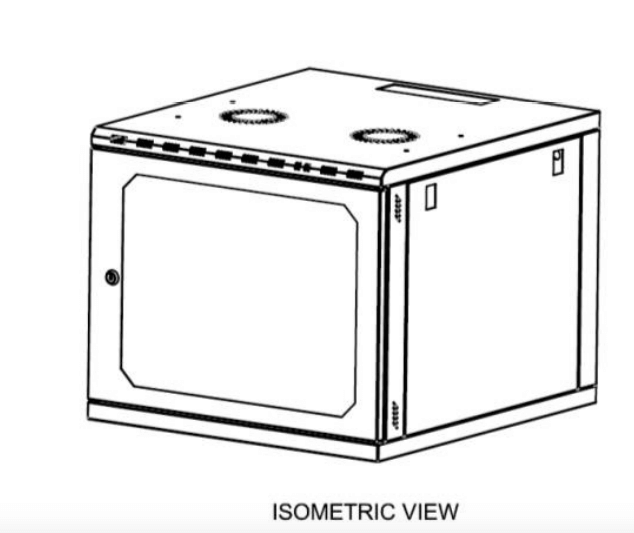

Isometric view

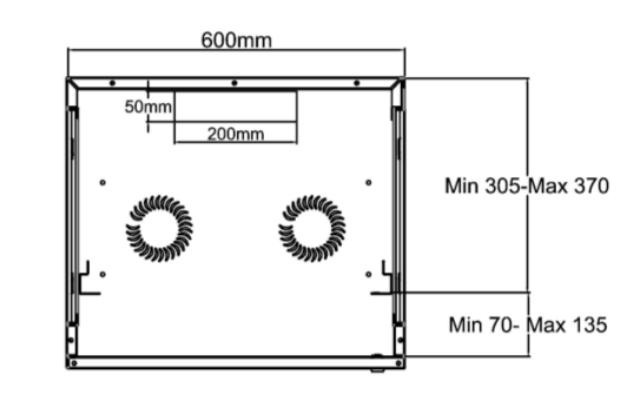

Max device mounting dimension

Standards overview

W-Line Catalogue (PDF) 3D View (PDF) Product Video (MP4)

How to use / install W-Line Wall Mount Rack Cabinet

Choose location: solid wall (concrete/brick) and safe service access.
Select size: U height + depth option based on deepest device and cable bend radius.
Fix to wall: use appropriate anchors and verify level mounting.
Cable entry: plan top/bottom entries; use brush/glands to reduce dust.
Mount equipment: install patch panels/switches/UPS; keep airflow path clear.
Cooling: add fan module if heat load is high and airflow is restricted.
Lock & label: lock door/panels; label ports/cables for maintenance.

FAQ

W Line cabinet vs floor standing rack: which one should I choose?

A wall mount rack cabinet saves floor space and is preferred for compact installations. Floor standing racks are used when higher U capacity, heavier loads, or frequent rear access is needed.

Does W-Line support active cooling?

Yes. The top cover supports fan installation (optional fan module). For many indoor deployments, passive airflow is enough if cabling does not block vents and heat load is moderate.

Is W-Line suitable for outdoor use?

No. W-Line is designed for indoor installations (IP20). For outdoor environments, use an IP-rated outdoor cabinet series.

What information do you need for a fast quotation?

U height, depth option (550×450 or 550×550), door type (glass/perforated), color, fan module requirement, quantity and destination.

Request a Quote

For a fast quotation, send U height, depth option, door type and fan module requirement. Email: info@upcom.com.tr
