Turkish-made compact cable jetting solution
DRILLFOK Cable Blowing Machine

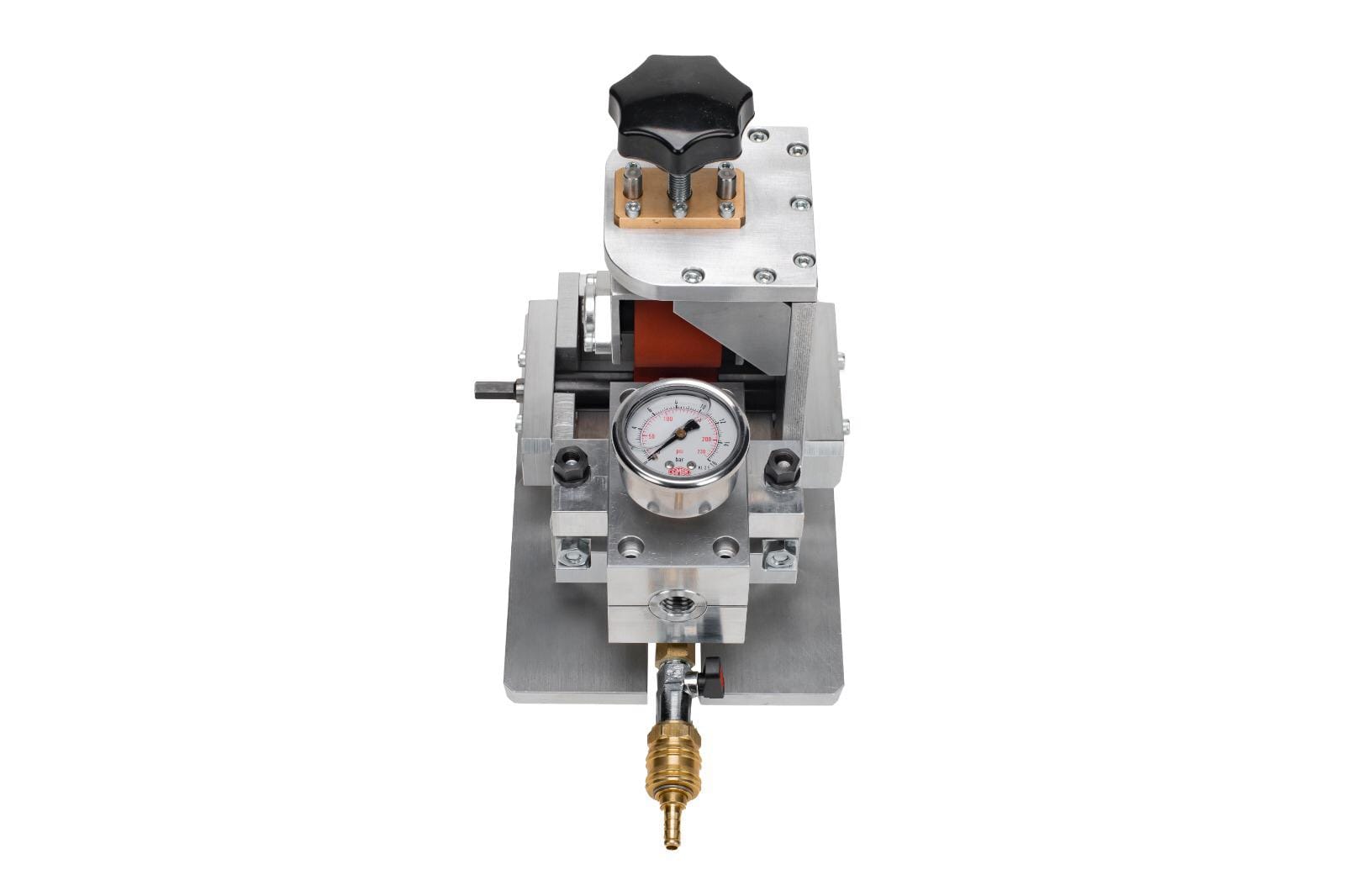

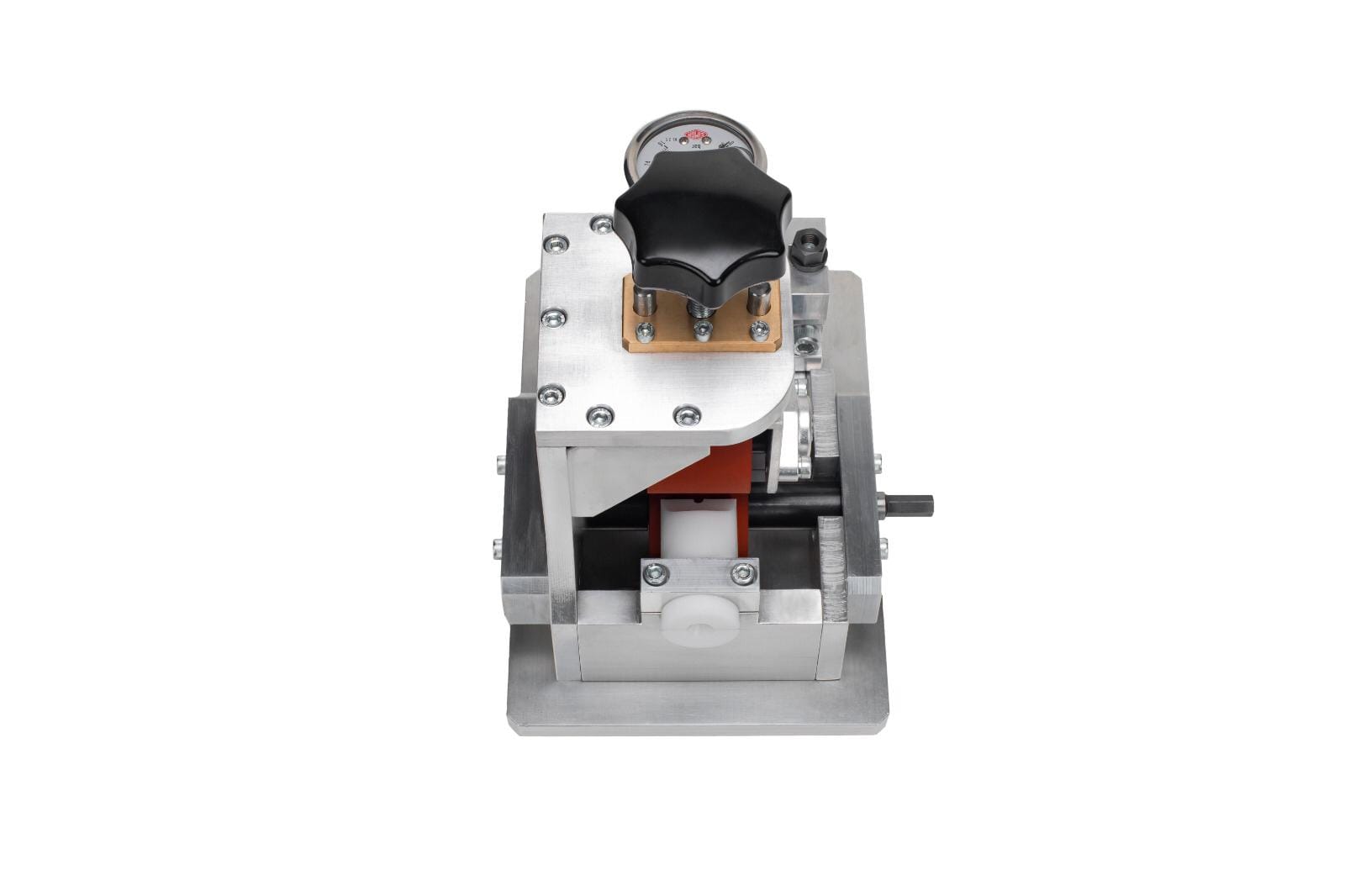

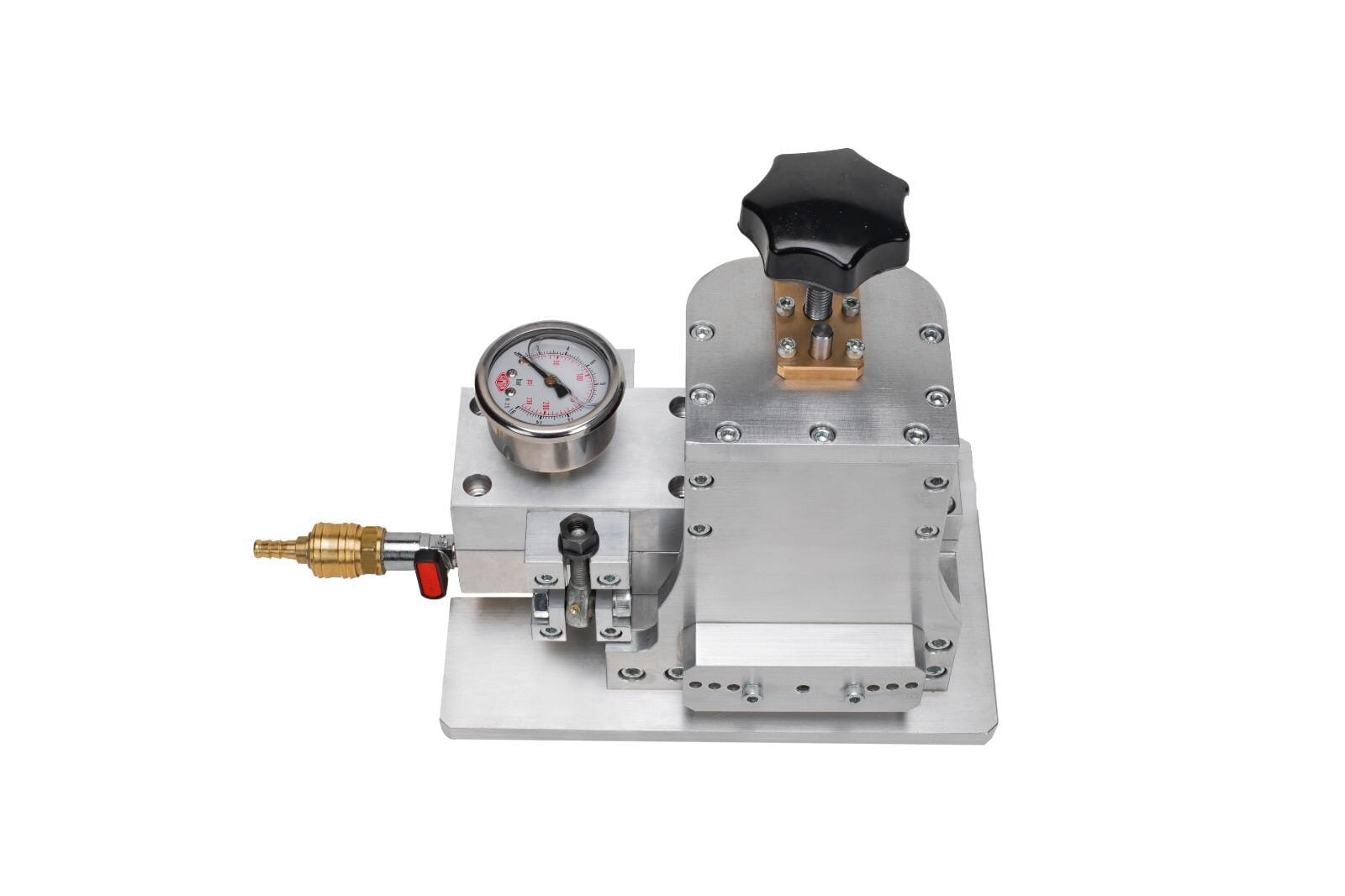

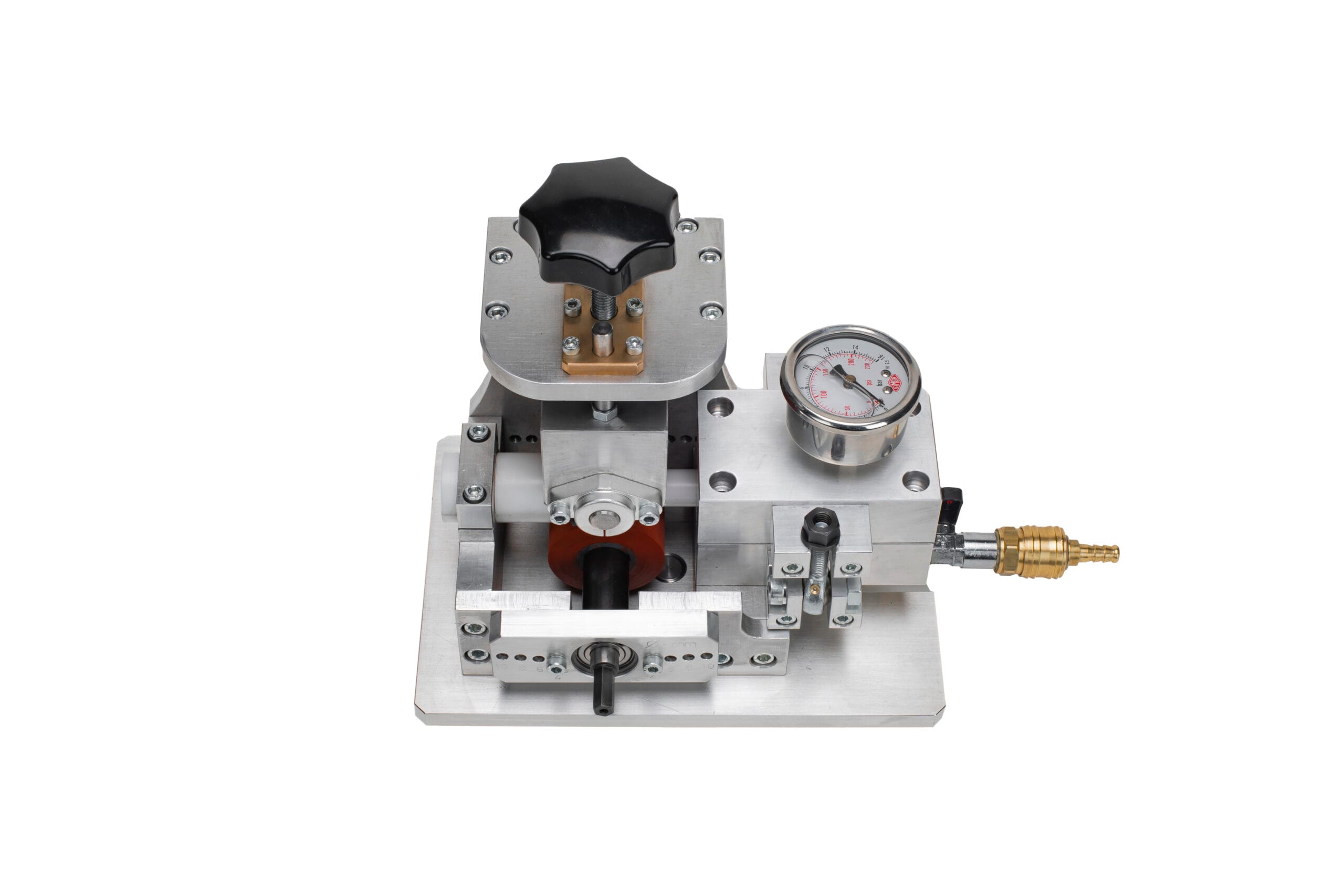

DrillFOK cable blowing machine is a compact, drill-powered cable jetting solution for Ø1-Ø8 mm fiber cables used in FTTH, in-building, campus, and short-distance microduct installation. By combining compressed air with a standard cordless drill, it gives field crews a lighter and more portable setup without the complexity of a larger motorized platform.
DrillFOK is built for fast mobilization, simple handling, and controlled cable feeding in real installation environments. It is a practical choice when technicians need a small footprint, quick cable/duct changeover, and dependable blowing performance for service work, last-mile deployment, and indoor routes.
- Ø1-Ø8 mmCable range
- Up to 1000 mInstallation distance
- Up to 90 m/minSpeed*
- 12 barAir pressure
- 10 kgMachine weight
Why Choose the DrillFOK Cable Blowing Machine?
The DrillFOK cable blowing machine is intended for contractors and technicians who need a compact installation unit for precision work rather than a heavier mid-range or hydraulic platform. The drill-powered structure keeps the machine simpler, lighter, and easier to transport between jobs.
- No internal motor, so the unit stays lighter and easier to service.
- Works with a standard cordless drill that can be sourced locally almost anywhere.
- Portable frame is practical for indoor spaces, access chambers, risers, and field repair work.

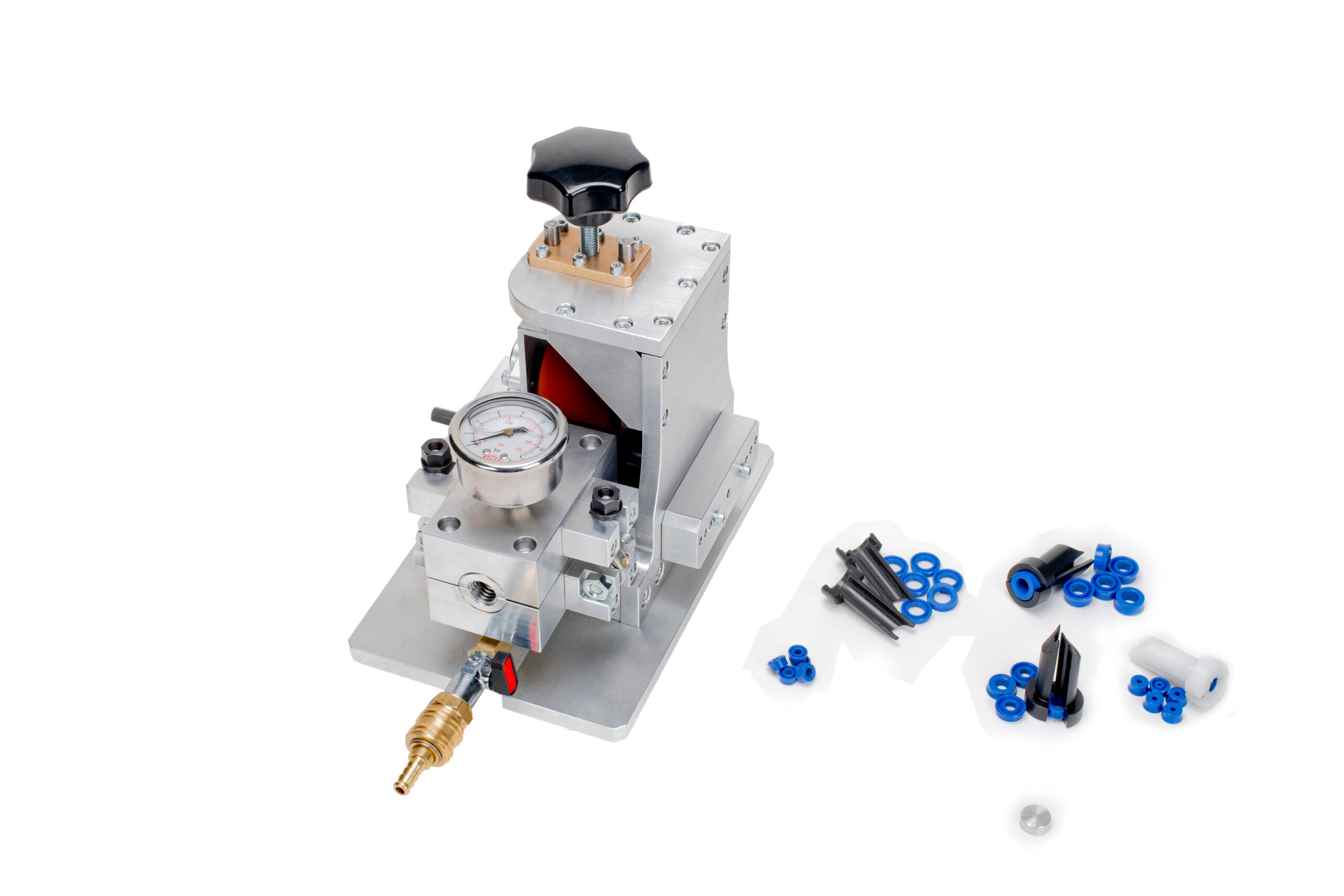

- Quick-change inserts and consumable parts help crews move between cable and duct sizes faster.
- Suitable for quote-based configuration according to the actual cable OD and duct OD on the project.
What Makes DrillFOK a Smart Site Machine?
Bigger machines are not always the better commercial answer. For FTTH drops, small ducts, indoor runs, or short sections where mobility matters more than brute force, DrillFOK gives installers a more efficient field package with lower transport burden and faster deployment on site.
- Compact footprint for vehicles, warehouses, and technician kits.
- Controlled feed with forward / reverse operation.
- Easy to carry for service calls and last-mile installation work.
- Good match for contractors handling microduct-based projects with frequent changeovers.
DrillFOK Cable Blowing Machine Technical Specifications
| Cable diameter | Ø1-Ø8 mm |
|---|---|
| Installation distance | Up to 1000 m, depending on cable structure, duct route, lubrication, air supply, and site conditions |
| Maximum blowing speed | Up to 90 m/min, depending on drill torque, cable stiffness, and route conditions |
| Air pressure requirement | 12 bar |
| Air consumption | Approx. 1 m³/min |
| Drive system | External cordless drill-powered roller |
| Direction | Forward / reverse |
| Dimensions | 310 × 250 × 320 mm |
| Weight | 10 kg |
| Configuration logic | Pallet, seals, and matching parts should be selected according to actual cable and duct diameters |
* Real job performance always changes with cable type, duct condition, route geometry, lubrication, compressor quality, and drill output.
How to Configure a DrillFOK Cable Blowing Machine Setup
- Confirm the cable outer diameter and the duct outer / inner diameter before selecting parts.
- Choose the correct pallet, seals, and guiding components for the actual cable and duct combination.
- Prepare a clean compressed air source with the required pressure and stable output.
- Use suitable lubrication and test a short section before full-distance installation when route quality is uncertain.
- Share cable OD, duct OD/ID, route length, and compressor details when requesting a quotation to avoid overspecifying the machine package.
For selection logic and installation practice, see the cable blowing machine selection guide and our fiber optic cable blowing guide.
Working Principle of the DrillFOK Cable Blowing Machine
DrillFOK uses compressed air to lower friction inside the duct while the drill-driven roller supplies controlled forward feeding force. This push-and-blow method helps install micro fiber cables with less surface stress than a purely mechanical pushing method.
Duct condition still matters. Clean route preparation, correct sealing, and a properly matched cable/duct combination make a measurable difference in both speed and achievable distance. For duct background, see this HDPE duct reference.
Where the DrillFOK Cable Blowing Machine Is Commonly Used
- FTTH last-mile cable installation
- In-building and riser fiber deployment
- Campus and enterprise short-route fiber work
- Microduct infrastructure projects
- Repair, service, and maintenance operations
- Contractor jobs where portability is more important than a heavier machine platform
Design Advantages of the DrillFOK Cable Blowing Machine
- Compact contractor-grade structure
- External drill drive keeps machine architecture simpler
- Quick cable and duct size changeover
- Easy-replaceable pusher rollers and wear parts
- Low transport and storage burden
- Practical for both indoor and outdoor use
Related Products and Useful Resources
All cable blowing machines
See the full UPCOM machine range from compact FTTH models to larger pneumatic and hydraulic systems.
Cable blowing machine quote page
Send cable OD, duct OD/ID, compressor details, and route information for a better-matched quotation.
MikroFOK vs ElektroFOK
Useful comparison page when the project sits between compact FTTH installation and electric motor-driven operation.
MikroFOK cable blowing machine
A smaller micro-cable platform for projects that need a narrower cable range and FTTH-focused handling.
ElektroFOK cable blowing machine
Electric motor-driven alternative for users who want variable speed control without relying on a cordless drill.
FAQ About the DrillFOK Cable Blowing Machine
What cable size can the DrillFOK cable blowing machine install?
DrillFOK is designed for fiber cables in the Ø1-Ø8 mm range. The correct pallet and sealing setup should be chosen according to the actual cable diameter and duct size.
Is DrillFOK fully pneumatic or drill-powered?
It works with both. Compressed air supports the installation process inside the duct, while the feeding force is provided by an external cordless drill connected to the machine.
What is the maximum installation distance of the DrillFOK cable blowing machine?
Under suitable conditions, the machine can install cable up to 1000 meters. Actual distance depends on route quality, cable stiffness, duct condition, lubrication, and available air supply.
Is DrillFOK suitable for FTTH and indoor fiber installation?
Yes. Its smaller footprint and portable body make it a good match for FTTH drops, building backbone work, service calls, and short-distance microduct deployment.
What should be shared when requesting a DrillFOK quotation?
Send the cable OD, duct OD/ID, route length, compressor details, and any special job conditions. That helps define the correct machine configuration and avoids unnecessary accessory cost.
DrillFOK Cable Blowing Machine Video
Watch the machine concept in action or open the video directly on YouTube if you prefer an external player.
Need a Project-Specific DrillFOK Configuration?
Share your cable diameter, duct size, route length, and compressor details. We can quote the machine with the right matching parts instead of pushing an oversized configuration that adds cost without adding value.
