Cable Drum Roller Tool
Cable Drum Roller Tool is a portable drum support system for controlled cable decoiling and recoiling during installation. It is designed for different drum diameters and widths, and the rear roller position can be adjusted to match multiple reel sizes in field conditions.
Used before cable blowing, pulling, or recoiling operations, this adjustable wire drum roller helps keep the drum elevated, rotating freely, and aligned for smoother cable payoff. The structure is simple, strong, and practical for installers who need a reliable reel support system on site.
On This Page
Cable Drum Roller Tool Overview
The Cable Drum Roller Tool is built to support cable drums during payout, rewinding, and handling stages of installation work. Instead of letting the reel drag, bind, or rotate unevenly on the ground, the roller set gives the drum a stable base and a cleaner, more controlled movement path.
This matters in real site conditions. A poorly supported reel can create cable twist, uneven payoff, dirty cable surfaces, or wasted time during repositioning. An adjustable cable reel roller reduces that friction in a very literal sense, which is exactly what installers need when the job is already difficult enough without the drum fighting back.
Adjustable Setup

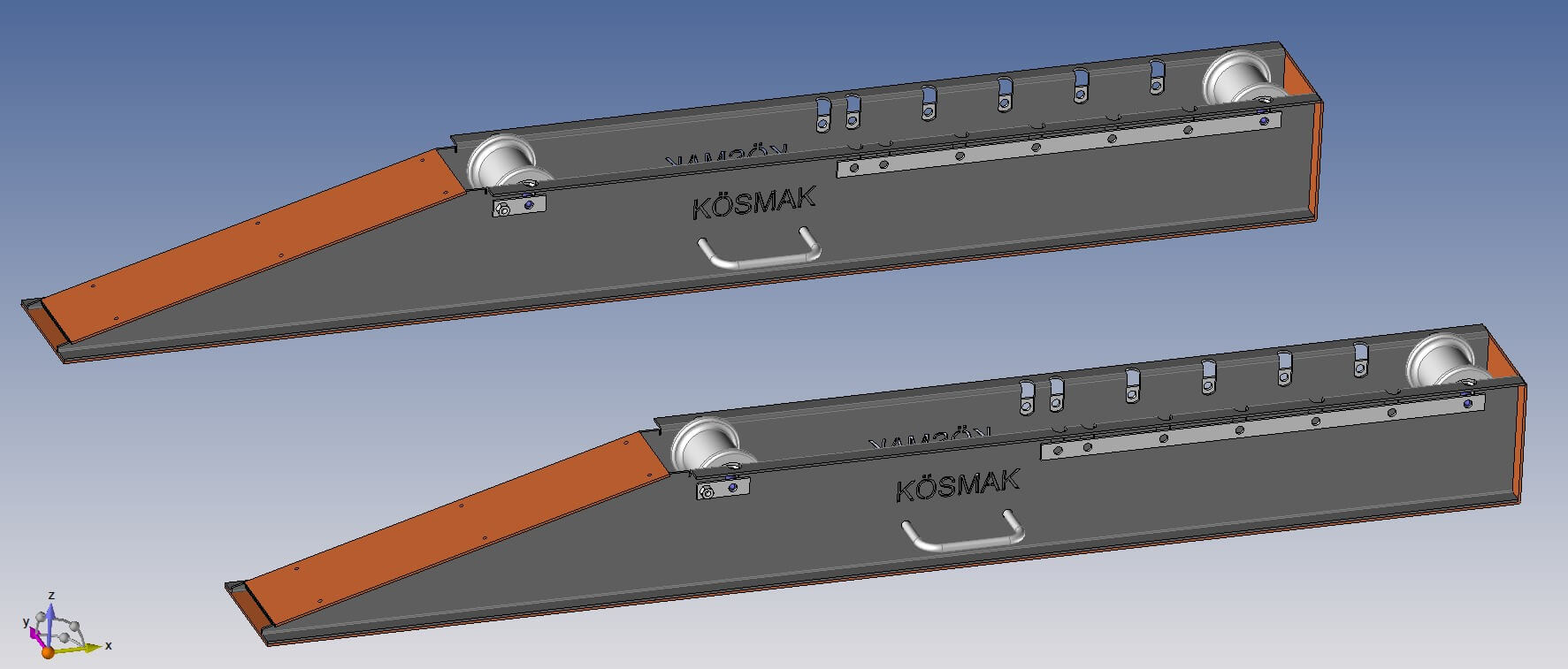

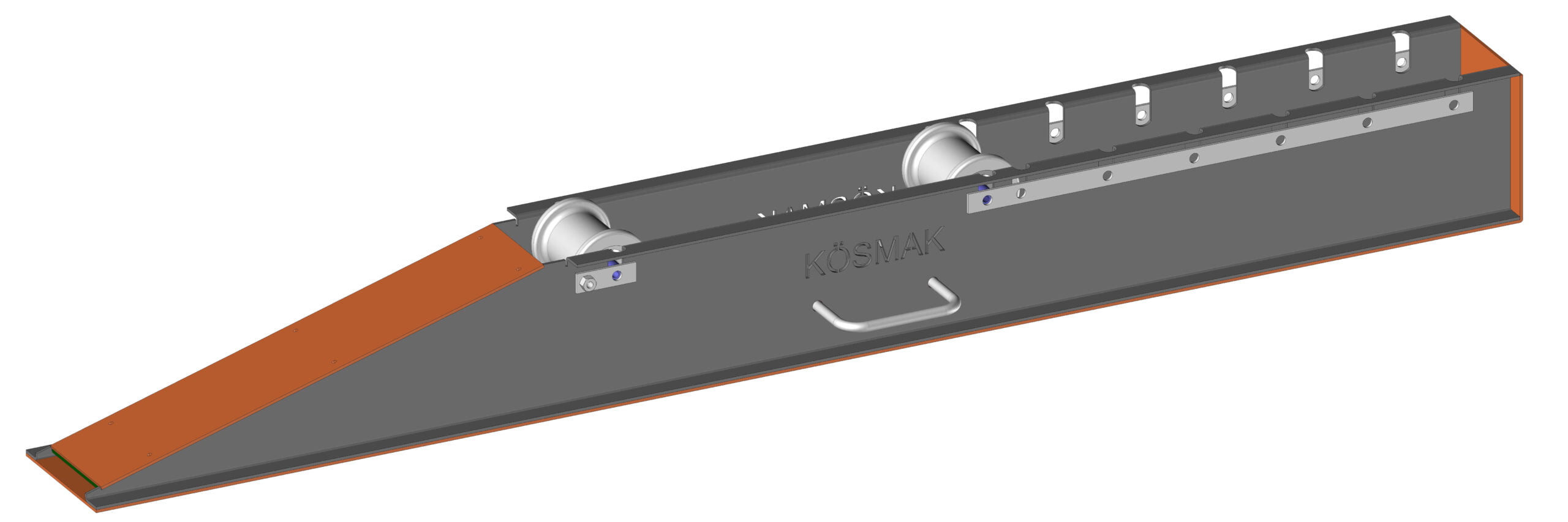

The rear roller position can be changed to suit different cable drum diameters and varying drum widths.
Smooth Drum Rotation
Supports cleaner drum movement during cable decoiling and recoiling, helping installers maintain a more stable payoff.
Heavy-Duty Structure
Fabricated steel construction is suitable for repeated use in installation, workshop, and field environments.
Portable Design
The compact roller structure is practical to carry and reposition on site when the working area changes.

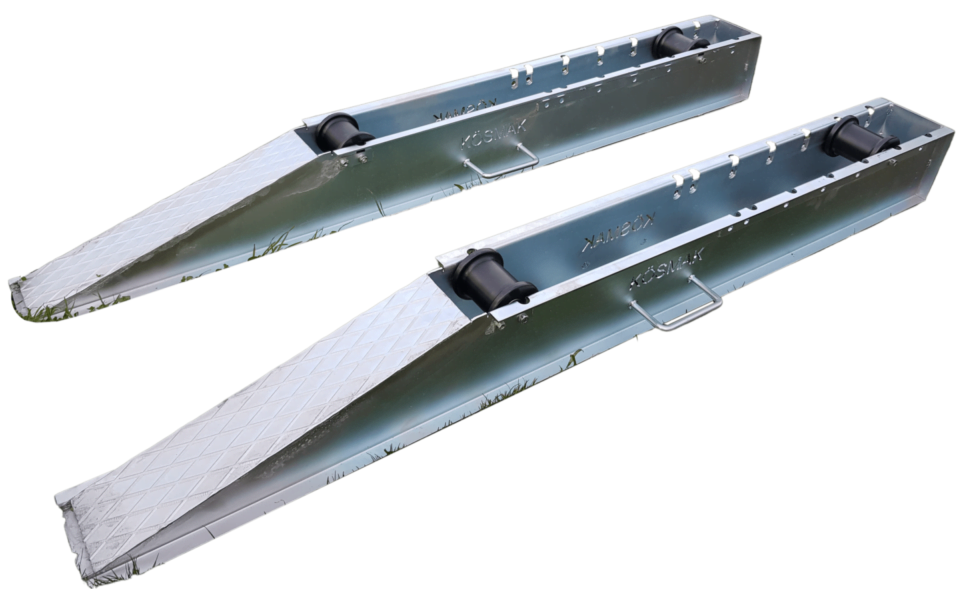

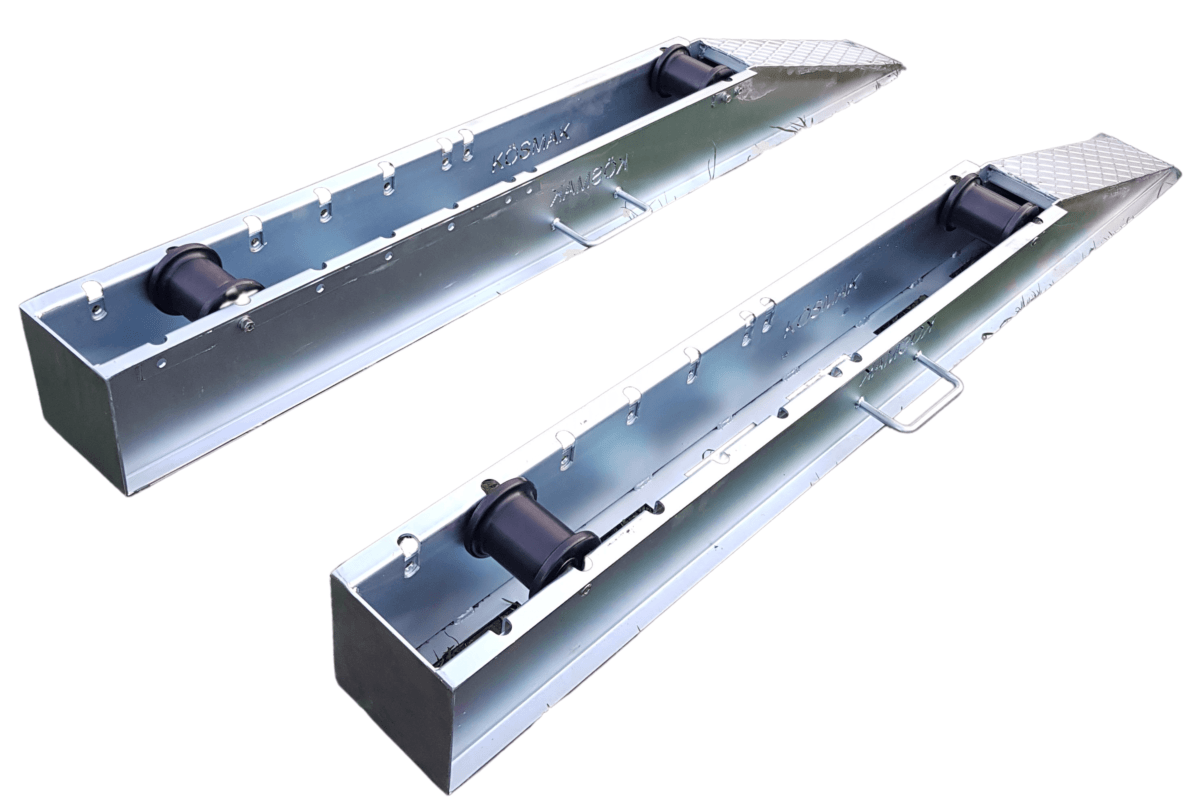

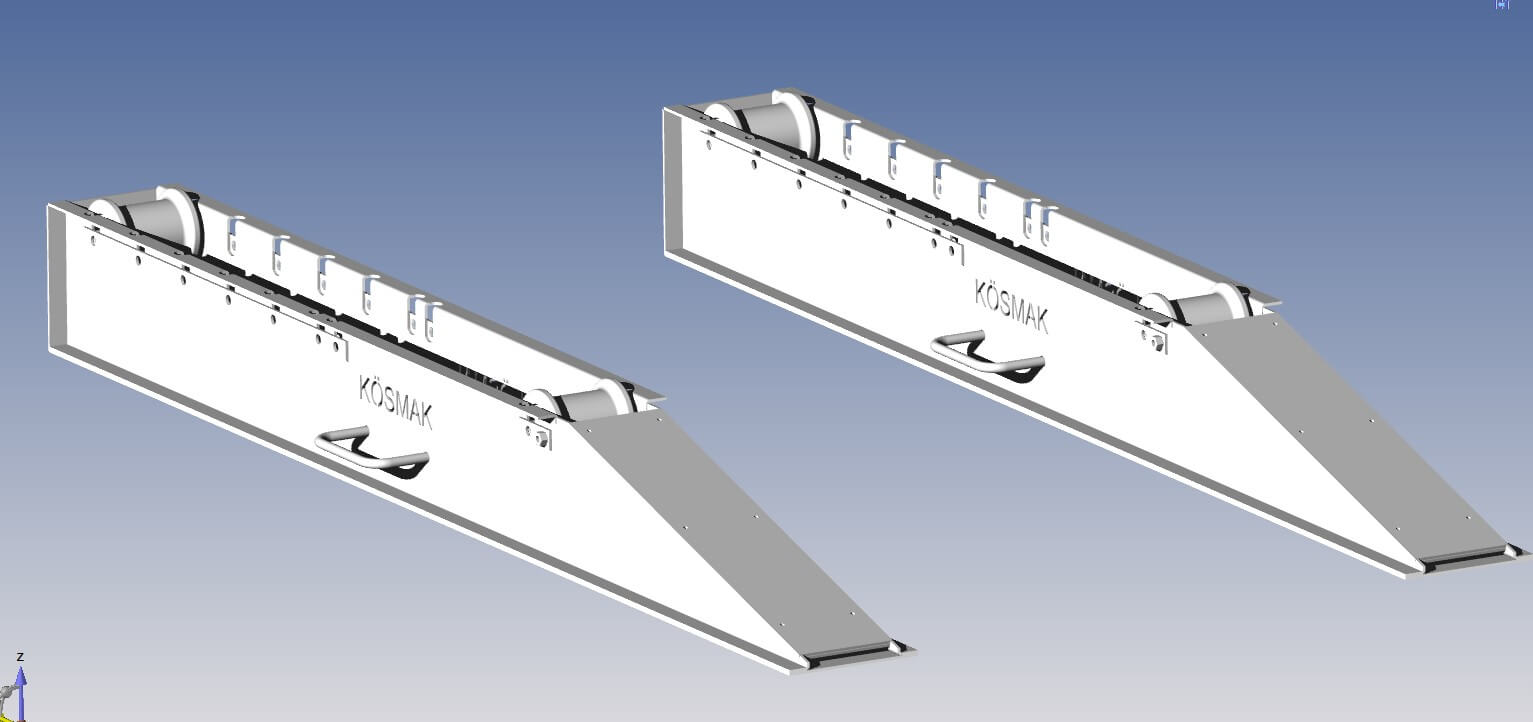

Cable Drum Roller Tool Gallery
Where the Cable Drum Roller Tool Fits in the Installation Workflow
A cable blowing or pulling job starts long before the cable enters the duct. The reel has to pay off correctly, stay stable, and rotate without shock loading or cable drag. That is where this drum roller set becomes useful.
- Supporting cable drums before cable blowing or pulling starts
- Improving reel payoff in workshop preparation and field installation areas
- Reducing cable contact with dirty ground surfaces during handling
- Helping installers manage leftover cable during recoiling operations
- Working alongside cable blowing machines, lubricants, and guiding accessories
In practical terms, the tool is a simple but valuable part of a cleaner cable handling setup. It does not replace the main installation machine. It makes the machine work under better conditions.
Cable Drum Roller Tool Technical Highlights
| Product type | Adjustable cable drum roller / wire drum roller set |
|---|---|
| Main function | Supports cable drum rotation for decoiling and recoiling during installation work |

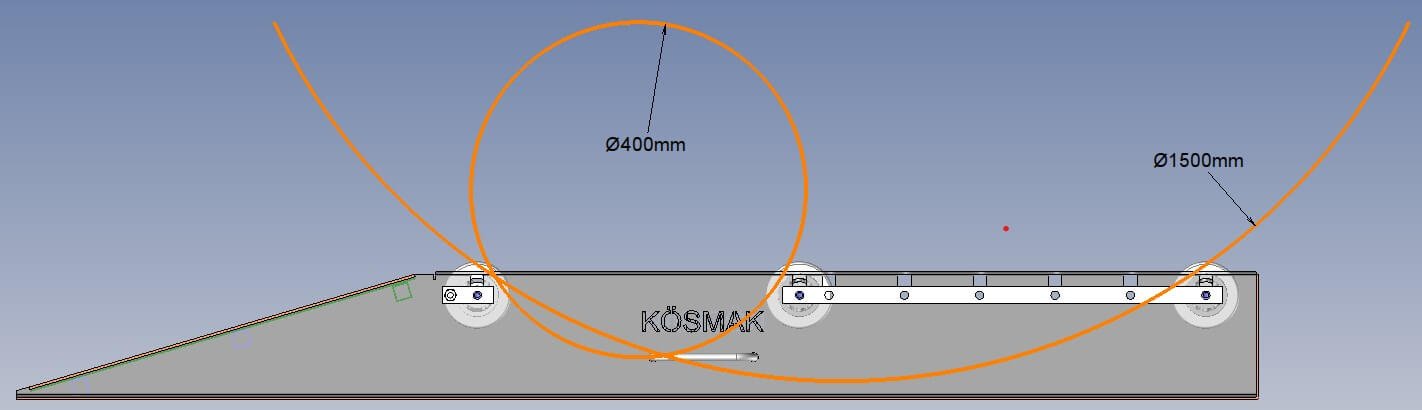

| Drum diameter range | 300 mm to 1350 mm |
| Drum width compatibility | Suitable for different drum widths |
| Adjustment method | Rear roller position can be changed according to drum size |
| Construction | Heavy-duty fabricated painted mild steel |
| Loading style | Ramp-style entry and exit for easier drum loading and unloading |
| Handling | Portable structure for practical transport and site repositioning |
How to Use the Cable Drum Roller Tool
- Place the roller set on firm, level ground with enough space for safe drum loading.
- Adjust the rear roller position according to the diameter of the cable drum to be used.
- Load the drum onto the roller set and check that it sits evenly and rotates freely.
- Align the reel so the cable pays off in a clean direction toward the next handling or installation stage.
- Monitor drum movement during decoiling or recoiling and reposition the setup if the work area changes.
For best results, the cable should pay off smoothly without rubbing on edges, dragging on the ground, or twisting because the reel position was set badly in a hurry.
External References for Reel and Drum Handling
For installers who want broader good-practice references beyond the product itself, these documents are useful reading on cable reel handling, storage, and payoff discipline.
Prysmian Cables and Drums User Guide
General reference for cable drum handling, storage, and avoiding reel-related damage during installation work.
Open referenceCorning Cable Handling and Storage Note
Useful guidance on inspecting reels, storing them correctly, and preventing handling problems during payoff.
Open referenceCorning Installation Handling Precautions
Additional reference on keeping reel orientation correct and preventing cable rubbing or flange-related damage.
Open referenceCable Drum Roller Tool FAQ
What is the Cable Drum Roller Tool used for?
It is used to support cable drums during decoiling and recoiling so the reel can rotate more smoothly during installation preparation and cable handling.
What drum sizes can this cable drum roller support?
The datasheet range is 300 mm to 1350 mm drum diameter. The adjustable rear roller layout helps the same set work with different drum sizes.
Is the drum roller suitable for different drum widths?
Yes. The product is designed for different drum widths as well as different drum diameters, which makes it more flexible in daily field use.
Can this tool be used together with cable blowing machines?
Yes. It is commonly used as a supporting cable handling tool before and during cable blowing operations where stable reel payoff improves workflow.
Is the Cable Drum Roller Tool easy to transport?
Yes. The structure is designed to be practical to carry and reposition, which is useful when setup points change between installation stages.
Why use a cable reel roller instead of paying off from the ground?
A proper drum roller set helps reduce drag, improves drum rotation, keeps the cable path cleaner, and gives installers more control during payout and recoiling.
