HidroFOK Cable Blowing Machine is designed and carefully engineered to blow Fiber Optic Cables and Micro tubes in HDPE ducts. So, Micro Tubes can be blown any quantity of Micro Duct with the suitable pallet. Additonally, Hydraulic motors are making it the most powerful cable blowing machine among our machines. Hydraulic Motor are much stronger compared to Air Motor. Because, we develop our machines to get highly effective and very safe method of fiber optic cable installation.  This fiber optic cable blowing machine is equipped with Hydraulic motors. HidroFOK machine is operated and supported by the hydraulic power unit (Honda GX-270 Benzine Engine).

HidroFOK Cable Blowing Machine Compactness

With its compact and dynamic outfit blowing machine, you can handle cables. Hydraulic type cable blower machine is an ideal choice for location our city (rural area). Also, for long haul cable installation. There it’s the best designed machine which runs on hydraulic power, a heavy duty model hydraulic power pack. You need to change palette group and some parts to modify machine from tube to cable blowing machine or reverse. Hydraulic Power is the equipment to be used with HidroFOK Machine.

Capable of installing the Fiber Optic Cables & Micro Ducts -Fiber optic cable and micro-duct-. For cables Ø 9 to 25 mm and ducts OD 20 to 60 mm. Also, its high effectiveness significantly increases daily production. Also, the pallet drive system ensures excellent cable grip without damage and the Pneumatic system absorbs cable diameter tolerances. In addition to that, its high tech engineered design and structure improve blowing performance. Each and every part of machine are engineered and produced to meet and exceed the expectation of customer requirements.

HidroFOK - Hydraulic Cable Blowing Machine

HidroFOK Machine is a Fiber optic cable blowing machine designed to blow cables into preinstalled telecommunication ducts and micro ducts by using of compressed air. Also, special pallet design allows you to install your cables under muddy field conditions  and Cable Blowing Power will not be decreased.

Besides, it has 3 pallet options as 9-13mm, 14-18mm, 18-22mm and 23-25mm to blow the cables having min 9mm to max. 25mm with a speed of 80m/min. Meanwhile, you can set cable installing speed and direction with hydraulic control valve. A wisely designed exit box will supply highly productive leading for pressured air into telecom ducts. On the other hand, quick air connection plug makes your business easier with an easy plug in method. Also, you can transfer lubricant oil onto pre-installed duct with the shock lubrication system to reduce friction between duct and cables. In this way, your installing power never decrease with two hydraulic motors. Also, you are capable of switching on or off the air entering into telecom ducts with guidance of valves.

HidroFOK - Content

CONSISTING OF:

  • 1set (2pcs) of Pallet
  • 1pcs Duct Lubricant System
  • 2pcs Hydraulic Motor
  • 1pcs Hydraulic Power Unit with Honda GX-270 Benzine Engine
  • 1pcs Exit Box



WITH:

  • 1pcs Operator Guide
  • 1pcs Cable Inserts
  • 1set Duct Inserts
  • 1set Blue Nutring
  • 2m Black Rubber O-Ring
  • 1 pcs Protected Wooden Case with holder
  • 1 pcs Quick Insert Air Jack
  • 1set Tool Kit
  • 1 pcs Box for plastic tools



WITHOUT:

  • Air Cooler
  • Lubricant Oil
  • Air Compressor

HidroFOK - Technical Data



Standard version

2pcs of hydraulic motor drive

Type

HidroFOK

Pallet Options (mm)

9-13 / 14-18 / 19-22 / 23-25

Cable dia. [mm]

9-25

Duct OD [mm]

20-60

Drive unit

Hydraulic Power Unit

Max. oil circulation of 1pcs of motor [liter/min]

20 (at 4 bar)

Torque Nm – Max. Power

8,5

Distance to blow at once max. (Cable Dia. 12mm – Duct Dia. 40mm) (m)

3000

Linear pressure on cable [N/cm]

0-101

Max. speed [m/min]

80

Max. air pressure [bar]

16

Max. water pressure [bar]

23



Hydraulic Power Unit + Cable Blowing Machine



Dimension of apparatus with case l x w x h [mm]

750 x 750 x 1240

Total weight [kg]

178

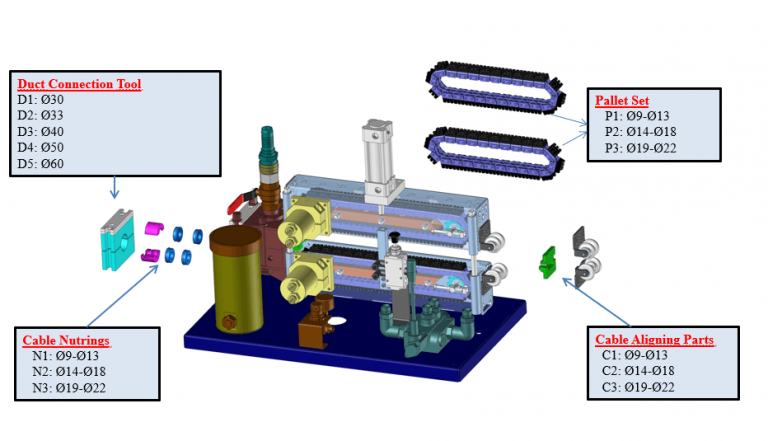

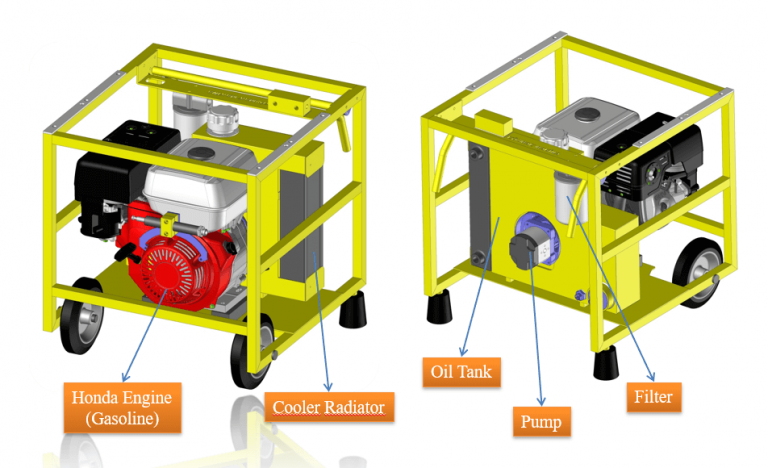

HidroFOK Machine Parts

Hidrofok parts

Accessories

Compressor Capacity Recommendation

Hidrofok

Efficiency

  10,5 m3/min

Working pressure

  12 bar



  • These are minimum compressor requirements. Thus, you may use higher capacity of compressor which can increase the effectiveness. Also, you can overcome the handicap of inproperly installed ducts.

Pallet, Cable Aligning and Duct Options

Pallet Set (mm)

Cable Aligning Tool (mm)

Duct Connection Tool (mm)

P1: 9-13

C1: 9-13

D: 20

P2: 14-18

C2: 14-18

D: 32

P3: 19-25

C3: 19-25

D: 40



D: 50



D: 60

Ordering Code

HidroFOK

P1

C1

D32



Machine

Pallet Set

Cable Aligning Tool

Duct Connection Tool



HidroFOK



P1



C1



D10



P2



C2



D20



P3



C3



D32



D40



D50



D60




Multiple Ordering



Multiple Ordering



Multiple Ordering



P1+2+3



C1+2+3



D10+20+32




1 set of Pallet – 1 Set of Cable Aligning Tool + 1pcs Duct Connection Tool is included.
