What does “19-inch free standing rack” mean?

It refers to a floor-standing cabinet designed for 19-inch rack-mount equipment (EIA-310). Servers, switches, patch panels and PDUs mount on the 19-inch rails inside the cabinet.

Which FS Line sizes are most common for network and server rooms?

For mixed network/server use, 42U with 600×800 mm and 600×1000 mm depths are common. Wider 800 mm cabinets improve cable routing and airflow for dense installations.

What is the standard IP rating of FS Line cabinets?

FS Line is typically supplied as IP20 for indoor IT rooms. IP-rated versions can be supplied on request depending on the project requirements.

Do FS Line cabinets include adjustable 19-inch rails?

Yes. FS Line includes four adjustable 19-inch mounting rails (front and rear) to support flexible equipment depth and installation.

Can I choose color and door options?

Yes. Typical color options are RAL 9005 Black and RAL 7035 Light Grey. Door configurations can be selected depending on the required visibility, security and ventilation.

Why should I use the ordering code on purchase requests?

Ordering codes remove ambiguity (U height, width, depth, and options) and help ensure the cabinet is supplied exactly as requested.

19 Free Standing Rack Cabinet – FS Line | Cost-Effective 19” Rack

FS Line 19 inch free standing rack cabinet drawing showing width, depth and adjustable 19 inch mounting rails.

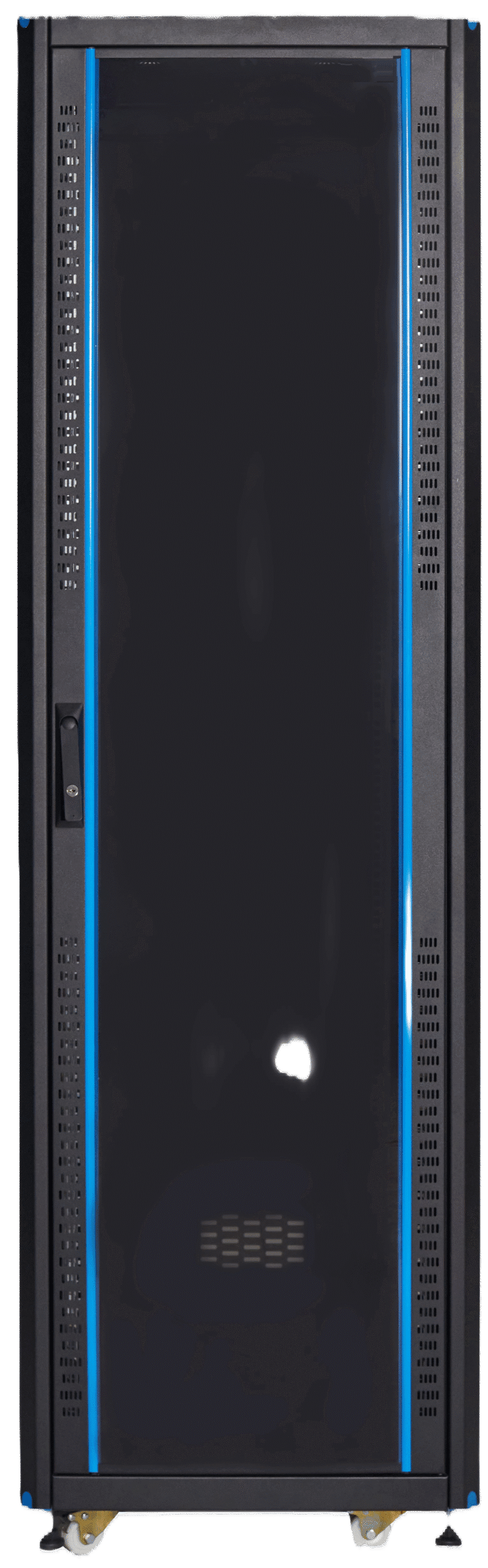

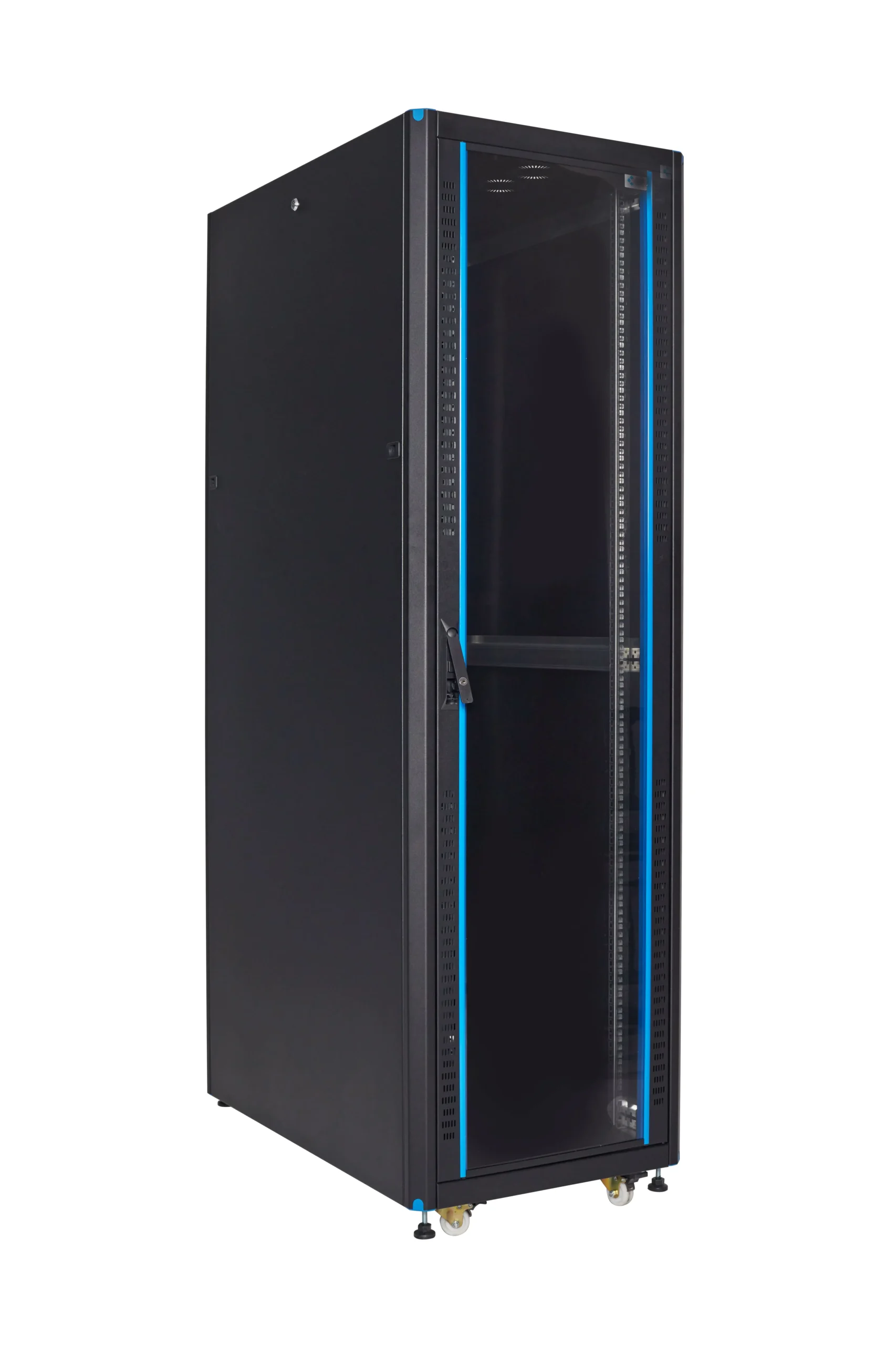

FS Line 19 free standing rack cabinet with tempered glass front door (19 inch floor standing rack cabinet)

Available configurations cover installation depths from 600 to 800 mm, widths 600 or 800 mm, and heights from 11U to 45U in RAL 9005 Black or RAL 7035 Light Grey. Door options include tempered-glass or metal, depending on the application. For project-specific requirements such as IP protection level, door type or dimensions, please contact us.

If cabinet security is a requirement (shared rooms, public buildings, critical sites), see: server cabinet security guidance.

An IP-rated version of the FS Line is available upon request. For IP rating classification, refer to IEC IP ratings overview (IEC 60529).

Applications

A 19 free standing rack cabinet is used to organize and protect rack-mount equipment such as servers, network switches, routers, patch panels and PDUs. Typical applications include:

Data centers and server rooms: structured equipment placement, easier maintenance and controlled airflow.
Networking and telecom rooms: safe housing for switches, routers and passive components.
Industrial and AV environments: organized mounting for control systems, automation and audio/video equipment.

Tip: For other enclosure options, see our 19” rack cabinet range.

19 Free Standing Rack – Features

FS Line cabinets are designed for protection of wiring systems, servers and IT devices in office and system rooms. Ventilation and service access are supported through modular panels and accessory options.

FS Line designed for network and server installations (IP20 as standard)
4 pcs of 19” adjustable mounting rails (Front & Rear)
Front door options: tempered glass or metal
Removable and lockable side panels (2 pcs)
Rear door: solid metal door
Material: sheet steel
Width options: 600 mm / 800 mm
Depth options: 600 / 800 / 1000 mm
Heights: 11U to 45U (multiple U options)
Color options: RAL 9005 Black / RAL 7035 Light Grey
Rear access panel standard
Fan module options: digital or ON/OFF

19 Free Standing Rack – Construction

Frame: cold-rolled steel construction designed for stable rack mounting.

Door: front door with tempered-glass or perforated metal option; rear metal door.

Cable entry: top and bottom entry points for flexible routing.

Mounting rails: 4 pcs adjustable 19” rails compatible with the 19-inch rack standard (EIA-310).

Side panels: opening and lockable for fast service access.

Surface: electrostatic powder coating; RAL 9005 Black or RAL 7035 Light Grey.

IP20 rating: designed according to IEC 60529 and relevant enclosure requirements.

Available sizes (examples):

Heights: 12U, 15U, 16U, 19U, 20U, 25U, 27U, 30U, 33U, 35U, 37U, 39U, 42U, 45U
Width & Depth: 600×600, 600×800, 600×1000, 800×800, 800×1000 mm

Compliance & Standards – Network Cabinets

FS Line cabinets are designed to align with common mechanical, environmental and protection requirements used in IT environments. For formal project documentation, refer to the datasheet and test references below.

Mechanical and environmental test references

EN 61587-1 Mechanical Structures for Electronic Equipment – Tests for IEC 60917 and IEC 60297
Climatic and environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30
Static mechanical load lifting: EN 61587-1/5.2.1
Static mechanical load stiffness: EN 61587-1/5.2.2
Dynamic mechanical load vibration and shock: IEC 60068-2-6, IEC 60068-2-27
Earth bond: EN 61587-1/6.2
Flammability: EN 61587-1/6.3

Degrees of protection (IP code)

IP rating according to IEC 60529 (standard configuration: IP20; higher IP levels available upon request)

Surface treatment and corrosion resistance

Surface treatment: phosphate coating
Corrosion resistance: ISO 9227 and ASTM B117
Painting: RAL 7035 / RAL 9005

Load carrying capacity: up to 600 kg

External references: IEC IP ratings (IEC 60529) | 19-inch rack standard overview (EIA-310 concept)

FS Line packing (flat-pack) video
