CAT 6 F UTP

CAT 6 F UTP (F/UTP) is a shielded Category 6 LAN cable designed for Class E applications up to 250 MHz. The overall foil screen helps reduce EMI in noisy environments while supporting modern Ethernet and PoE/PoE+ deployments.

Category 6 (Class E) F/UTP overall foil Up to 250 MHz 23 AWG bare copper PVC / HFFR / PE 305 / 500 m

Related Cat 6 options: CAT 6 U/UTP · CAT 6 SF/UTP
Category reference: Category 6 overview


CAT 6 F UTP overview

Category 6 F/UTP cables use an overall foil screen plus a drain wire to reduce electromagnetic interference (EMI). This improves signal stability compared to unshielded options in environments like industrial areas, airports and data centers. For simpler office networks with low EMI, CAT 6 U/UTP can be sufficient.

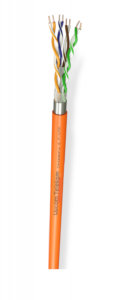

Construction – CAT 6 F UTP

Layer structure

  • 23 AWG bare copper
  • PE insulation
  • Pair separator (PE)
  • Polyester band
  • Tinned copper drain wire
  • Al-PET foil (100% coverage)
  • Outer sheath: PVC / HFFR / PE

Why the foil matters

  • Improves EMI immunity (site dependent)
  • Helps reduce alien crosstalk in dense installations (project dependent)
  • Preferred where power cabling runs close to data cables

Standards referenced in datasheets: ISO/IEC 11801 · TIA cabling standards

Compliance – CAT 6 F UTP

  • EIA/TIA-568-C.2
  • ISO/IEC 11801 (2nd ed)
  • IEC 61156-5, EN 50173-1
  • EN 50288-5-1

Applications

  • IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T
  • PoE / PoE+ deployments (switch dependent)
  • Industrial networks with higher EMI risk
  • Data centers and structured cabling systems
  • Public facilities: airports, transport systems, campus networks

Compare with CAT 5e options: CAT 5e U/UTP · CAT 5e F/UTP

Technical properties

Mechanical properties
Copper weight20 kg/km
Min. bending radius (during draw in)52 mm
Min. bending radius (permanently installed)26 mm
Max. tensile strength100 N
Min. crush resistance1000 N/10 cm
Min. impact10 impacts
Installation temperature0°C to +50°C
Operating temperature-30°C to +70°C
Packing305 m / 500 m
Electrical properties (at 20°C)
Max. conductor resistance9.5 Ω/km
Max. resistance unbalance< 2%
Min. insulation resistance5000 MΩ × m
Mutual capacitance50 pF/m
Max. capacitance unbalance1600 pF/km
Impedance at 100 MHz100 ± 5 Ω
Delay skew45 ns / 100 m
Test voltage1000 V
Operating voltage125 V

For full test limits and acceptance criteria, use the datasheet: Cat6 F/UTP PDF.

Performance table (frequency)

Frequency (MHz)Attenuation (dB/100m)NEXT (dB)PS-NEXT (dB)ACR (dB/100m)PS-ACR (dB/100m)ACRF (dB/100m)PS-ACRF (dB/100m)Return loss (dB)
12.083808582838025
43.673707067706731
106.073706562605730
10019.555524037353225
20028.550472522302722
25032.045422522221922
30033.040371512201722
40039.0403774201720

Sheath & Euroclass options

OptionOuter sheathEuroclassCable weightFlame retardancyCorrosive gasesSmoke density
F/UTP PVCPVCEca51 kg/kmEN 60332-1-2N/AN/A
UTP HFFRHFFRDca52 kg/kmEN 60332-1-2EN 50267-2-3EN 61034-2
F/UTP PEPEFca45 kg/kmN/AN/AN/A

If your project requires CPR class selection, share the required Euroclass and installation country in your RFQ.

Consider when ordering CAT 6 F UTP

  1. Quantity & length: confirm km/box requirement (305 m or 500 m).
  2. Sheath type: PVC vs HFFR vs PE based on safety and environment.
  3. EMI conditions: F/UTP is preferred near power cables or industrial noise.
  4. Compliance needs: ISO/IEC and TIA requirements, plus local rules.
  5. Installation plan: avoid excessive bends; respect radius and pulling limits.

Storage & maintenance

  • Store in dry, clean, cool areas away from heat, moisture, and chemical exposure.
  • Keep packaging intact until installation to prevent jacket damage.
  • Avoid stacking that can deform reels/boxes and affect performance.
  • Inspect for physical damage before deployment; test links after termination.

Safety instructions

  1. Use correct tools (stripper, crimp/termination tools, testers).
  2. Do not exceed pulling tension or bend radius.
  3. Maintain separation from power circuits where required.
  4. Ensure proper grounding practices when shielded systems are used (site dependent).
  5. Turn off power before working near energized circuits.

FAQ – CAT 6 F UTP

What is the difference between CAT 6 F UTP and CAT 6 U/UTP?

CAT 6 F/UTP includes an overall foil shield to reduce EMI. CAT 6 U/UTP is unshielded and usually preferred in low-noise office environments.

Is CAT 6 F UTP suitable for PoE/PoE+?

Yes, it is commonly used for PoE/PoE+ deployments. Final suitability depends on installation practices, bundle sizes, and network equipment.

When should I choose CAT 6 SF/UTP?

For higher EMI exposure or demanding installations, CAT 6 SF/UTP provides stronger shielding than F/UTP (configuration dependent).

Which jacket should I select: PVC, HFFR, or PE?

PVC is standard indoor; HFFR is selected for low smoke/halogen-free needs; PE is typically used for specific environmental requirements. Choose based on project rules and installation location.


Request a Quote

Send sheath type (PVC/HFFR/PE), required CPR Euroclass (if any), packing length (305/500 m), quantity and destination. Email: info@upcom.com.tr
