U-DQ(ZN)H(SR)H · Mica barrier · Corrugated steel armor

Fire Resistant Fiber Optic Cable

This fire resistant fiber optic cable combines a gel-filled loose tube, mica fire barrier, glass-yarn reinforcement, inner LSOH sheath, corrugated steel tape and outer LSOH jacket. It is intended for projects requiring a documented fire-performance specification.

Specify the required circuit-integrity test, duration and installation arrangement when requesting a quotation. A low-smoke jacket and a flame-retardancy test do not by themselves establish a circuit-integrity duration.

2–24Published fiber counts
MicaFire barrier
Steel tapeMechanical armor
LSOHInner and outer jackets

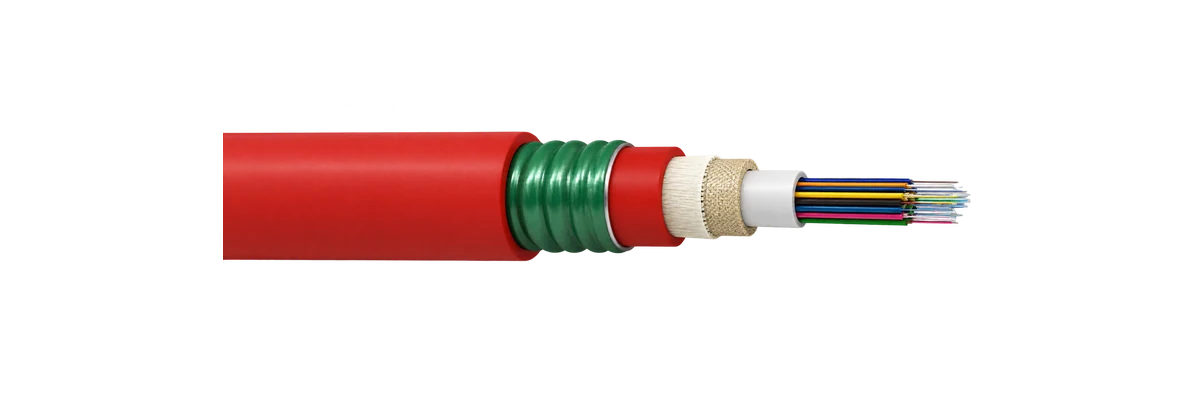

Fire resistant fiber optic cable construction with loose tube and steel armor
U-DQ(ZN)H(SR)H · Mica barrier · Corrugated steel armor

Fire Resistant Cable Construction

Layer / optionPublished specification
Optical fibersSinglemode and multimode configurations; specify the exact grade
Central tubePBT loose tube with thixotropic gel
Fire barrierMica tape
Tensile reinforcementGlass yarn
Inner jacketLSOH
ArmorCorrugated steel tape
Outer jacketUV-resistant LSOH

The linked PDF identifies this construction as U-DQ(ZN)H(SR)H. Fiber options listed include G.652.D, G.655, G.657.A1/A2 and OM1–OM4, subject to the selected configuration. State the required fiber grade, attenuation specification and operating wavelengths in the quotation request.

Published Fiber Counts and Cable Dimensions

Fiber countTube diameterCable diameterApproximate mass
22.8 mm11.7 mm180 kg/km
4 / 6 / 82.8 mm11.7 mm185 kg/km
123.4 mm12.2 mm200 kg/km
16 / 20 / 244.2 mm13.0 mm220 kg/km

Confirm the fiber grade and ordered construction with the final datasheet and drum schedule. The dimensions and mass above are the published configurations; do not apply them to a different cable structure.

Installation and Environmental Limits

ParameterPublished value
Minimum bend radius, operation20 × cable diameter
Minimum bend radius, fixed condition10 × cable diameter
Crush test2500 N / 100 mm for 15 minutes
Impact test10 N·m; 3 impacts; R = 300 mm
Storage and transport temperature0 to +70 °C
Installation temperature−30 to +60 °C
Operating temperature−20 to +70 °C
Drum lengths2 or 4 km ±5%, as specified

The PDF lists tensile limits using cable-weight-dependent formulas, with minimum values of 3000 N during installation and 1000 N during operation. Obtain the confirmed tensile limit for the ordered construction before planning a pull. Follow the bend limit appropriate to the installation stage.

Fire Performance and Required Test Documents

Performance aspectStandard referenced in PDFOrdering confirmation
Circuit integrity under fireIEC 60331-25Request the test report, achieved duration and applicable cable construction
Flame propagationIEC 60332-1Confirm the ordered construction and required test criteria
Smoke emissionIEC 61034 / EN 50268Request the applicable report where required
Halogen / corrosive gas assessmentIEC 60754 / EN 50267Confirm the applicable part and measured results

Confirm the required fire-survival duration with a product-specific test report. Request the achieved duration, test conditions and exact tested construction in the supporting report. For regulated installations, request the current declarations and supporting reports required by the project.

Specify Fire Resistant Fiber Cable for Your Project

  1. Required fiber count, singlemode/multimode grade and optical limits.
  2. Circuit-integrity test standard, required duration and report acceptance criteria.
  3. Route, support system, environmental exposure and installation method.
  4. Mechanical requirements, pulling plan, drum lengths and connector/splice arrangement.
  5. Smoke, halogen, flame-propagation and applicable declaration requirements.

Provide the project fire specification and request written confirmation of the exact supplied cable construction. Armor and UV resistance alone do not establish suitability for every burial or wet-route installation.
