Wall Mount Rack Cabinet

19_ Wall Mount Rack Cabinet
W-Line

W-Line Wall Mount Rack Cabinet (19″ wall mounted data cabinets) are suitable in the offices for limited U height is required. A 19″ wall mount rack cabinet is a type of equipment rack used for mounting and organizing servers, network equipment, and other electronic devices. It typically has a 19-inch wide rack mountable frame, and is designed to be mounted on a wall. These cabinets typically have a locking door to secure the equipment inside and may also have ventilation and cable management features to help keep the equipment cool and organized. They are often used in data centers, network closets, and other commercial or industrial settings.

They generally have IP20 protection. Having two adjustable mounting angles in depth. Additional mounting rails can be ordered as accessory. Wall mount rack 4u is also available where the space is limited. Front door with glass door and perforated metal door option is available. Having removable and lockable 2 side panels and metal rear panel Load carrying capacity is 80 kg in case used as a free-standing and load carrying capacity can go up to 200 kg with leveling feet.. W-Line Serie of cabinets are professional solution that meet even exceed the needs of medium sized installation. W-Line serie can easily be transformed into free standing cabinet with the help of 4 holes on the bottom corners of cabinet for castor or leveling feet.

Color options are RAL 9005 Black, and RAL 7035 Light Grey, with fine wrinkle soft touch paint. This product can be transformed into a hinged wall mount rack (also called double section 19″ wall mounted rack cabinet). Vented top cover provides passive air circulation via convection. There is a double vented fan hole suitable for optimum fan cooling. Two adjustable angled rails could be moved forward and backward. Door is having a glass door. It is lockable and removable. Side Panels are removable and lockable. Enabling you for an easy access to equipment and gives better look and improved security Back Panel; could be removable and be mountable on the wall easily. There are two brushed cable entry at W-Line 1 on Bottom 1 on Top.

W-Line serie is space efficient and are perfect choice for smaller installations or to house system distribution points. A few versions of this serie are available to meet a wide range of your project. Double section types are great for controlled spaces such as utility rooms and some models can be fixed over conduit and similar obstructions. Enclosed models provide security to protect equipment in more open spaces from tampering, dust, and other hazards, and many styles have hinged center sections to provide enhanced rear access to equipment and wiring.

19″ W-Line Wall Mount Rack Cabinet – Feature

Some common features of 19″ wall mount rack cabinets include:

  • Rack-mountable frame: The cabinet has a frame with vertical mounting rails that are spaced 19 inches apart, allowing for the installation of standard rack-mountable equipment.
  • Locking door: The cabinet has a door that can be locked to secure the equipment inside, which helps prevent unauthorized access.
  • Ventilation: The cabinet may have ventilation holes or fans to help keep the equipment cool and prevent overheating.
  • Cable management: The cabinet may have cable management features such as grommets, rings, or trays to help organize and route cables.
  • Removable side panels: Some cabinets have removable side panels that can be easily removed to provide access to the equipment and cable management.
  • Adjustable mounting rails: Some cabinets have adjustable mounting rails that can be moved to accommodate different depths of equipment.
  • Glass door: Some of the cabinet has a glass door, which allows for a clear view of the equipment inside.
  • Size: The cabinet is 19 inches wide, which allows for the installation of standard rack-mountable equipment.
  • Load capacity: The cabinet is designed to accommodate a specific load capacity, based on the weight of the equipment and the strength of the cabinet.
  • Color and design: The cabinet is available in various colors and designs, which can be chosen depending on the user’s preference.





Features of 19″ W-Line Wall Mount Rack Cabinet



  • Wide range of sizes from 7U to 20U
  • W= 550 mm ,D= 450 mm, and 600 mm options
  • Robust static design, glass front door, with barrel lock.
  • Removable and lockable 2 side panels with barrel lock for an easy access.
  • Material: Sheet steel
  • Heights: Available 5 different U heights : 4U, 7U, 9U, 12U, 15U, 19U and 20U
  • Glass front door, locking rear access panel standard
  • Durable design
  • Space efficient
  • Digital and Manual Thermostatic Fan module optional
  • Includes front 19″ rails.
  • Color options: RAL 9005 Black or RAL 7035 Light Grey
  • Hinged wall mount rack option is available

Applications

19″ wall mount rack cabinets are often used in a variety of commercial and industrial settings, including:



  • Data centers: These cabinets are often used to organize and secure servers and other network equipment in data centers.
  • Network closets: They are used to organize and secure networking equipment in network closets, such as switches, routers, and modems.
  • Labs and research facilities: They are used to organize and secure electronic equipment in labs and research facilities, such as test equipment, measurement devices, and scientific instruments.
  • Telecommunications: They are used to organize and secure telecommunications equipment, such as PBX systems and cellular base stations.
  • Industrial settings: They are used to organize and secure electronic equipment in industrial settings, such as control systems, automation equipment, and process control devices.
  • Retail and commercial settings: They are used to organize and secure electronic equipment in retail and commercial settings, such as point-of-sale terminals, ATM machines, and digital signage.
  • Educational institutions: They are used to organize and secure electronic equipment in schools, colleges, and universities, such as computer labs and media centers.
  • Government and military: They are used to organize and secure electronic equipment in government and military facilities, such as command and control centers, and secure communications.

Wall Mount Rack Cabinet – Construction

19″ wall mount rack cabinets are typically constructed from metal, such as steel or aluminum, to provide strength and durability. They may have a powder-coated or anodized finish to protect against rust and corrosion. The frame of the cabinet is typically made up of vertical mounting rails, which are spaced 19 inches apart to accommodate standard rack-mountable equipment. The cabinet will also have a door, which can be locked to secure the equipment inside. The door may be made of metal or glass, with glass doors providing a clear view of the equipment within the cabinet. Some of the cabinets also have additional construction features like removable side panels, which allow for easy access to the equipment and cable management, and also have adjustable mounting rails to accommodate different depths of equipment.





Door: Front door with glass door and perforated metal door option is available.

Material: A1 quality steel HDG, body thickness is 2 mm, mounting rails are 1,5 mm thick.

Cable Entry: On Top and bottom cable brushed entry.

Mounting Rail: 2 pcs of 19inch adjustable. Compatible with standard international 19 inch standard.

Side Panels: Opening, lockable.

Painting: Impact-resistant, Electrostatic powder painting. Color options are RAL 9005 Black & RAL 7035 White.

Rear Panel: Can be removable and be mountable on the wall easily. W-Line Wall mount cabinet can easily be transformed to double section 19″ wall mounted cabinet in a second with the help of its well-engineered construction. You shall order the rear section for that option.

IP 20 rating: IP20 according to EN61587-1, IEC60529. Protected against solid objects larger than 12,5 mm in diameter.

Options for

Height: 4U, 7U, 9U, 12U, 15U, 19U, 20U

Width & Depth:
550x450mm
550x600mm

Wall Mount Data Cabinet – Drawing

Ekran-Resmi

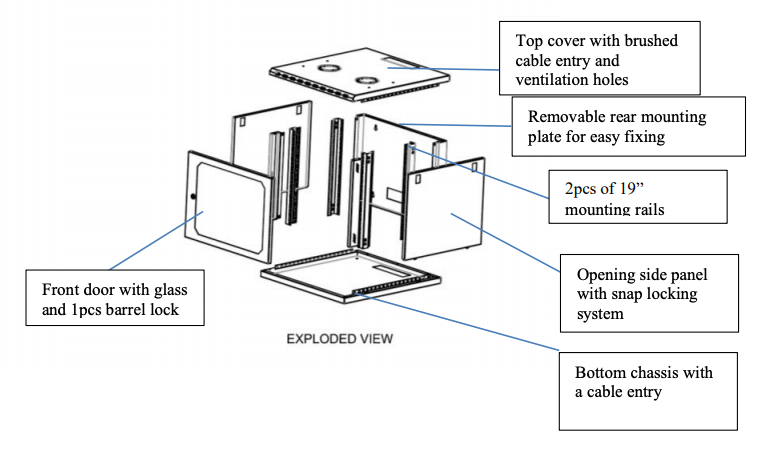

Exploded View of Wall Mount Cabinet
Ekran-Resmi-2020-08-26-19.49.58

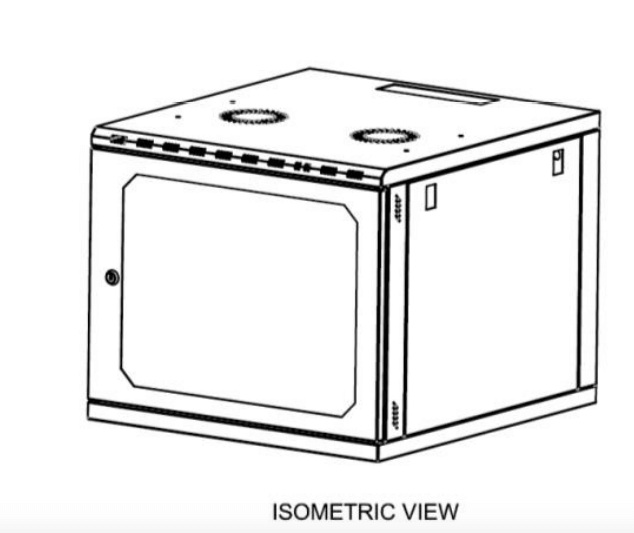

Isometric View of Wall Mount Cabinet
Ekran-Resmi-2020-08-26-19.49.49

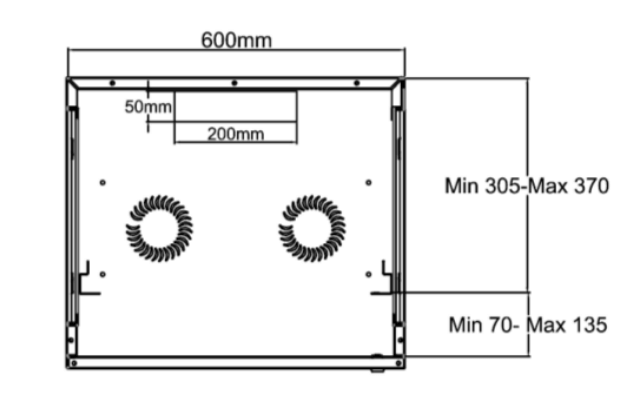

Max. Device Mounting Dimension of wall mount cabinet

Hinged Double Section Option

This option is available with the same construction of W-Line serie with small revisions. Rear metal panel is replaced with additional section which has 160mm depth depth.

Rear section have hanging holes and heavy duty hinges. This section are easily removable with hinged, easy-locking mechanism, opening with 105º, and opening direction is right from left. Rear section includes extra brushed cable entrance panel on top and bottom.

Compliance

There are several international standards and compliances that 19″ wall mount rack cabinets may need to meet, depending on the specific application and location. Some examples include:

  • EIA-310-D: This is a standard developed by the Electronic Industries Alliance (EIA) that specifies the mechanical and electrical characteristics of 19-inch rack-mountable equipment and cabinets. This standard defines the size, spacing, and strength of the mounting rails, as well as other features such as ventilation and cable management.
  • IEC 60297: This is an international standard for mechanical structures for electronic equipment, it covers the general requirements for cabinets, racks, and subracks, including the mechanical and environmental aspects and it covers all the aspects related to the mechanical design of the cabinet.
  • UL: UL (Underwriters Laboratories) is a safety certification organization that tests and certifies products for compliance with safety standards. UL has several standards for cabinets, including UL 2416 for data centers, UL 1275 for industrial control equipment, and UL 2444 for electronic enclosures.
  • RoHS: RoHS (Restriction of Hazardous Substances) is a European Union directive that restricts the use of certain hazardous materials in electronic products. RoHS applies to the 19″ wall mount rack cabinets and can be used to ensure that the cabinet is free of lead, mercury, cadmium, and other hazardous materials.
  • TIA/EIA-942: TIA/EIA-942 is a standard developed by the Telecommunications Industry Association (TIA) and Electronic Industries Alliance (EIA) that defines the requirements for data center infrastructure. This standard covers the layout, design, and installation of data center equipment, including 19″ wall mount rack cabinets.
  • NEBS: NEBS (Network Equipment Building System) is a set of requirements for telecommunications equipment developed by Bell Labs and the Telecommunications Industry Association (TIA) to ensure that the equipment can withstand environmental stresses, such as fire, earthquakes, and electromagnetic interference (EMI). 19″ wall mount rack cabinets may need to meet these requirements if they will be used in telecommunications applications.
  • It’s important to note that these standards and compliances may vary depending on the country or region where the equipment will be used, and the end user should always check the specific requirements before purchasing a cabinet.

European standards and compliances


There are several European standards and compliances that 19″ wall mount rack cabinets may need to meet, depending on the specific application and location. Some examples include:

  • EN 60950: This is a European standard for safety of information technology equipment, including servers, storage systems, and other electronic equipment. 19″ wall mount rack cabinets that are used to house IT equipment may need to meet this standard to ensure the safety of the equipment and users.
  • EN 60529: This is a European standard that defines the degrees of protection provided by enclosures (IP Code). The standard specifies the environmental protection that an enclosure must provide against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water.
  • EN 62208: This is a European standard for the safety

W-Line Wall Mount Rack Cabinet Standards and Compliances;
  • ISO 9001:2000 TSE:EN 61587-1 Mechanical Structures For Electronic Equipment – Tests For IEC 60917 And IEC 60297
  • Climatic and Environment: EN 61587-1/4.2, IEC60068-2-1, IEC60068-2-2, IEC60068-2-30,
  • Static Mechanical Load Lifting: EN61587-1/5.2.1
  • Static Mechanical Load Stiffness: EN61587-1/5.2.2
  • Dynamic Mechanical Load Vibration and Shock, Impact: EN61587-1/5.3.1, EN61587-1/5.3.3, IEC60068-2-6, IEC60068-2-27,
  • Earth Bond: EN61587-1/6.2
  • Flammability: EN61587-1/6.3
  • Degrees Of Protection Provided By Enclosures (Ip Code): IP20 or IP55, EN61587-1/6.4
  • Surface Treatment: Fosfat coating
  • Corrosion Resistance: ISO9227 and ASTM B 117-85
  • Painting: Ral7035 / Ral9005 ( wall mounted data cabinet)
Rack cabinet standards

Choosing the right wall mount rack cabinet

When choosing a 19″ wall mount rack cabinet, there are several factors to consider to ensure that it meets the specific requirements of the application and location. Some key factors to consider include:

  • Load capacity: The cabinet should have a load capacity that is sufficient to support the weight of the equipment that will be installed in it. It’s important to check the weight of the equipment and ensure that the cabinet can support it.
  • Size: The cabinet should have the appropriate size to accommodate the equipment that will be installed in it. It’s important to check the dimensions of the equipment and ensure that it will fit in the cabinet.
  • Standards and compliances: The cabinet should meet the appropriate standards and compliances for the specific application and location. It’s important to check the relevant standards and compliances and ensure that the cabinet meets them.
  • Ventilation and cable management: The cabinet should have appropriate ventilation and cable management features to keep the equipment cool and organized. It’s important to check the ventilation and cable management features and ensure that they are sufficient for the specific application.
  • Locking door: The cabinet should have a locking door to secure the equipment inside. It’s important to check the locking mechanism and ensure that it is secure.
  • Removable side panels: The cabinet should have removable side panels that provide easy access to the equipment and cable management. It’s important to check the removable side panels and ensure that they can be easily removed and reattached.
  • Adjustable mounting rails: The cabinet should have adjustable mounting rails that can accommodate different depths of equipment. It’s important to check the adjustable mounting rails and ensure that they can be adjusted to fit the equipment that will be installed in the cabinet.
  • Color and design: The cabinet should have a color and design that is appropriate for the specific application and location.
  • Brand and Quality : It’s important to choose a reputable brand and high-quality cabinet to ensure that it will be durable and reliable.
  • It’s important to note that these factors will vary depending on the specific application and location, and the end user should always check the specific requirements before purchasing a cabinet.

Safety Instructions

The specific safety instructions for a 19″ wall mount rack cabinet will depend on the manufacturer and model, but in general, some important safety precautions to take when installing and using a wall mount rack cabinet include:



  1. Be sure to secure the cabinet to the wall using the appropriate hardware and anchors, as specified by the manufacturer.
  2. Do not overload the cabinet beyond its maximum weight capacity.
  3. Do not place heavy items on the top of an unsecured cabinet, as it may tip over.
  4. Be sure to properly ground the cabinet to prevent electrical hazards.
  5. Use caution when working on or near the cabinet, as the equipment inside may be heavy and/or sharp.
  6. Use appropriate Personal Protective Equipment (PPE) when working with the cabinet.
  7. Follow the manufacturer’s instructions for proper installation, operation, and maintenance of the cabinet.
  8. Have a professional electrician to wire the cabinet if you have no prior experience.
  9. Keep the cabinet in a well-ventilated area.
  10. Follow all local codes and regulations when installing the cabinet.

Tip

Here are a few tips when working with a 19″ wall mount rack cabinet:

  1. Plan ahead: Before installing the cabinet, make sure you have a clear understanding of the equipment that will be placed inside and the amount of space required. This will help you select the right size cabinet and ensure that it will fit in the desired location.
  2. Level the cabinet: Make sure the cabinet is level during installation. This will prevent the cabinet from becoming unstable and ensure that the doors and drawers function properly.
  3. Cable management: Keep cables organized and tidy inside the cabinet to avoid damage to the cables, and to ensure proper airflow.
  4. Proper ventilation: Make sure the cabinet is properly ventilated to prevent overheating of the equipment inside.
  5. Regular maintenance: Regularly check the cabinet for any signs of wear and tear, and perform any necessary maintenance to ensure the cabinet remains in good condition.
  6. Label the equipment: It is useful to label the equipment inside the cabinet, so you can quickly identify what is inside and where it is located.
  7. Keep the cabinet locked: To prevent unauthorized access to the equipment inside, it is recommended to keep the cabinet locked.
  8. Use the appropriate tools: Use appropriate tools when working with the cabinet to avoid damaging it or the equipment inside.
  9. Keep the cabinet clean: Clean the cabinet regularly to prevent dust buildup, and to maintain the professional appearance of your equipment room.
  10. Use a surge protector: Use a surge protector to protect the equipment inside the cabinet from power spikes.


Contact us for the details of 19″ hinged wall mount rack and wall mount rack 4u options.
