Field-deployable fiber optic cable

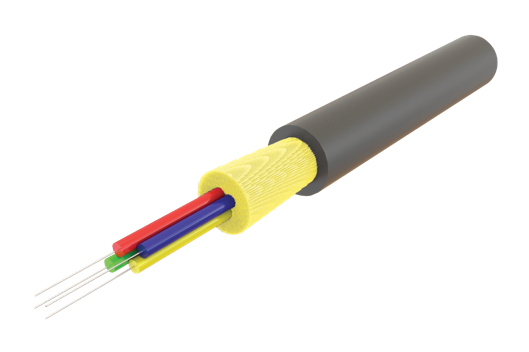

Tactical Fiber Optic Cable | 5.8 mm Tight-Buffer Design
Tactical fiber optic cable is built for rapid deployment, repeated winding and dependable transmission where ordinary indoor cable constructions are not enough. This 5.8 mm tight-buffer design is a practical fit for outside broadcast, temporary field links, security infrastructure and other harsh outdoor routes that demand flexibility, crush resistance and fast field termination.
The construction combines thermoplastic 900 µm tight-buffered fibers, aramid yarn reinforcement and a rugged polyurethane outer jacket to support repeated handling, reliable connector assembly and stable performance in demanding environments.
5.8 mm
Compact cable diameter
2000 N
Max tensile during installation
-40°C to +85°C
Installation temperature range
≤0.36 / ≤0.25 dB/km
1310 / 1550 nm attenuation
Overview of the 5.8 mm Tight-Buffer Design
This cable is designed for projects where the route is temporary, deployment speed matters and the cable may be handled, reeled and recovered more than once. Compared with ordinary indoor constructions, the rugged outer jacket and aramid-based strength design make it better suited to repeated field movement, abrasion and route pressure.
In the broader UPCOM range, this product sits inside the Fiber Optic and Data LAN Cables cluster and pairs naturally with educational pages such as What Is Fiber Optic Cable? when buyers need the wider cable family context.
Why this construction is different
- Tight-buffered fibers support direct connector assembly and easier end preparation.
- Aramid yarn improves tensile handling and field termination strength.
- Polyurethane outer jacket supports abrasion resistance and outdoor durability.
- Compact diameter helps reel handling, temporary routing and rapid deployment.
- UV-resistant outer construction makes the cable more suitable for exposed outdoor use.
Application Areas for Tactical Fiber Optic Cable
This tactical cable is strongest where you need a deployable optical link rather than a permanently installed building cable. It is well suited to fast setup, repeated handling and route conditions where impact, crush or abrasion can become a problem.
- Military and tactical field communication links
- Outside broadcast and temporary event connectivity
- Security systems and rapid perimeter deployment
- Instrumentation and control networks
- Pipeline and industrial asset monitoring
- Oil and gas communication routes
- Temporary outdoor audio/video transmission paths
When to review another UPCOM cable type
Choose this product when repeated deployment and harsh-route handling matter more than permanent indoor cabling convenience. For FTTH last-meter sections, see Drop Fiber Cable. For compact multi-fiber indoor or transition routing, see Mini-Breakout Cable.
Construction and Deployment Benefits
Field handling advantages
- High flexibility for repeated deployment and recovery
- Improved crush resistance for demanding outdoor routes
- Good abrasion and cut resistance
- Ripcord support for easier jacket removal
- Metal-free construction
- High chemical resistance against acids and alkalies
Termination and service advantages
- Suitable for direct connector assembly
- Fast and robust field termination logic
- High tensile load capability for termination strength
- Stable performance across high temperature ranges
- Practical choice where cable protection must travel with the route
Technical Specifications of This Tactical Fiber Optic Cable
Mechanical and environmental data
| Parameter | Value |
|---|---|
| Tight-buffer diameter | 0.9 mm |
| Cable diameter | 5.8 mm |
| Approx. cable weight | 25 ±2.5 kg/km |
| Max. tensile strength | 2000 N during installation / 1500 N in service |
| Min. bending radius | 90 mm during installation / 60 mm in service |
| Crush resistance | 4000 short-term / 1000 N/dm long-term |
| Flexing | 20,000 cycles at r=80 mm, 15 N / 1,000 cycles at r=40 mm, 15 N |
| Repeated bending | 20,000 cycles at r=40 mm with 1 kg load |
| Temperature range | -40°C to +85°C during installation / -40°C to +75°C in service |
| Test references | IEC 60794-1-2 E1, E3, E6, E11 and IEC 60794-1-22 F1 |
Construction and optical data
| Parameter | Value |
|---|---|
| Fiber structure | Thermoplastic 900 µm tight-buffer tubes with aramid yarn reinforcement |
| Outer jacket | Rugged black polyurethane outer jacket |
| Fiber type in current datasheet | SM |
| Core diameter | 9.0 ±0.5 µm |
| Cladding diameter | 125 ±5.0 µm |
| Primary coating diameter | 245 ±10 µm |
| Attenuation @1310 nm | ≤ 0.36 dB/km (max. in cable) |
| Attenuation @1550 nm | ≤ 0.25 dB/km |
| Datasheet | Download current tactical cable PDF |
Optical values above are taken from the current datasheet snippet and should remain aligned with the downloadable PDF used on the page.
Comparing UPCOM Cable Options
| UPCOM cable | Best fit | Why you choose it |
|---|---|---|
| Tactical Fiber Optic Cable | Repeated field deployment, outside broadcast, harsh temporary outdoor routes | Compact 5.8 mm construction, tight-buffer handling, aramid strength and rugged outer jacket |
| Mini-Breakout Cable | Compact indoor distribution, easier subunit management, direct connectorization | Good when handling convenience and indoor routing matter more than harsh field redeployment |
| Drop Fiber Cable | FTTH access and last-drop sections | Better aligned with access-network and drop-path routing than tactical redeployment scenarios |
If the selection decision depends on route type, bend handling or termination method, this page also complements the Fiber Optic Cable Installation Guide and the supporting technical article on tight-buffered and loose-tube cables.
How to Specify Tactical Fiber Optic Cable for RFQ
- Define the route: confirm whether the cable will be repeatedly deployed, reeled and recovered or installed for longer-term outdoor service.
- Confirm the optical need: specify fiber type, wavelengths, connector plan and whether the project requires single-mode transmission at 1310 nm / 1550 nm.
- Check mechanical stress: validate tensile load, bending radius, crush exposure, abrasion risk and operating temperature before final selection.
- Decide the termination method: if fast field termination or direct connector assembly matters, keep that requirement explicit in the RFQ.
- Match the surrounding solution: if the deployed cable ends inside critical equipment rooms, support the route with data center environmental monitoring to watch temperature and humidity around active equipment.
Practical note: When the project is not truly tactical or re-deployable, start with the wider fiber optic cable range and narrow the selection by installation method, environment and termination strategy.
Standards and Reference Links
This page highlights route-relevant values used in tactical field selection. For general optical fibre cable test methodology, see IEC 60794-1-2. For general single-mode optical fibre and cable characteristics, see ITU-T G.652.
FAQ
What is a tactical fiber optic cable used for?
It is used where the cable may be deployed, handled and recovered in demanding environments such as outside broadcast, field communication, security and industrial monitoring routes.
Why does this product use tight-buffer construction?
Tight-buffered fibers support direct connector assembly and practical end preparation, which helps in field termination and repeated deployment workflows.
Is this cable suitable for outdoor use?
Yes. The rugged outer jacket, aramid reinforcement and UV-resistant outdoor design make it suitable for harsh outdoor routing where standard indoor cable types are not enough.
Which mechanical values matter most during selection?
The key checks are cable diameter, tensile strength during installation, bending radius, crush resistance, temperature range and the real handling conditions of the route.
Where can I find the datasheet?
You can download the current PDF directly from the page: 4F Tactical Cable Datasheet PDF.
