19 Inch Wall Mount Rack Cabinets - Alpine Line
Alpine Line wall mount rack cabinet options combine 19-inch mounting, 7U to 20U rack heights and three external depths: 450, 560 and 600 mm. Compare the individual order codes, dimensions and weights below to select an indoor network cabinet with a 120 kg load capacity.
Choose by rack height and depth
Specify U space for the equipment and cable management first, then check the cabinet footprint and equipment clearances. Each configuration has its own UPC-ALPI order code and downloadable datasheet.
| 450 mm depth | 553 mm external width |
|---|---|
| 560 mm depth | 553 mm external width |
| 600 mm depth | 600 mm external width |
| Heights | 7U, 9U, 12U, 16U, 20U |
Alpine Line Models and Individual Datasheets
553x450 mm Wall Mount Rack Cabinets
| Order code / model | Rack | External H | Internal h | Weight | Datasheet |
|---|---|---|---|---|---|
| UPC-ALPI-7U450 | 7U | 371 | 314 | 14 kg | UPC-ALPI-7U450 PDF |
| UPC-ALPI-9U450 | 9U | 460 | 403 | 16 kg | UPC-ALPI-9U450 PDF |
| UPC-ALPI-12U450 | 12U | 593 | 536 | 19 kg | UPC-ALPI-12U450 PDF |
| UPC-ALPI-16U450 | 16U | 771 | 714 | 24 kg | UPC-ALPI-16U450 PDF |
| UPC-ALPI-20U450 | 20U | 949 | 892 | 29 kg | UPC-ALPI-20U450 PDF |
553x560 mm Wall Mount Rack Cabinets
| Order code / model | Rack | External H | Internal h | Weight | Datasheet |
|---|---|---|---|---|---|
| UPC-ALPI-7U560 | 7U | 371 | 314 | 16 kg | UPC-ALPI-7U560 PDF |
| UPC-ALPI-9U560 | 9U | 460 | 403 | 18 kg | UPC-ALPI-9U560 PDF |
| UPC-ALPI-12U560 | 12U | 593 | 536 | 22 kg | UPC-ALPI-12U560 PDF |
| UPC-ALPI-16U560 | 16U | 771 | 714 | 28 kg | UPC-ALPI-16U560 PDF |
| UPC-ALPI-20U560 | 20U | 949 | 892 | 34 kg | UPC-ALPI-20U560 PDF |
600x600 mm Wall Mount Rack Cabinets
| Order code / model | Rack | External H | Internal h | Weight | Datasheet |
|---|---|---|---|---|---|
| UPC-ALPI-7U600 | 7U | 371 | 314 | 19 kg | UPC-ALPI-7U600 PDF |
| UPC-ALPI-9U600 | 9U | 460 | 403 | 21 kg | UPC-ALPI-9U600 PDF |
| UPC-ALPI-12U600 | 12U | 593 | 536 | 26 kg | UPC-ALPI-12U600 PDF |
| UPC-ALPI-16U600 | 16U | 771 | 714 | 32 kg | UPC-ALPI-16U600 PDF |
| UPC-ALPI-20U600 | 20U | 949 | 892 | 39 kg | UPC-ALPI-20U600 PDF |
Wall Mount Cabinet Construction Details

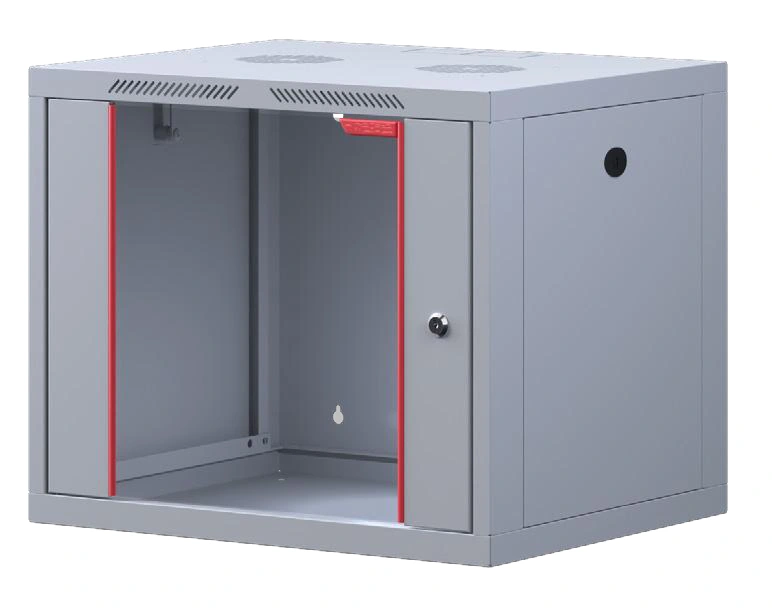

450 mm depth family

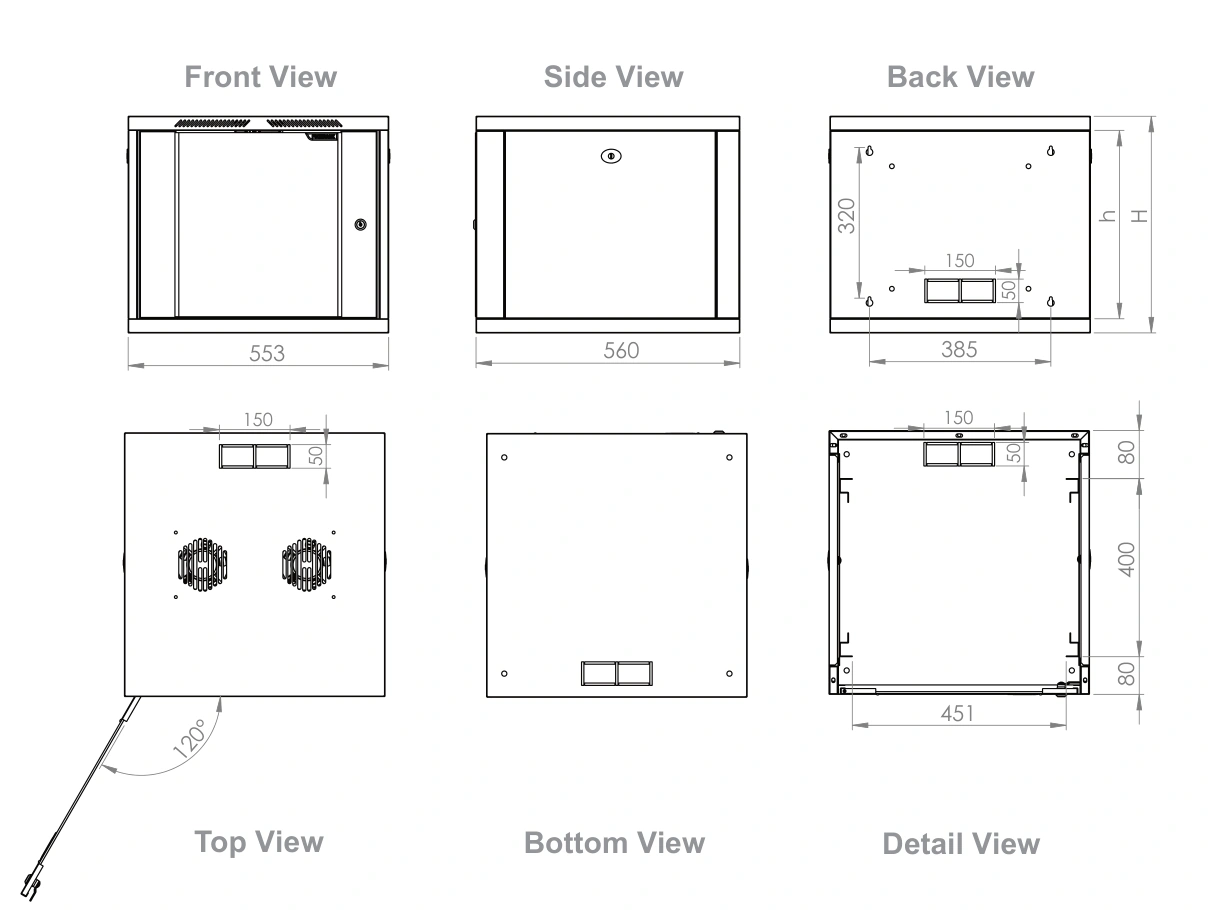

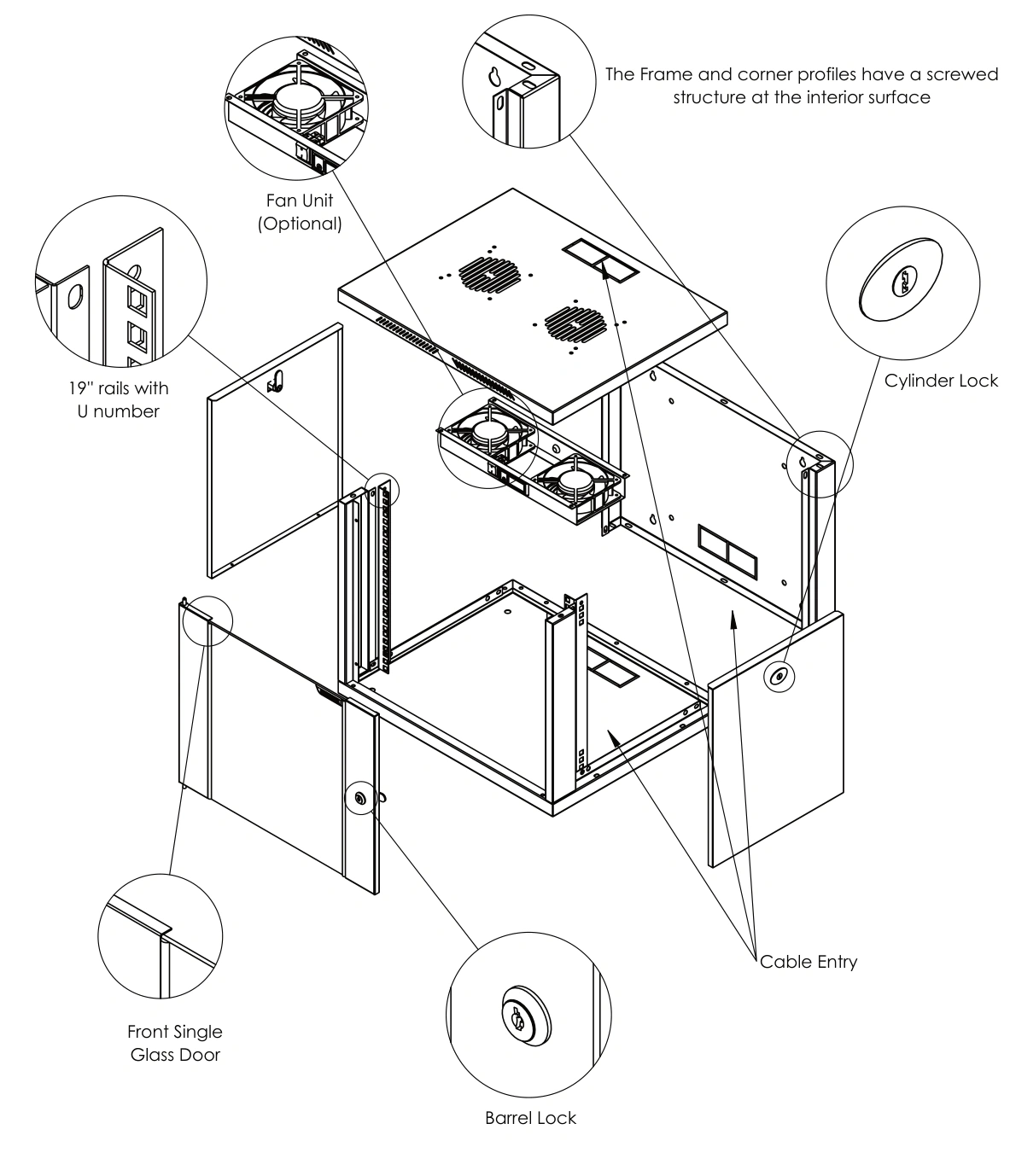

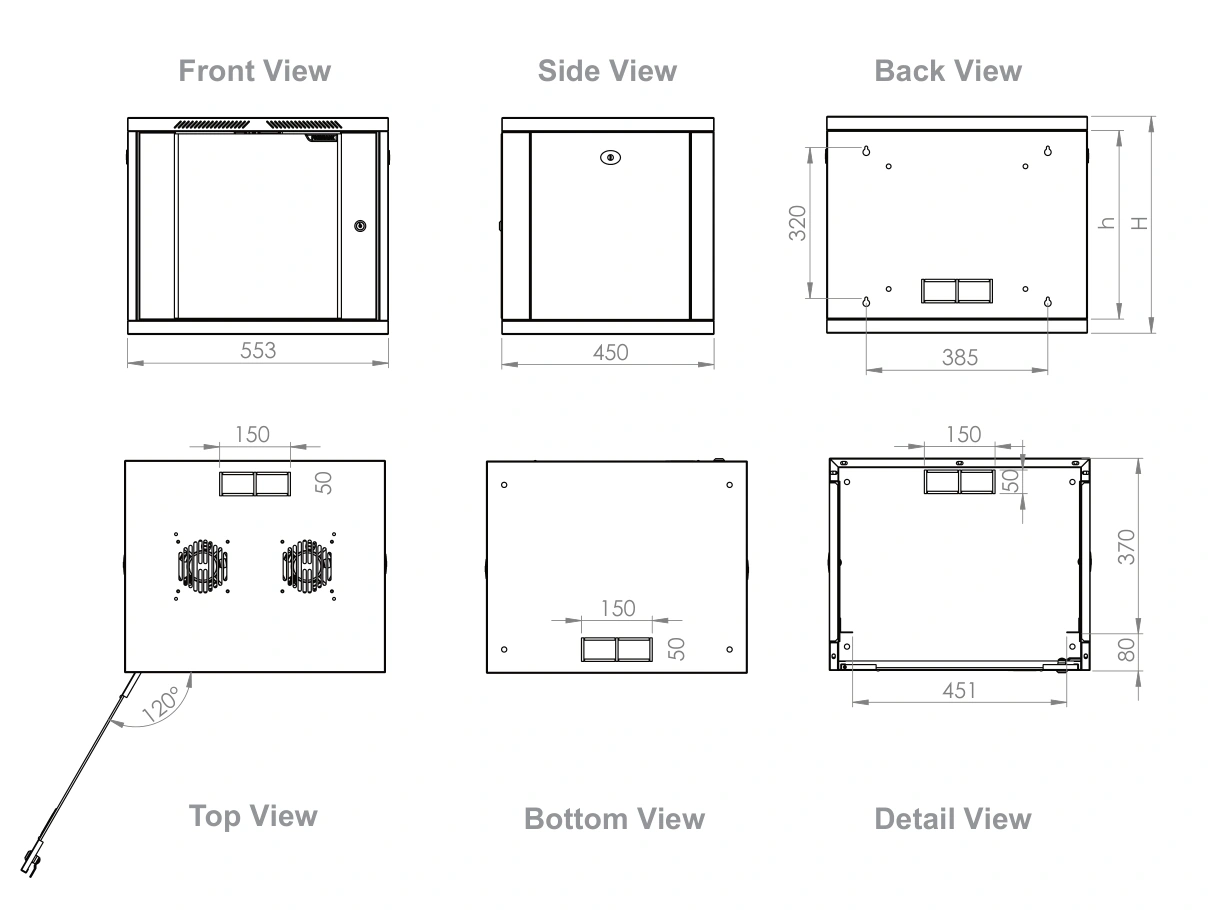

Source drawings are shared within this depth family. Consult the selected model table for its external H and internal h dimensions. Click a drawing to enlarge it.
The metal-framed front door uses 4 mm smoked tempered glass with a round O-lock / barrel lock. Optional cooling units with one or two fans can be specified separately.
560 mm depth family

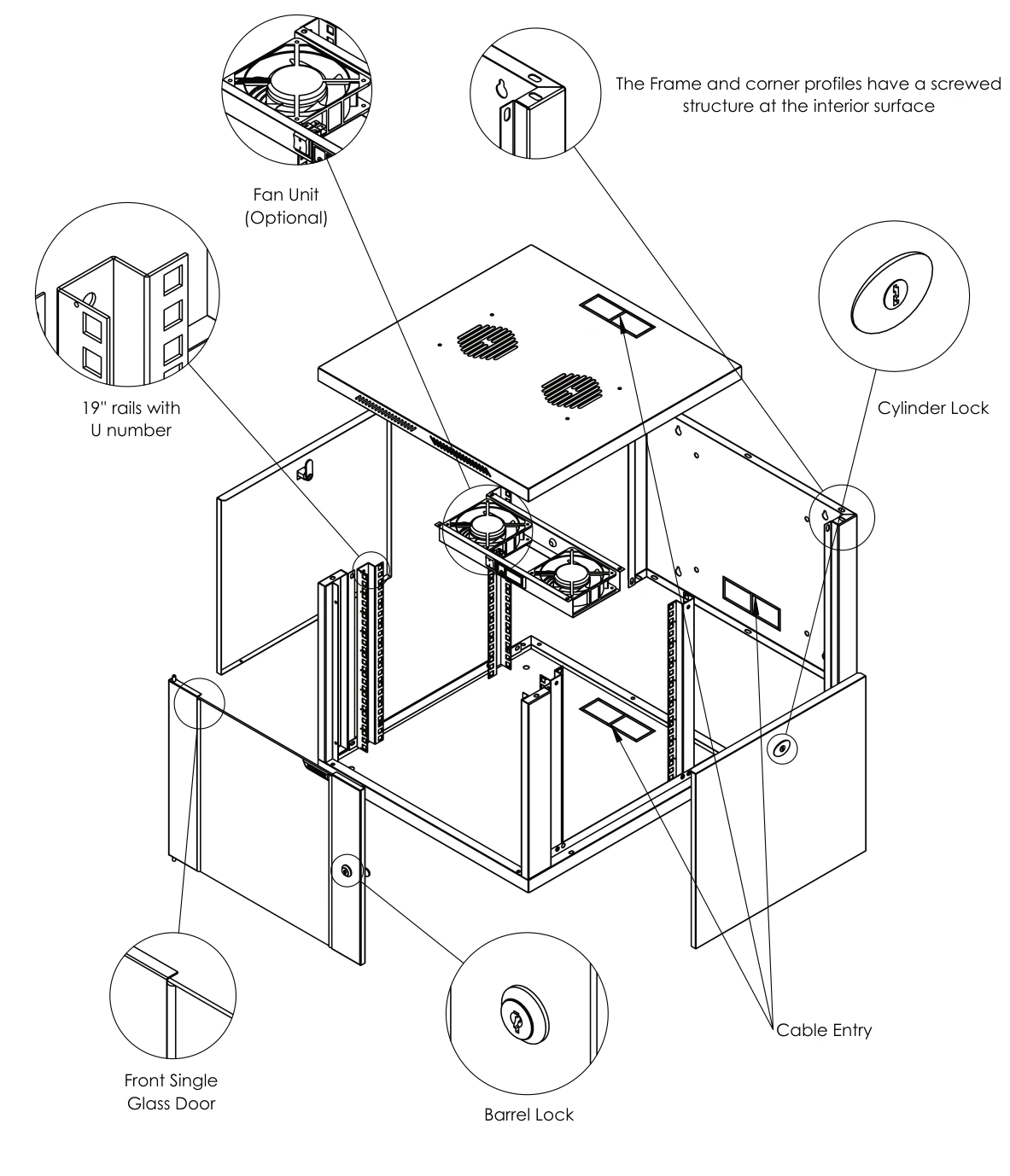

Source drawings are shared within this depth family. Consult the selected model table for its external H and internal h dimensions. Click a drawing to enlarge it.
The metal-framed front door uses 4 mm smoked tempered glass with a round O-lock / barrel lock. Optional cooling units with one or two fans can be specified separately.
600 mm depth family

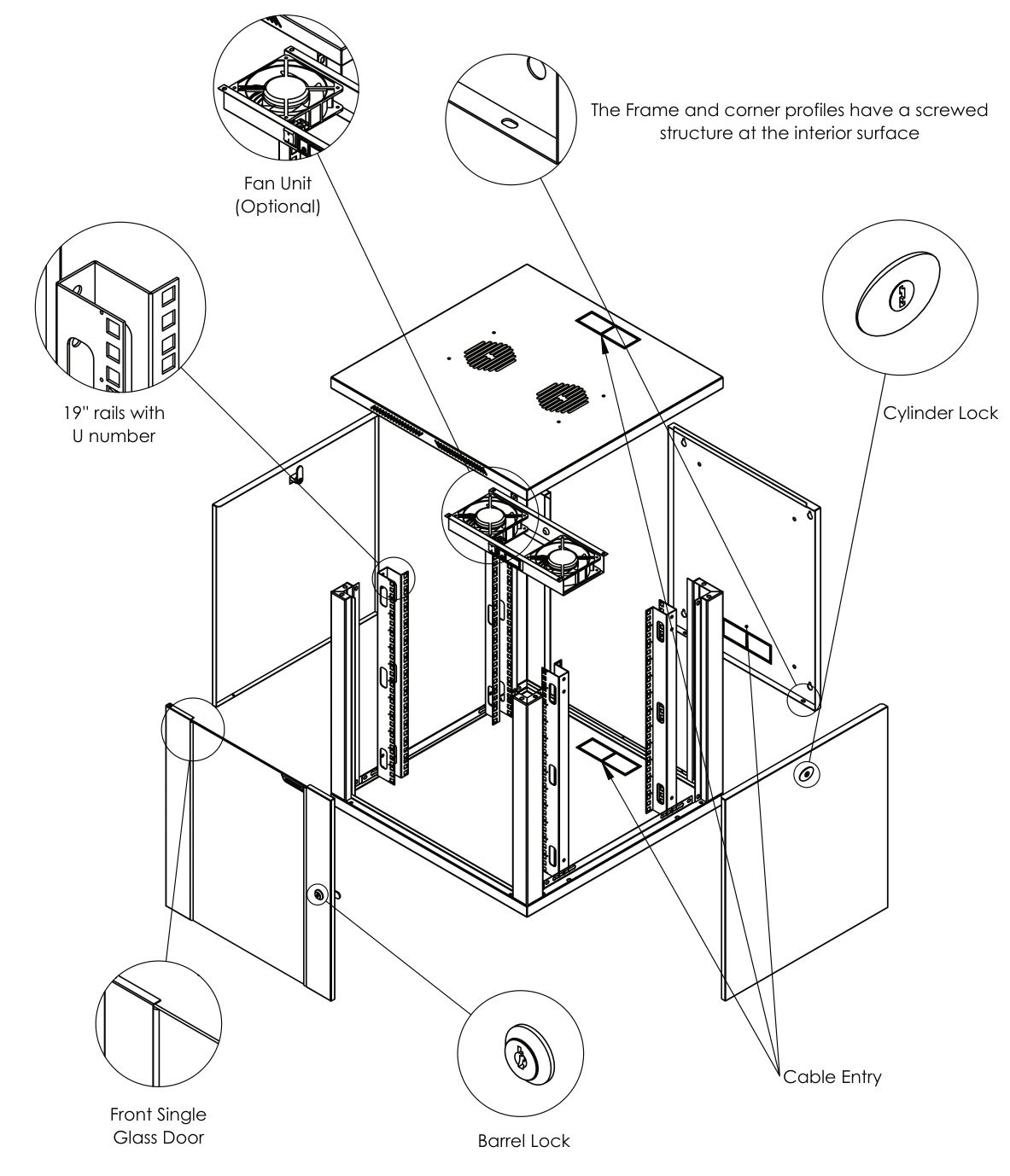

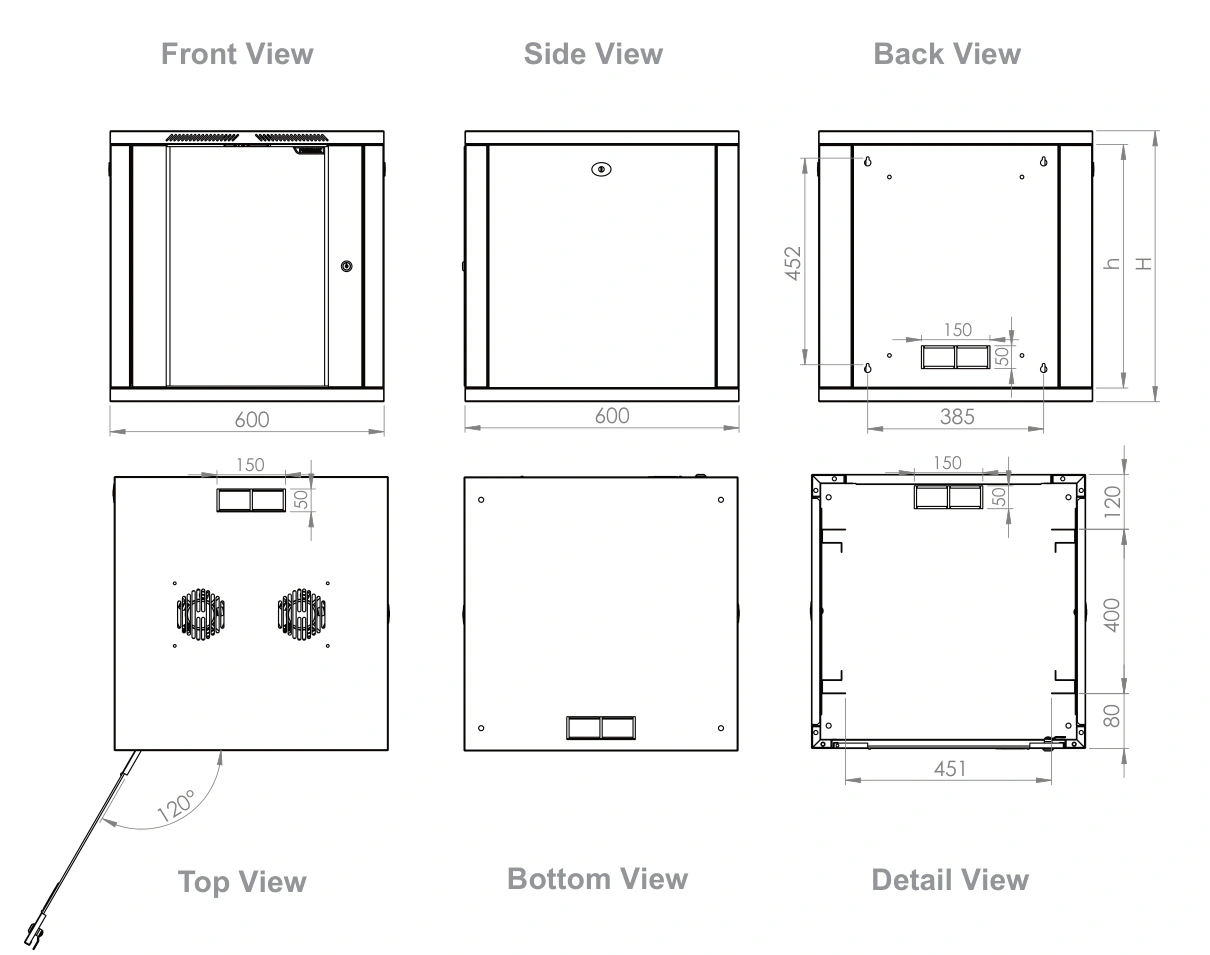

Source drawings are shared within this depth family. Consult the selected model table for its external H and internal h dimensions. Click a drawing to enlarge it.
The metal-framed front door uses 4 mm smoked tempered glass with a round O-lock / barrel lock. Optional cooling units with one or two fans can be specified separately.
19 Inch Wall Mount Rack Cabinet Specifications
| Series | Alpine Line |
|---|---|
| Load capacity | 120 kg |
| Rack heights | 7U, 9U, 12U, 16U, 20U |
| Mounting format | 19 inch |
| Mounting rails | 4 depth-adjustable rails with U markings |
| Side access | Removable, lockable side panels |
| Door / panel | Metal-framed front door with 4 mm smoked tempered glass |
| Locking hardware | Round O-lock / barrel lock |
| Fan provision | Optional cooling units with 1 or 2 fans |
| Cable entry | Top, bottom and rear |
| Material and finish | Steel / DKP; electrostatic powder coating |
| Colours | RAL 7035 light grey or RAL 9005 black |
| Protection / environment | IP20 / indoor |
How to Select an Alpine Line Cabinet
Rack height and installation load
Allow U space for patch panels, switches, cable managers and future changes. Compare the listed external height with the available wall area. Cabinet weight and installed equipment both matter when assessing the wall and fixing arrangement.
Depth and equipment clearance
The 450 and 560 mm versions are 553 mm wide; the 600 mm version is 600 mm wide. External depth does not define usable equipment depth. Check rail position, connector space, cable bends and ventilation before ordering.
Typical uses include office distribution points, branch networks, retail and CCTV cabling. For a different enclosure format, compare W-Line wall mount cabinets or floor-standing rack cabinets.
Alpine Line Wall Mount Rack Cabinet FAQ
Which sizes are available?
Choose 7U, 9U, 12U, 16U or 20U in 450, 560 or 600 mm external depths. The 450 and 560 mm versions are 553 mm wide; the 600 mm version is 600 mm wide.
Are fan units supplied as standard?
Fan units are optional. Specify a suitable cooling unit with one or two fans in the quotation.
Where can I find the datasheet for a particular cabinet?
Use the order-code tables on this page. Each of the 15 models has its own PDF datasheet and product page.
Is Alpine Line an outdoor cabinet?
Alpine Line is an IP20 indoor cabinet series. Outdoor locations require an enclosure selected for the exposure and installation conditions.
