U-DQ(ZN)(SR)H Cca Fiber Optic Cable

Outdoor Armored Fiber Optic Cable
U-DQ(ZN)(SR)H Cca Euro Class
cca fiber optic cable

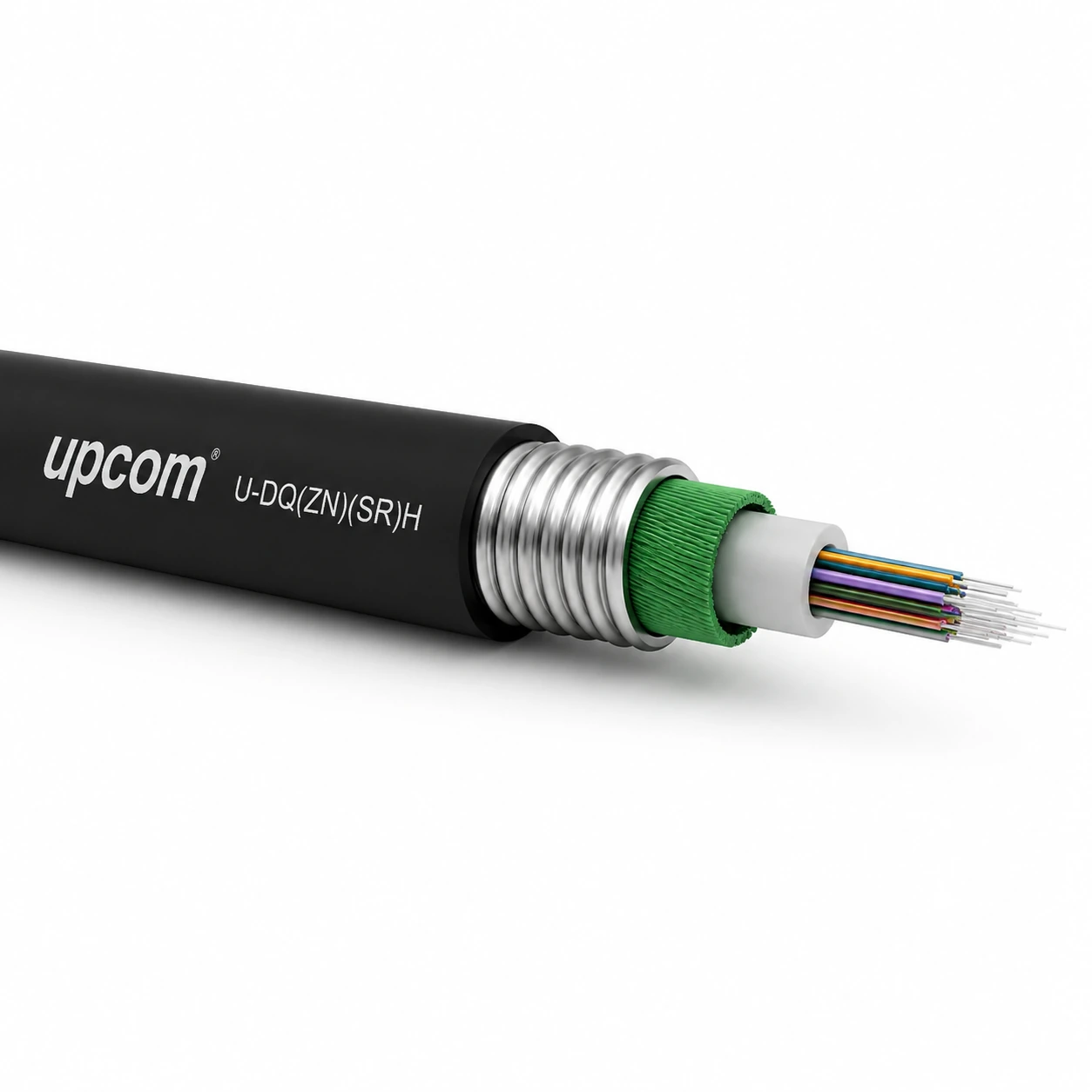

U-DQ(ZN)(SR)H Cca Fiber Optic Cable -Reaction to fire: (Euroclass) EN 13501-6: Cca -, CST Armored Fiber Optic Cable is the ideal solution for low fiber counts, suitable for outdoor use. This cable can be used for LAN and WAN system backbones, telecommunications connection lines, FTTB (fiber to the business, fiber to the building) connection lines, same as for FTTH (fiber to the home) house connections. Fire-resistant, watertight and UV-resistant sheath makes it ideal for outdoor installations. Robust structure is a good solution for access and distribution for inside the building for FTTX, FTTH application or those areas where the fiber cable may not be exposed to heavy physical damage. The fibers are placed within a dry loose tube. For low core counts available up to 24FO, U-DQ(ZN)(SR)H Cca Fiber Optic Cable are designed against the heavy mechanical damage risk exists.

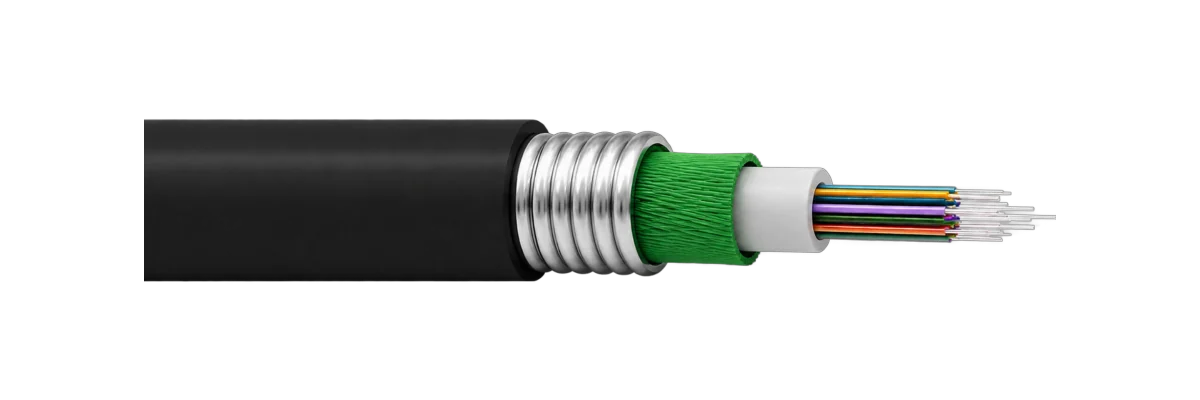

Glass yarns are applied over the tube increasing pulling strength of cable to provide additional tensile strength. Low Smoke Zero Halogen Free sheath which is resistant to stress cracking and UV radiation. Corrugated Steel Tape Armoring protects the fiber against possible mechanical strikes.

Other number of tubes Colour options for sheath, tube and fiber

Increased Tensile strength (Aramid or Glass Yarn)

L-M-HDPE or LSZH sheath.

Euroclass Cca Optical Fiber Cable – CPR for cables in Compliance

Compliance

  • UV resistance: EN 50289-4-17:2015
  • Reaction to fire: (Euroclass) EN 13501-6: Cca
  • Zero halogen, no corrosive gases: IEC 60754-1/-2, EN 60754-1/-2, VDE 0482-754-1/-2
  • Flame propagation: IEC 60332-1-2, EN 60332-1-2, VDE 0482-332-1-2
  • Flame spread: IEC 60332-3-24
  • Smoke density: IEC 61034-1/-2, EN 61034-1/-2, VDE 0482-1034-1/-2

Application

  • Inter Building Voice or Data Communication Networks
  • FTTC Cabling
  • Outside Plant
  • Installed in Ducts & Conduits
  • Primary & Secondary Distribution
  • WAN
  • FTTB Cabling,
  • Campus Cabling
  • Directly Buried Underground
  • Telecommunication Data Trunk Systems
  • Harsh Premises Environments requiring heavy duty protection
  • Interconnection of Distribution Boxes,
  • Distribution Frames and the Panels at Customer Side

Features and Benefits

  • Outdoor Cable
  • Enforcement with Non-Metallic Strength Members
  • Loose Tube
  • UV- Resistant
  • LSZH Outer Sheath
  • High Crush & Impact Resistance
  • Dry Core
  • Dry Tube

CPR Compliance for Fiber Optic Cable

CPR for cables (Construction Products Regulation) for cables became a legal requirement in July 2017. CPR for fiber optic cables is having an intended use for permanent installation in buildings and construction works, to be accompanied by a Declaration of Performance (DoP). This requirement relates only to the Reaction to Fire performance of Fiber Optic, Data Lan Cables, Power Cables, etc.. As part of CPR for cables, all copper and fiber cables sold into the EU market must comply and hold the CE mark on it. Every CPR product also requires a Declaration of Performance (DoP) from the manufacturer that identifies the product, it is intended use and its Euroclass characteristics.

EN 50575 enables designers and installers to consider the contribution that cables make to the spread of fire. As cables run between rooms and floors or above ceilings and are often made from flammable materials. it’s important that the fire risk can be assessed easily. They can also be a source of ignition if badly installed, damaged or faulty.

CPR-Icon-300x279-1

CPR Compliant Cable Labelling

Declaration of Performance (DoP), in a standard format which must include:

  • A unique ID for the specific product
  • Intended uses
  • Manufacturers information
  • The AVCP (Assessment and Verification of Constancy of Performance) system applied
  • A dated reference of the harmonized standard
  • The Notified Body used
  • The Declared Performance (or NPD if no performance is declared)
