5700 W Outdoor Enclosure Air Conditioner

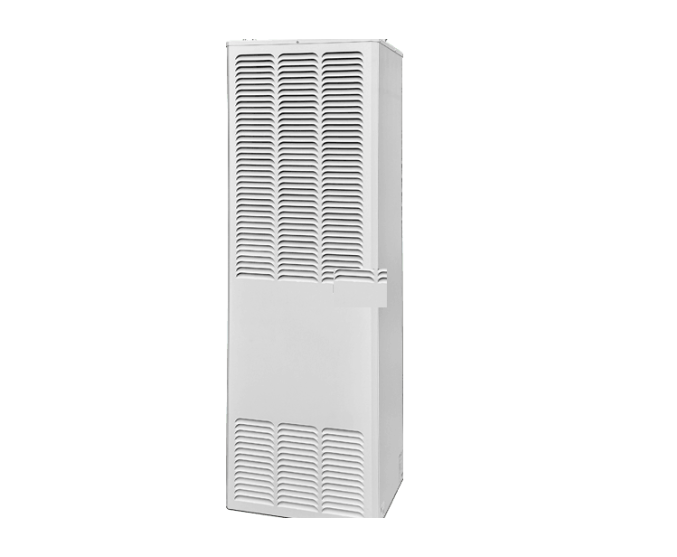

5700 W outdoor enclosure air conditioner UP-AC-5700 is designed for sealed outdoor telecom and electrical cabinets that need active temperature control without bringing outside air into the enclosure. It combines closed-loop cooling, IP55 / IP65 protection and industrial communication options in a vertical cabinet-mount format.
UPCOM Model: UP-AC-5700
Cooling capacity: 5700 W L35/L35
Supply: 380–415 V
5700 W
Cooling capacity
IP55 / IP65
Protection
0 to +55 °C
Ambient
Modbus / EtherNet-IP
Communication
On this page
UP-AC-5700: Outdoor Cabinet Cooling
This model is a practical fit for large outdoor telecom and electrical enclosures requiring high cooling capacity. The internal and external air circuits remain separated, helping keep the protected enclosure closed while heat is rejected to ambient air.
The controller is factory set to 34 °C with 4 °C hysteresis. Communication options include EtherNet/IP, ModBus TCP and ModBus RTU for compatible monitoring systems.
Technical Specifications
| UPCOM model | UP-AC-5700 |
| Cooling capacity (L35/L35) | 5700 W |
| Refrigerant / charge | R134a / 1900 g |
| Factory thermostat setting | 34 °C |
| Hysteresis | 4 °C |
| External / internal airflow | 3600 m³/h / 1425 m³/h |
| Rated frequency | 50/60 Hz |
| Input voltage | 380–415 V |
| Power absorbed | 1280 W |
| Running / starting current | 3.2 A / 4.2 A |
| Weight | 91 kg |
| Dimensions (H × W × D) | 1200 × 480 × 400 mm |
| Construction | Galvanized metal |
| Mounting | Vertical cabinet mount |
| Protection (Ext./In) | IP55 / IP65 |
| Ambient operating range | 0 °C to +55 °C |
| Compressor | Tecumseh |
| Fans | EbmPapst |
| Communication | EtherNet/IP, ModBus TCP, ModBus RTU |
Technical values follow the current source-model manufacturer specification. Project conditions can affect actual thermal performance.
Typical Applications
- Outdoor telecom and transmission cabinets
- Network and edge-computing enclosures
- CCTV, traffic and security-system cabinets
- Industrial automation and control panels
- UPS and power-electronics enclosures
Best fit: large outdoor telecom and electrical enclosures requiring high cooling capacity.
Related UPCOM pages: Enclosure Air Conditioners · Outdoor Telecom Cabinet with AC · Rack Cabinets · Cooling Selection Guide · IP55 vs IP66 Guide · Download Center
When to Select 5700 W
Calculate equipment heat dissipation, solar gain and peak ambient temperature before selecting capacity. If the calculated load is close to 5700 W, review the next larger model rather than designing the system to operate continuously at its limit.
For quotation support, send enclosure dimensions, equipment heat load, maximum ambient temperature, target internal temperature, available voltage and quantity.
UP-AC-5700 FAQ
Is 5700 W the electrical power consumption?
No. 5700 W is the rated cooling capacity at L35/L35. The listed electrical power absorbed by this model is 1280 W.
Can this unit be used in a sealed telecom cabinet?
Yes. It is intended for enclosure applications where the protected cabinet air should remain separated from the outdoor air circuit while heat is actively removed.
What information is needed for a quote?
Send cabinet dimensions, estimated heat load, site ambient range, target internal temperature, voltage, quantity and any communication requirement.
Request UP-AC-5700 for Your Project
UPCOM supplies enclosure cooling as a standalone unit or as part of a configured outdoor cabinet project.
