Server Rack Cabinet 19″

Server Rack Cabinet
FS Line Server Rack Cabinet

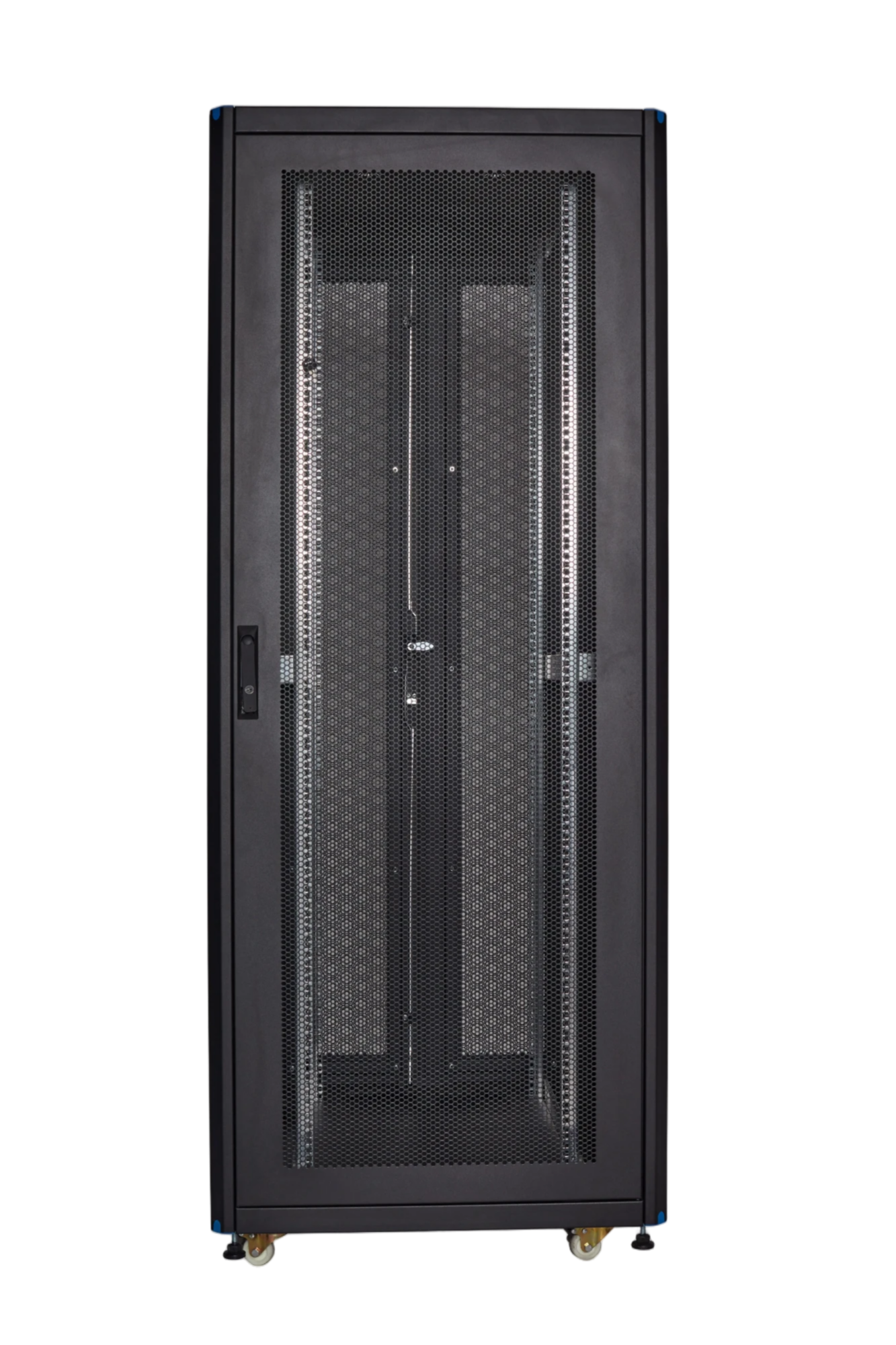

Server rack cabinet 19″ FS Line Server rack cabinet provides a robust, cost-effective enclosure solution for your server requirements with professional ventilation structure as well the heavy duty construction to house the heavy loads of server equipments. Server rack cabinet 19″ is a type of equipment cabinet designed to securely and efficiently house and organize servers, networking equipment, and other rack-mountable IT gear. The cabinet typically features a durable steel or aluminum construction that conforms to the EIA-310-D standard for 19″ rack-mountable equipment, ensuring compatibility with a wide range of gear.

The cabinet features adjustable mounting rails that allow for easy installation of equipment, as well as ventilation to ensure proper air flow and cooling. It also has lockable doors for security and often includes additional features such as cable management systems, power strips or PDUs, and casters for mobility.

The cabinet is typically available in different sizes, heights and depths, depending on the amount of equipment that needs to be stored and the size of the room. The cabinet may have a maximum weight capacity of up to 1200kg (2000lbs).

This cabinet is commonly used in data centers, server rooms, and other IT environments to organize and protect electronic equipment and ensure compliance with international and European standards and regulations like IEC60297, IEC60297-2, UL-2416, NFPA-75, EN 60950, EN 60950-1, EN 16727-1, EN 16727-2, and EN 1047-2.

Front and Rear Doors of the product are in standard % 65 or optional 80% perforated with handled locking 3 point locking system. Server Rack 19 cabinet offers you a flexible and comprehensive solution for your server installations In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or gray (RAL7035). With automated Silk U Numbering. It’s design features provide 4 way access to your enclosure and equipments, easy to reach to enclosure and equipments for all infrastructure installations and maintenance needs.

In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels. For the options available, you can contact us. Color, dimension, or construction can be modified as per you requirements. IP rated version of server rack is available upon request too.

Construction of Server Rack Cabinet 19″ FS Line

The construction of a Server Rack Cabinet 19″ typically features a durable steel or aluminum frame, which provides strength and stability to the unit, and can support the weight of the equipment installed. The frame can be constructed using a variety of methods such as roll-formed, welded or bolted, each with its own set of benefits.

The cabinet typically has removable side panels, top, and rear doors that allow for easy access to the equipment inside, and a locking mechanism to keep the equipment secure. The cabinet also has a set of adjustable mounting rails that allow for easy installation of equipment, and that can be adjusted to fit different depths of equipment. The mounting rails are typically square-holed, round-holed or universal, which are compatible with most of the equipment available on the market.

The cabinet also features ventilation to ensure proper air flow and cooling, which is important to maintain the temperature and humidity range required by the equipment. The cabinet usually has perforated front and rear doors, or vents on the top and bottom of the cabinet to allow the air to flow in and out.

In summary, the Server Rack Cabinet 19″ is designed to be robust, secure and easily accessible, while providing proper cooling and ventilation to keep the equipment running at optimal conditions.



Door: Perforated Single and Double Opening Front and Rear door options up to 80% perforation.

Material: A1 quality steel HDG, carriers are 1.5 mm – Loading Capacity 800kg. and 2.00mm option is available for heavy duty – Loading Capacity 1200kg, mounting rails 1.5 mm

Cable Entry: On Top and bottom cable entry. Multiple cable entry points provide maximum versatility

Mounting Rail: 4 Pcs = 2 Set (Right and Left) of 19″ adjustable mounting rails. Compatible with standard international 19 inch standard.

Side Panels: Opening & lockable Split Panels.

Painting: Impact-resistant, Electrostatic powder painting. Color options are RAL 9005 Black & RAL 7035 White.

IP 20 rating: IP20 according to EN61587-1, IEC60529. Protected against solid objects larger than 12,5 mm in diameter.

Heights: 12U, 15U, 16U, 19U, 20U, 25U, 27U, 30U 33U 35U 37U 39U 42U 45U 47U

Width & Depth:
600x600mm
600x800mm
600x1000mm
800x800mm
800x1000mm

Applications

Server Rack Cabinets 19″ are commonly used in a variety of IT environments, including:



  1. Data centers: These cabinets are used to house servers, storage systems, and networking equipment in a secure and organized manner. They help to maximize space, improve cooling and airflow, and ensure compliance with industry standards.
  2. Server rooms: These cabinets are used to house servers and other IT equipment in a dedicated room, separate from the main office space. They are used to provide a secure and controlled environment for the equipment, and to keep it separate from other office equipment.
  3. Network closets: These cabinets are used to house networking equipment in a small, dedicated space. They are typically used in smaller organizations or in remote locations, and help to keep the equipment organized and secure.
  4. Telecommunication Rooms: These cabinets are used to house telecommunication equipment in central locations, such as telephone exchanges, and to provide a secure and organized environment for the equipment.
  5. Industrial Environments: These cabinets are used to house electronic equipment in industrial settings, such as manufacturing plants, warehouses, and other harsh environments. They are designed to withstand dust, vibration, and extreme temperatures.
  6. Educational Institutions: These cabinets are used to house IT equipment in educational institutions such as schools, colleges and universities. They provide a secure and organized environment for the equipment and help to ensure compliance with industry standards.

In general, Server Rack Cabinets 19″ are used in a wide range of environments where IT equipment needs to be housed in a secure, organized, and compliant manner.

Drawing

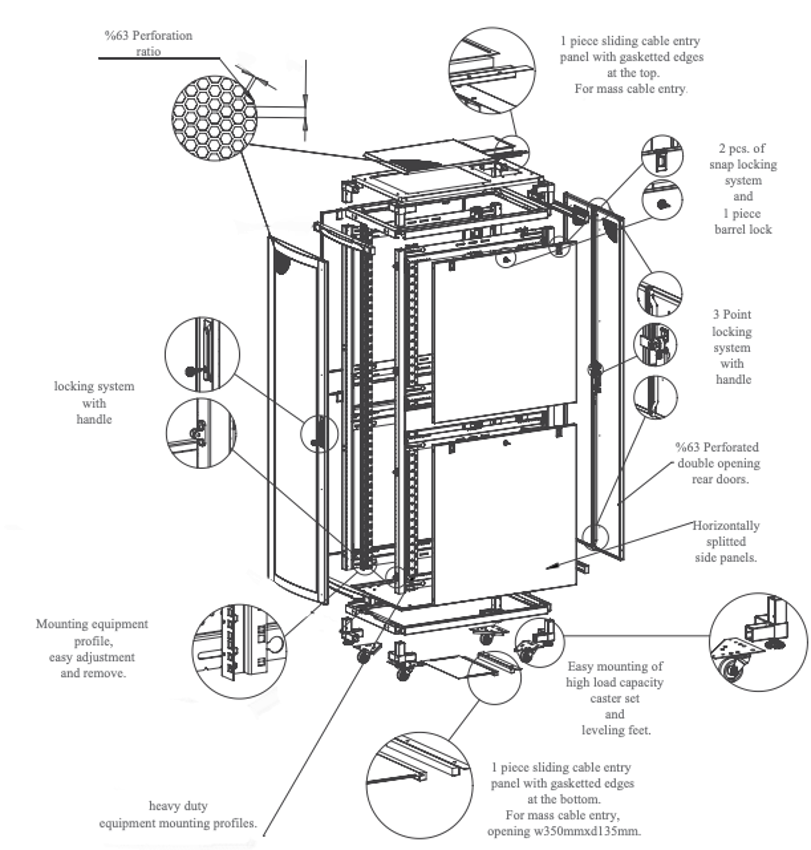

Server Rack Cabinet Drawing
Server Rack Cabinet

Server Rack Cabinet – FEATURES

Server Rack Cabinets 19″ typically feature a variety of features to ensure proper organization and protection of IT equipment. Some of these features include:

  1. Adjustable mounting rails: These allow for easy installation of equipment and can be adjusted to fit different depths of equipment. They are typically square-holed, round-holed or universal, which are compatible with most of the equipment available on the market.
  2. Ventilation: Proper airflow and cooling is essential to maintain the temperature and humidity range required by the equipment. The cabinet usually has perforated front and rear doors, or vents on the top and bottom of the cabinet to allow the air to flow in and out.
  3. Cable management: This feature helps to organize and secure cables and power cords, keeping them out of the way and preventing them from getting tangled or damaged.
  4. Locking mechanism: This feature keeps the equipment secure and prevents unauthorized access.
  5. Power strips or PDUs: These provide a convenient way to distribute power to the equipment in the cabinet, and can be remotely controlled and monitored.
  6. Casters: These make it easy to move the cabinet around, allowing for easy access to the equipment inside.
  7. Seismic certification: These are designed to withstand seismic activity and vibrations, which is important for data centers and other facilities that are located in areas prone to earthquakes or other natural disasters.
  8. Fire suppression compatibility: Some cabinets are designed to be compatible with fire suppression systems, which can help to protect the equipment in the event of a fire.
  9. Customizable: The cabinet’s height, depth and width can be customized to meet specific requirements. Some are also compatible with additional accessories like shelves, fans, blanking panels and more.

In summary, Server Rack Cabinets 19″ are designed to provide a secure, organized, and compliant environment for IT equipment, featuring a variety of features that allow for easy installation, proper cooling and airflow, cable management, locking mechanism, power distribution and more.



FS-Line Server Cabinet Features

  • Server Rack Cabinet is designed for the protection of wiring systems, servers and other devices in office and system rooms.
  • It is made of metal and has IP20 protection level.
  • Four pieces of 19” adjustable mounting rails – Front and Rear

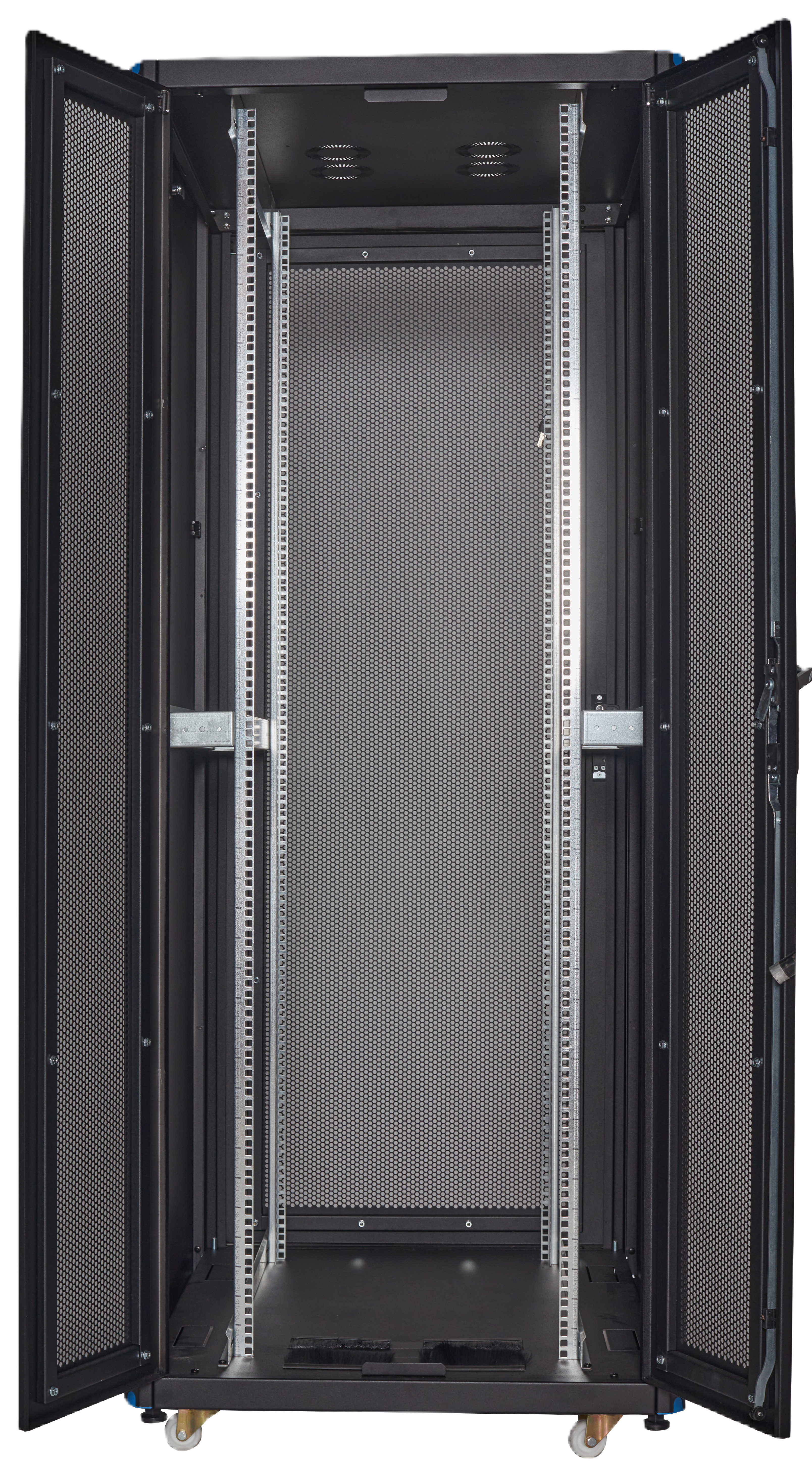

  • Front door with glass door, metal door.
  • Removable and locking 2 pcs of side panel.
  • Rear door with solid metal door.
  • Material: Sheet steel
  • Width: 600 & 800 mm
  • Depth options: 600, 800, 1000 mm
  • Heights: Available 13 different U heights 11U to 45U
  • Color options: RAL 9005 Black or RAL 7035 Light Grey
  • Rear access panel standard.
  • Robust construction
  • Space efficient
  • Digital and ON/OFF Fan module options

Server Rack Cabinet – Compliance

Server Rack Cabinets 19″ are typically designed to conform to international standards and compliances, such as the EIA-310-D standard for rack-mountable equipment. This standard specifies the width, height, and depth of the cabinet, as well as the spacing of the mounting rails.

  1. Other important international standards that may be applicable to Server Rack Cabinets 19″ include:
  2. IEC 60297-3-100: This standard covers the mechanical and electrical characteristics of 19-inch racks and equipment, including dimensions, load capacity, and cable management.
  3. IEC 61587-1: This standard covers the testing and measurement of the energy consumption of IT equipment and data centers.
  4. IEC 60529: This standard covers the degrees of protection provided by enclosures, including IP codes for resistance to dust and water ingress.
  5. UL-2416: This standard covers the safety of information technology equipment, including requirements for fire resistance and smoke development.
  6. NFPA-75: This standard covers the protection of electronic equipment from fire.
  7. It is important to ensure that the cabinet is compliant with any local building codes or regulations that may apply in the area where it will be used. This can include fire safety, electrical, and seismic codes. It is always recommended to consult with local authorities or professionals to ensure compliance with all relevant standards and regulations.



In Europe, Server Rack Cabinets 19″ are typically designed to conform to a variety of European standards and compliances, including:

  1. EN 60950: This standard covers the safety requirements for IT equipment.
  2. EN 60950-1: This standard covers the safety of IT equipment, including requirements for fire resistance and smoke development.
  3. EN 16727-1 and EN 16727-2: This standard covers the environmental and safety requirements for data centers, including temperature, humidity, and seismic.
  4. EN 1047-2: This standard covers fire resistance and smoke development of IT equipment.
  5. EN 50310: This standard covers power distribution units for IT equipment.
  6. EN 55032: This standard covers electromagnetic compatibility of IT equipment.
  7. EN 55024: This standard covers immunity of IT equipment.



It is important to ensure that the cabinet is compliant with any local building codes or regulations that may apply in the area where it will be used. This can include fire safety, electrical, and seismic codes. It is always recommended to consult with local authorities or professionals to ensure compliance with all relevant standards and regulations in Europe.



FS Line Server Standards

  • ISO 9001:2000 TSE:EN 61587-1 Mechanical Structures For Electronic Equipment – Tests For IEC 60917 And IEC 60297
  • Climatic and Environment: EN 61587-1/4.2, IEC60068-2-1, IEC60068-2-2, IEC60068-2-30,
  • Static Mechanical Load Lifting: EN61587-1/5.2.1
  • Static Mechanical Load Stiffness: EN61587-1/5.2.2
  • Dynamic Mechanical Load Vibration and Shock, Impact: EN61587-1/5.3.1, EN61587-1/5.3.3, IEC60068-2-6, IEC60068-2-27,
  • Earth Bond: EN61587-1/6.2
  • Flammability: EN61587-1/6.3
  • Degrees Of Protection Provided By Enclosures (Ip Code): IP20 or IP55, EN61587-1/6.4
  • Load Carrying Capacity of 600 kg
  • Surface Treatment: Fosfat coating
  • Corrosion Resistance: ISO9227 and ASTM B 117-85
  • Painting: Ral7035 / Ral9005

Choosing the right Server Rack Cabinet

When choosing a Server Rack Cabinet, there are a number of factors to consider to ensure that it is the right fit for your equipment and your environment. Some of the key considerations include:



  1. Size and Capacity: Consider the size and number of servers, switches, and other equipment that need to be housed in the cabinet, and choose a cabinet that is large enough to accommodate them all. Make sure to also consider the weight capacity of the cabinet and if the cabinet is a fit for the room where it will be placed.
  2. Cooling and Ventilation: Make sure that the cabinet has adequate ventilation to keep the equipment cool and running at optimal conditions. Look for features such as perforated doors or vents on the top and bottom of the cabinet to allow for proper airflow.
  3. Cable Management: Consider the need for cable management and choose a cabinet that has adequate space and features to organize and secure cables and power cords.
  4. Security: Make sure that the cabinet has a locking mechanism to keep the equipment secure and prevent unauthorized access.
  5. Power Distribution: Look for a cabinet that includes power strips or PDUs to provide a convenient way to distribute power to the equipment.
  6. Mobility: Consider whether you need to move the cabinet around, and choose a cabinet that includes casters or wheels for easy mobility.
  7. Standards and Compliance: Make sure that the cabinet is compliant with relevant international and European standards and regulations, including EIA-310-D, IEC 60297-3-100, IEC 61587-1, IEC 60529, UL-2416, NFPA-75, EN 60950, EN 60950-1, EN 16727-1, EN 16727-2 and EN 1047-2.
  8. Customization: Some cabinets can be customized to fit specific requirements, such as height, depth, width and additional accessories like shelves, fans, blanking panels and more.
  9. Cost: Consider the cost of the cabinet and choose one that fits within your budget while still meeting your needs.



It is always recommended to consult with experts or professionals to ensure that the cabinet you choose is the best fit for your equipment and your environment.

Maintenance and Storage

Proper maintenance and storage of a Server Rack Cabinet 19″ is important to ensure that it continues to function properly and protect your equipment.

  1. Cleaning: Regular cleaning of the cabinet is important to keep it free of dust and debris, which can impede airflow and cause equipment to overheat. Use a soft cloth and a mild detergent to wipe down the exterior of the cabinet, and make sure to clean the vents and other openings as well.
  2. Temperature and Humidity: Ensure that the room where the cabinet is stored is kept within a suitable temperature and humidity range to prevent equipment damage. The temperature should be kept between 10-35°C (50-95°F) and the humidity between 20-80% (non-condensing).
  3. Seismic Activity: Make sure that the cabinet is properly secured to the floor or wall to prevent it from falling over in the event of seismic activity.
  4. Power and Cabling: Regularly check the power and cabling connections to ensure that they are secure and functioning properly.
  5. Inspection: Regularly inspect the cabinet for any signs of damage or wear and tear, and make repairs or replacements as needed.
  6. Fire Suppression: make sure that the cabinet is compatible with fire suppression systems and that the systems are functioning properly to protect the equipment in case of fire.
  7. Backups: It’s important to periodically backup all the data stored on the servers and other equipment in the cabinet to ensure that it can be recovered in case of equipment failure.
  8. Service and Maintenance: It’s recommended to have a professional service and maintenance to check the equipment and the cabinet, to ensure that they are running efficiently and to perform any needed repairs or upgrades.



Storage:



  1. Location: Choose a location that is dry, clean, and secure, with a suitable temperature and humidity range to prevent equipment damage. Make sure the location is easily accessible for maintenance and repairs.
  2. Seismic activity: Make sure the cabinet is properly secured to the floor or wall to prevent it from falling over in the event of seismic activity.
  3. Power and Cabling: Make sure that the power and cabling connections are secure and functioning properly.
  4. Cleaning: Regular cleaning of the cabinet is important to keep it free of dust and debris, which can impede airflow and cause equipment to overheat.
  5. Fire Suppression: Make sure the cabinet is compatible with fire suppression systems and that the systems are functioning properly to protect the equipment in case of fire.
  6. Accessibility: Make sure that the cabinet is easily accessible for maintenance and repairs.
  7. Backup: It’s important to periodically backup all the data stored on the servers and other equipment in the cabinet to ensure that it can be recovered in case of equipment failure.
  8. Labelling: Make sure to label the cabinet and the equipment inside, to help identify and locate the equipment quickly, and to keep track of the equipment that is stored in the cabinet.

By following these guidelines, you can help ensure that your Server Rack Cabinet 19″ continues to function properly and protect your equipment for years to come.

Safety Instructions for Server Rack Cabinet 19"

  1. Always use proper lifting techniques when moving the server rack cabinet to prevent injury.
  2. Make sure the cabinet is level and stable before installing equipment.
  3. Do not exceed the weight capacity of the cabinet, as specified by the manufacturer.
  4. Use proper grounding and bonding to protect against power surges and electrical hazards.
  5. Keep the cabinet closed and locked when not in use to prevent unauthorized access.
  6. Use caution when working inside the cabinet, as there may be sharp edges and hot equipment.
  7. Follow the manufacturer’s instructions for installing and maintaining equipment in the cabinet.
  8. Periodically inspect the cabinet and equipment for signs of wear or damage.
  9. Keep the cabinet and surrounding area clean and free of debris to prevent fire hazards.
  10. Use proper ventilation to prevent overheating of equipment and to maintain safe operating temperatures.
standards
