10 Dec Fiber Blowing Best Practices: The Complete Engineering Checklist for High-Performance Deployments
Why Engineering Quality Determines Fiber Blowing Success
In real deployments, 20–30% performance loss comes not from the fiber itself, but from technical misconfigurations: poor duct preparation, incorrect fill ratio, low airflow, wrong lubrication, or ignoring bending/tensile limits.
Optimizing installation parameters increases blowing distance, reduces friction, prevents microbending, and protects the fibers during installation.
Comprehensive Fiber Blowing Checklist
This checklist applies to all modern cable-blowing machines used in FTTH, FTTB, backbone, and long-haul projects.
1. Cable & Duct Compatibility

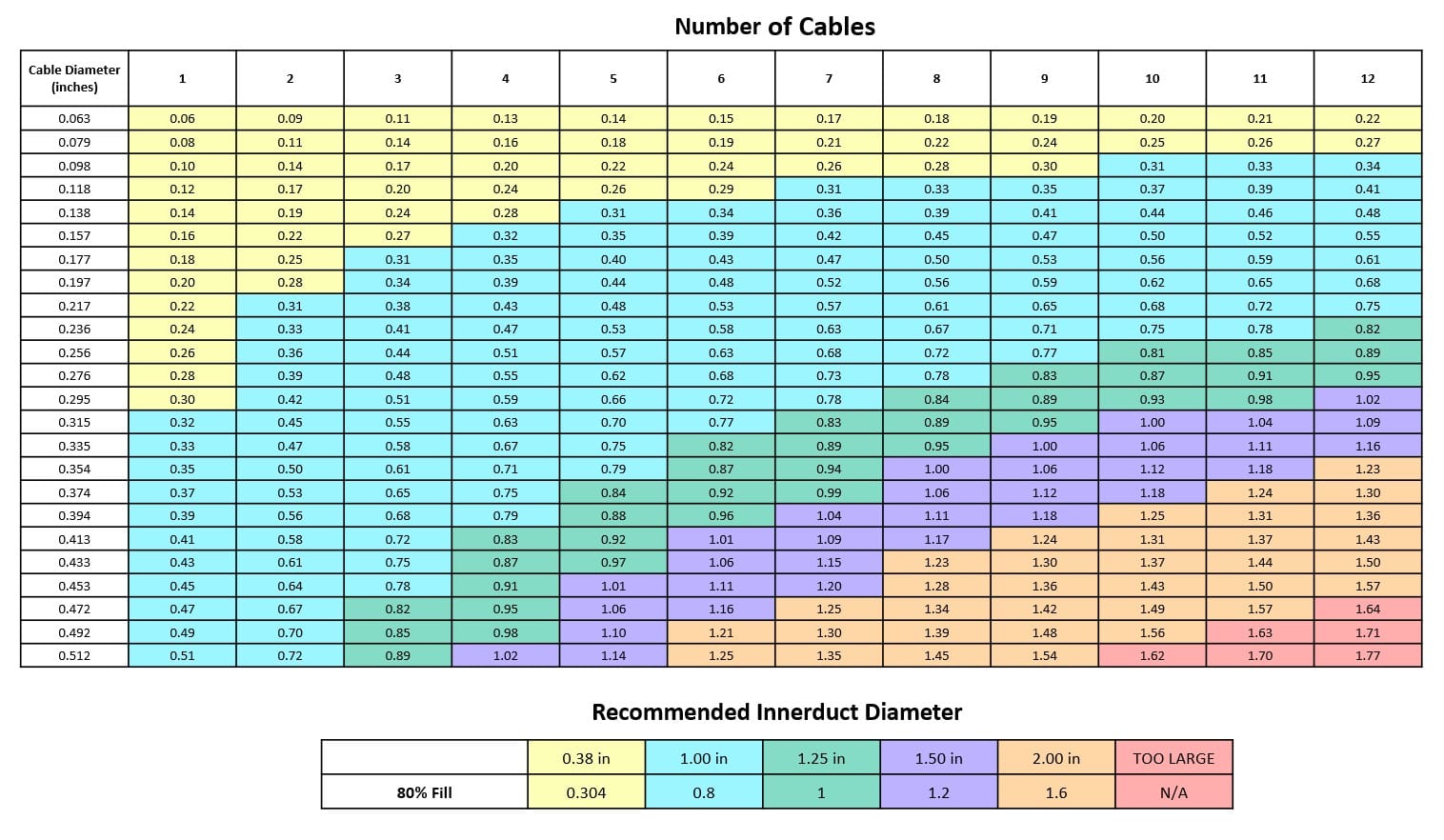

- Cable–duct fill ratio maintained at 40–60%
- Duct inner surface checked (clean, dry, debris-free)
- No ovalization or damage on duct entry
- No tight bends in the first 3–5 meters
- Correct duct diameter selected for the cable outer diameter

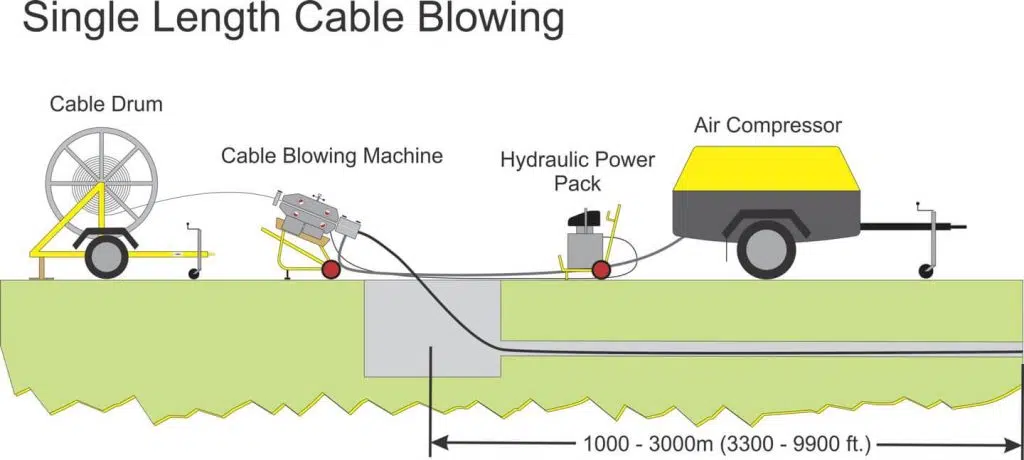

2. Air & Machine Setup
- Compressor airflow capacity verified: 200–600 L/min
- Air filtration and moisture traps active
- Machine rollers/wheels/belts inspected for wear
- Jetting head aligned perfectly with duct entry
- Air pressure test completed before insertion
- All safety stops and emergency controls tested
3. Lubrication Strategy
- Lubricant compatible with dry-core or gel-filled designs
-
Lubrication applied continuously (not in a single spot)
-
Pre-lubrication done for long routes or old ducts
-
Avoid over-lubrication, which can cause oscillation
4. Mechanical Limits
- Tensile rating checked from the manufacturer datasheet
- Crush rating matches expected duct route pressure
- Minimum bending radius respected along entire route
- Installation speed kept within acceptable range
- Drum handling done without additional tension
5. Environmental Conditions
- Temperature suitable for jetting (extreme heat increases friction)
- Humidity or condensation inside ducts eliminated
- Duct route scanned for blockages or deformations
- Avoid blowing during rain if ducts are not fully sealed
Here is the UPCOM air Cooler that helps you on your cable jetting blowing application
6. Pre-Start Procedures
- Drum positioned to eliminate back tension
- Drum brake calibrated for smooth rotation
- Field team communication established
- Test blowing done for the first 100–200 meters
- Airflow and pressure monitored during test
7. Post-Blowing Procedures
- Fiber end inspected for integrity
- Excess fiber length managed according to project requirements
- Full route documented for future maintenance
- Machine counters reset and logged
Engineering Always Outperforms Cheap Materials
Lowering fiber cost rarely improves project performance.
Optimizing engineering parameters consistently delivers:
- Longer blowing distances
- Lower installation time
- Reduced risk of fiber damage
- Higher network lifetime performance
Smart engineering beats cheap materials. Every time.
