Cable Blowing Accessories

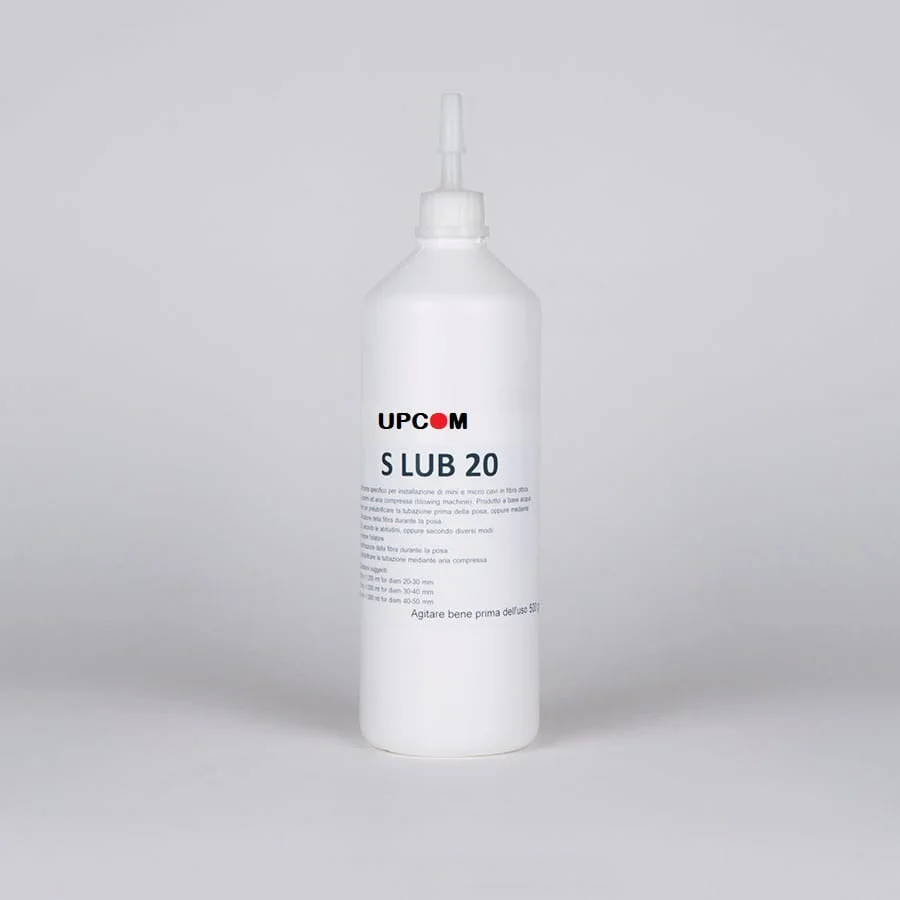

Cable Blowing Lubricant UP S LUB 20
Cable blowing lubricant UP-S-LUB-20 is a water-based polymer emulsion developed for micro and mini cable blowing applications. It reduces friction inside the duct, leaves a thin lubricating film, and helps improve blowing distance in real installation conditions.
Practical friction notes (external): Cable blowing friction tips
UP-S-LUB-20 overview
UP-S-LUB-20 adheres to the cable surface and the internal duct wall, leaving a thin lubricating film without creating a “glue effect”. It is suitable for duct pre-lubrication and also for blowing machines with an oil / lubricant dispenser (project dependent setup).
Product data
| Parameter | Value |
|---|---|
| Product consistency | Semi liquid |
| Cable installation | Blowing machine |
| Application | Cable threading / duct pre-lubrication |
| Installation type | Industrial |
| Recommended duct internal diameter | 15 to 50 mm |
Usage quantity (per 1000 m)
| Internal duct diameter (mm) | Recommended quantity (ml) |
|---|---|
| 20 – 30 | 600 |
| 30 – 40 | 700 |
| 40 – 50 | 1000 |
Actual usage may vary depending on duct condition, bends, route difficulty and section length.
How to use cable blowing lubricant UP-S-LUB-20
- Shake before use to ensure uniform emulsion.
- Apply into the duct (or use a compatible dispenser system on the machine).
- Pre-lubricate the duct with a sponge pig (recommended for stable film coverage).
- Blow the cable and adjust lubrication level based on route conditions.
- Keep it clean: avoid contamination of the bottle and application tools.
Works with rubber-wheel or iron-wheel drive systems (configuration dependent). For detailed guidance, refer to the datasheet: UP-S-LUB-20 PDF.
Technical specification
Physical properties
- Appearance: white liquid, low viscosity
- Odour: none
- pH: 7.5 ± 0.5
- Specific gravity: 1.030 ± 0.03 g/cm³
Performance & safety
- Viscosity: 120 sec (Ford cup Ø4 mm at 20°C)
- Temperature range: -5°C to +70°C
- Inflammability: noninflammable
- Biodegradability: biodegradable
- Toxicity: not toxic
Packaging & product codes
| Product code | Wrapping / Packaging |
|---|---|
| VSLUB2005-12 | Bottle 500 g (box 12 pcs) |
| VSLUB201-15 | Bottle 1 kg (box 15 pcs) |
| VSLUB201-12 | Bottle 1 kg (box 12 pcs) |
| VSLUB201-06 | Bottle 1 kg (box 6 pcs) |
| VSLUB205 | Tank 5 kg (1 pc) |
| VSLUB2010 | Tank 10 kg (1 pc) |
| VSLUB2020 | Tank 20 kg (1 pc) |
| VSLUB2025 | Tank 25 kg (1 pc) |
Standards & compliance notes
Lubricants used in telecom installation projects may be referenced against different standards depending on project requirements. For formal documentation, use the official datasheet as the primary reference.
- ISO lubricant classifications may be requested (project dependent)
- Smoke/toxicity requirements may be evaluated for certain sites (project dependent)
- Local rules for handling and disposal apply (country dependent)
Storage & handling
- Store in a cool, dry place away from direct sunlight and heat sources.
- Keep containers sealed to prevent contamination.
- Avoid storing near chemicals that may react with the emulsion.
- Check batch/expiry and discard expired product.
- Use clean dispensing tools and follow local disposal regulations for used/contaminated lubricant.
FAQ – cable blowing lubricant UP-S-LUB-20
Is UP-S-LUB-20 suitable for microduct pre-lubrication?
Yes. It is designed for duct pre-lubrication and leaves a thin film on the duct wall to reduce friction.
Can UP-S-LUB-20 be used with a machine lubricant dispenser?
Yes, it can be used with blowing machines that support lubricant / oil dispensers (setup dependent).
What duct size range is recommended?
The product is intended for fiber optic duct internal diameter sizes in the range of 15 to 50 mm.
Is it safe and environmentally friendly?
The datasheet states the product is non-flammable, biodegradable and not toxic.
