Data LAN Cable

CAT 5E U UTP

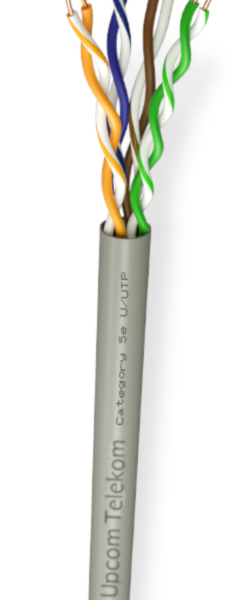

CAT 5E U UTP cable is a practical solution for structured cabling projects that need stable Class D transmission, 24 AWG bare copper conductors and dependable performance up to 100 MHz. It fits cost-sensitive LAN installations where easy handling, consistent electrical values and standard-compliant performance matter more than unnecessary over-specification.

This cable is suited to office networks, commercial buildings, patching zones, telecom rooms and general voice-data infrastructure where 10/100/1000Base-T support, PoE compatibility and efficient installation are expected. PVC, HFFR and PE sheath alternatives also make it easier to match the cable to the project environment.

Download Datasheet Browse All Cables Certificates

Conductor

24 AWG Bare Copper

Performance

Up to 100 MHz

Impedance

100 ± 5 Ω

Sheath Options

PVC, HFFR or PE

CAT 5E U UTP Cable Overview

CAT 5E U UTP is an unshielded twisted pair data cable designed for standard network infrastructure where a balanced cost-performance ratio is required. In many commercial and building cabling projects, it remains a sensible choice because it delivers the transmission level needed for common Ethernet networks without forcing the project into a higher-cost category unnecessarily.

The structure uses 24 AWG bare copper conductors with PE insulation and can be supplied with PVC, HFFR or PE outer sheath depending on the installation environment. This allows the same CAT 5E U UTP platform to be adapted for different project priorities such as indoor routing, improved fire performance or general-purpose network cabling.

For broader category navigation, see the full fiber optic and data LAN cables range. If your project needs extra shielding or higher frequency capacity, compare this model with CAT 5e F/UTP, CAT 6 U/UTP, CAT 6 SF/UTP, CAT 7 S/FTP and CAT 7A S/FTP.

CAT 5E U UTP Construction

Conductor: 24 AWG bare copper
Insulation: PE
Cable Design: U/UTP
Outer Sheath: PVC, HFFR or PE
Packing: 305 / 500 m

This construction keeps the cable practical for routine installation work, with acceptable bending behavior, stable impedance values and broad use in standard structured cabling layouts.

CAT 5E U UTP Compliance

EIA/TIA-568-C.2
ISO/IEC 11801 2nd edition
IEC 61156-5
EN 50173-1
EN 50288-3-1

For external standards references, see IEEE 802.3, TIA-568 and IEC 61156-5.

CAT 5E U UTP Application Areas

Office Networks

Suitable for standard horizontal cabling in commercial offices and administrative buildings.

10/100/1000Base-T

Appropriate for Ethernet, Fast Ethernet and Gigabit Ethernet infrastructure within its category limits.

Voice and Data Cabling

Works well in shared building systems where structured voice-data transmission is required.

PoE / PoE+

Can be considered for networks carrying both data and remote powering in properly designed installations.

CAT 5E U UTP Technical Properties

Property	Value
Copper Weight	17 kg/km
Min. Bending Radius During Draw In	50 mm
Min. Bending Radius Permanently Installed	25 mm
Max. Tensile Strength	100 N
Min. Crush Resistance	1000 N / 10 cm
Min. Impact	10 impacts
Installation Temperature	0°C to +50°C
Operating Temperature	-30°C to +70°C
Packing	305 / 500 m
Max. Conductor Resistance	9.5 Ω / km
Max. Resistance Unbalance	< 2%
Min. Insulation Resistance	5000 MΩ x m
Mutual Capacitance	50 pF / m
Max. Capacitance Unbalance	1600 pF / km
Impedance at 100 MHz	100 ± 5 Ω
Velocity of Propagation	0.69
Delay Skew	45 ns / 100 m
Test Voltage	1000 V
Operating Voltage	125 V

Frequency (MHz)	Attenuation	NEXT	PS-NEXT	ACR	PS-ACR	ACRF	PS-ACRF	Return Loss
1	2	70	67	68	65	78	75	21
4	4	62	59	58	55	70	67	29
10	6	55	52	50	47	52	49	30
16	8	55	52	45	42	50	47	30
31	11	48	45	40	37	35	32	29
63	16	48	45	30	27	35	32	27
100	21	40	37	20	17	30	27	27
200	27	35	32	10	7	20	17	20

Version	Outer Sheath	Euro Class	Cable Weight	Flame Retardancy	Corrosive Gases	Smoke Density
U/UTP PVC	PVC	Eca	38 kg/km	EN 60332-1-2	N/A	N/A
U/UTP HFFR	HFFR	Dca	39 kg/km	EN 60332-1-2	EN 50267-2-3	EN 61034-2
CAT 5e U/UTP PE	PE	Fca	34 kg/km	N/A	N/A	N/A

How to Choose CAT 5E U UTP for Your Project

Step 1

Check the network level

Use CAT 5E U UTP when the project requires standard Class D structured cabling rather than a higher-category solution.

Step 2

Select the sheath type

Choose PVC, HFFR or PE according to fire performance, indoor environment and project routing conditions.

Step 3

Review shielding need

If EMI conditions are stronger, compare this cable with shielded alternatives before finalizing the order.

Step 4

Confirm electrical values

Verify impedance, attenuation, bending limits and installation temperature before procurement.

Compare CAT 5E U UTP with Related LAN Cables

These internal links are positioned to support both user navigation and category hierarchy. Buyers comparing shielding level, frequency range or project class can move directly to the most relevant alternative.

CAT 5e F/UTP

Shielded alternative for projects that need added protection compared to CAT 5E U UTP.

CAT 6 U/UTP

Upgrade path for installations that need Category 6 performance without moving to shielding.

CAT 6 SF/UTP

Useful where higher performance and stronger shielding requirements come together.

CAT 7 S/FTP

Higher-category option for demanding data infrastructure and more advanced shielding needs.

CAT 7A S/FTP

For projects targeting a more advanced performance class than CAT 5E U UTP.

All Data LAN Cables

See the wider category page to compare data LAN and fiber cable families within the same product hub.

CAT 5E U UTP FAQ

What is CAT 5E U UTP cable used for?

It is used for structured voice and data cabling in standard LAN installations, especially where Gigabit Ethernet capability and cost efficiency are both important.

What is the maximum frequency of CAT 5E U UTP?

This cable is specified for performance up to 100 MHz.

Does CAT 5E U UTP have shielding?

No. U/UTP is an unshielded cable design. If the installation environment requires more EMI protection, a shielded option should be considered.

Which sheath options are available?

CAT 5E U UTP can be supplied with PVC, HFFR or PE outer sheath depending on the project requirement.

When should I move from CAT 5E U UTP to a higher category?

If your project needs stronger shielding, higher bandwidth headroom or a more advanced category target, compare CAT 5E U UTP with CAT 6, CAT 6 shielded or CAT 7 level alternatives.

Need a quotation for CAT 5E U UTP cable?

Contact UPCOM for project-based supply support, datasheet confirmation and alternative category suggestions for your LAN cabling requirement.
