W-Line Wall Mount Rack Cabinet · SKU UP-4UDVT-550X450
4U 550×450 Wall Mount Rack Cabinet – W-Line
4U 550x450 wall mount rack cabinet is the compact W-Line configuration for small network and structured cabling installations where standard 19-inch mounting is required without using floor space. The approved drawing defines a 550 mm cabinet width, 450 mm depth and 237 mm external height.
| UPCOM code | UP-4UDVT-550X450 |
| Rack height | 4U |
| External dimensions | 550 W × 450 D × 237 H mm |
| Mounting format | 19 inch; drawing shows 465 mm mounting width |
| Application | Indoor network / telecom distribution |
| Protection | IP20 series configuration |
| Colors | RAL 9005 Black / RAL 7035 Light Grey |
4U 550x450 Wall Mount Rack Cabinet Specifications
| Parameter | Specification |
|---|---|
| Series | W-Line wall mount rack cabinet |
| Product code | UP-4UDVT-550X450 |
| Rack capacity | 4U |
| External width | 550 mm |
| External depth | 450 mm |
| External height | 237 mm |
| Mounting system | 19-inch rails; 465 mm mounting width shown on approved drawing |
| Front access | Front glass door shown on approved drawing |
| Cable entry | Brushed cable entry shown in exploded view |
| Ventilation | Top panel prepared for fan / ventilation openings |
| Environment | Indoor, IP20 W-Line configuration |
W-Line 4U Cabinet Construction and Layout
Serviceable enclosure
- Front carrier frame with glass door
- 19-inch mounting rails for standard rack equipment
- Removable mounting plate shown in the approved exploded view
- Rear carrier frame and panelized construction for wall installation
Cabling and ventilation
- Brushed cable-entry provision for cleaner routing
- Top ventilation / fan openings for optional active airflow
- 450 mm cabinet depth intended for compact network equipment
- For deeper equipment, compare the 550×550 mm W-Line version
Dimensions and Approved Drawing Data
The approved 4U drawing confirms 550 mm width, 450 mm depth and 237 mm external height. It also shows a 465 mm 19-inch mounting width. The approved technical drawing is shown below and can be opened as a PDF for detailed review.
Dimensions are stated in millimetres. Always verify the installed device depth, rear connectors and cable bend allowance before final cabinet selection.
Typical Applications for a 4U 550x450 Cabinet
- Small office network distribution points
- Compact patch-panel and switch installations
- Retail, branch-office and backroom structured cabling
- CCTV / IP surveillance network termination points
- Telecom distribution locations where floor-standing cabinets are unnecessary
How to Check Equipment Fit Before Ordering
- Count the required rack units. Include the switch, patch panel and any cable-management components within the 4U limit.
- Check equipment depth. Allow clearance behind the device for connectors, power leads and cable bend radius.
- Confirm 19-inch mounting. The drawing shows the standard 465 mm mounting width used by 19-inch rack equipment.
- Review heat load. Keep ventilation openings clear and specify the optional fan module where required.
- Check the wall structure. Select wall anchors according to the wall material and final loaded cabinet weight.

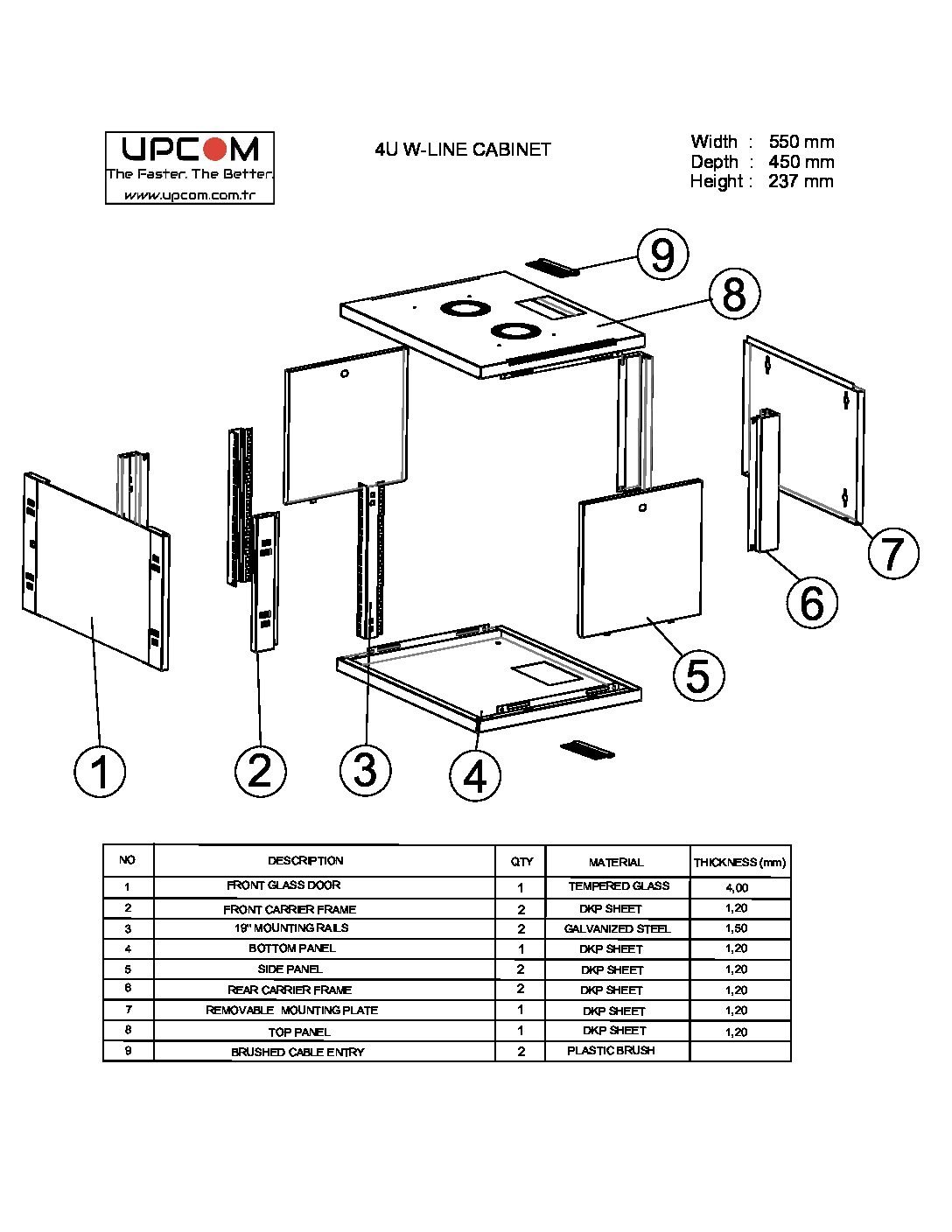

4U 550x450 Wall Mount Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify cabinet dimensions, 19-inch mounting layout, cable-entry provisions and enclosure construction before ordering.
Related Products and Technical Guides
4U 550x450 Wall Mount Rack Cabinet FAQ
What are the external dimensions of this 4U cabinet?
The approved drawing shows 550 mm width, 450 mm depth and 237 mm external height.
What is the difference between the 550x450 and 550x550 W-Line versions?
Both use the same 550 mm cabinet width. The 550x550 version adds 100 mm of depth, which is useful for deeper equipment and additional rear cabling clearance.
Is this cabinet suitable for outdoor installation?
No. W-Line is intended for indoor IP20 installations. For outdoor sites, select an IP66 outdoor cabinet.
Can a fan module be added?
The W-Line top panel is prepared for optional ventilation / fan installation. The requirement depends on the heat load of the installed equipment.
What is the UPCOM product code?
The product code for the 4U 550x450 W-Line cabinet is UP-4UDVT-550X450.
Request a Quote
For an accurate quotation, send the quantity, destination country/city, preferred color and fan-module requirement.
