IP66 outdoor cabinet - IP Rated Outdoor Cabinets
Guard Box – IP66 Outdoor Cabinet
Guard Box was previously named Guard Box LXR. The Guard Box Basic model has been discontinued.

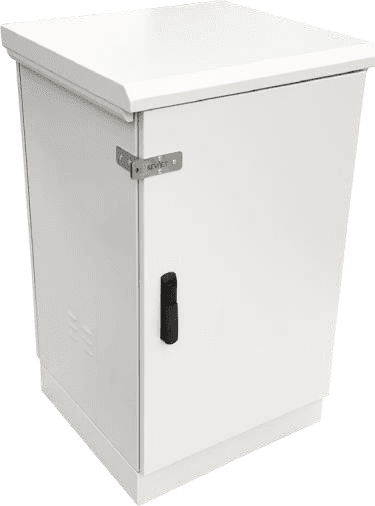

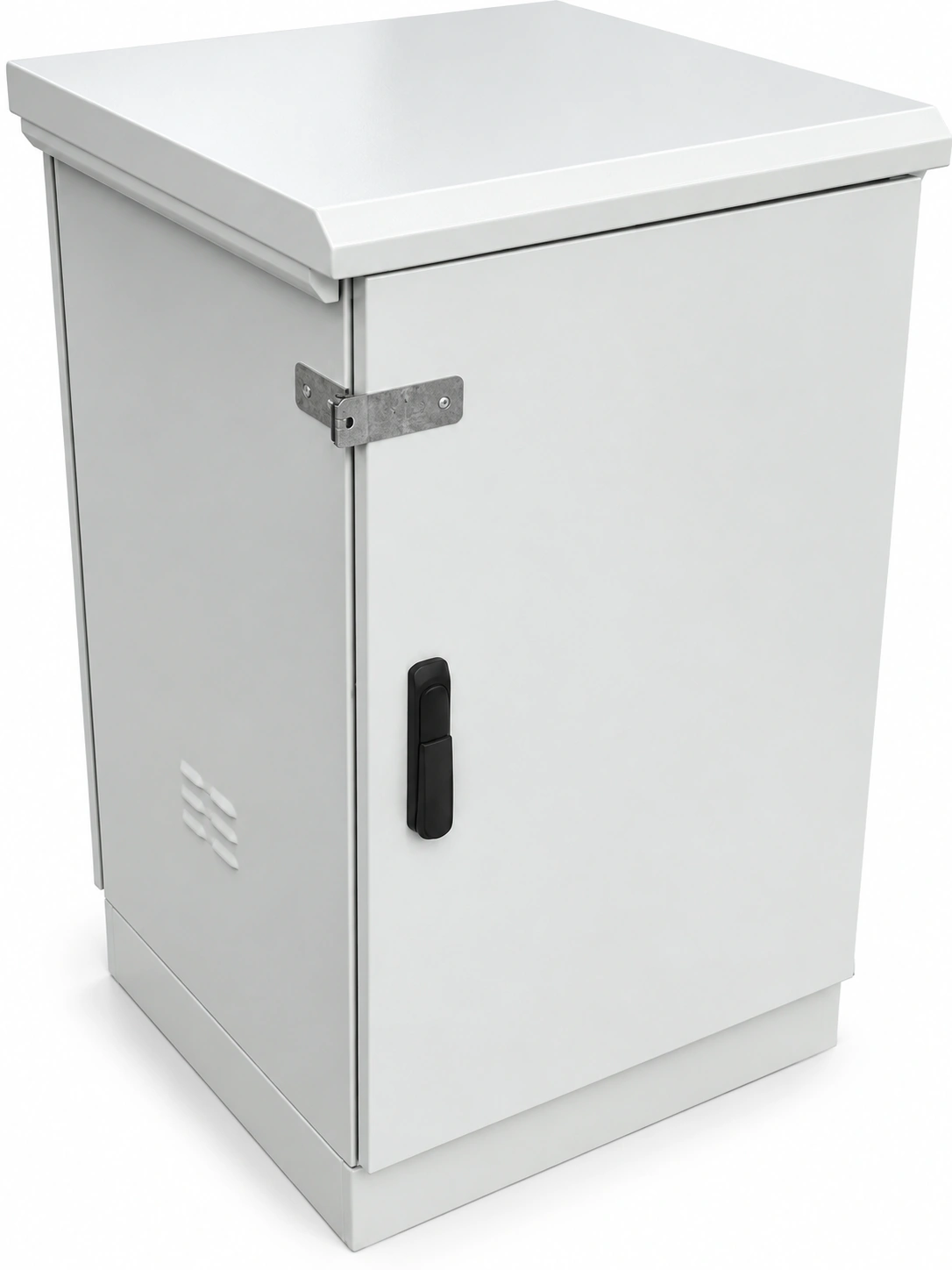

IP66 outdoor cabinet Guard Box is engineered to protect telecom, network and power equipment in harsh environments. A mono-block welded body, sealed door gaskets and an insulated structure help maintain protection against dust, water ingress and corrosion during long-term field deployments.
19-inch rack reference: 19” Rack Cabinet Standard . For IP code classification: IEC 60529 (IP ratings) .
IP66 outdoor cabinet installation options

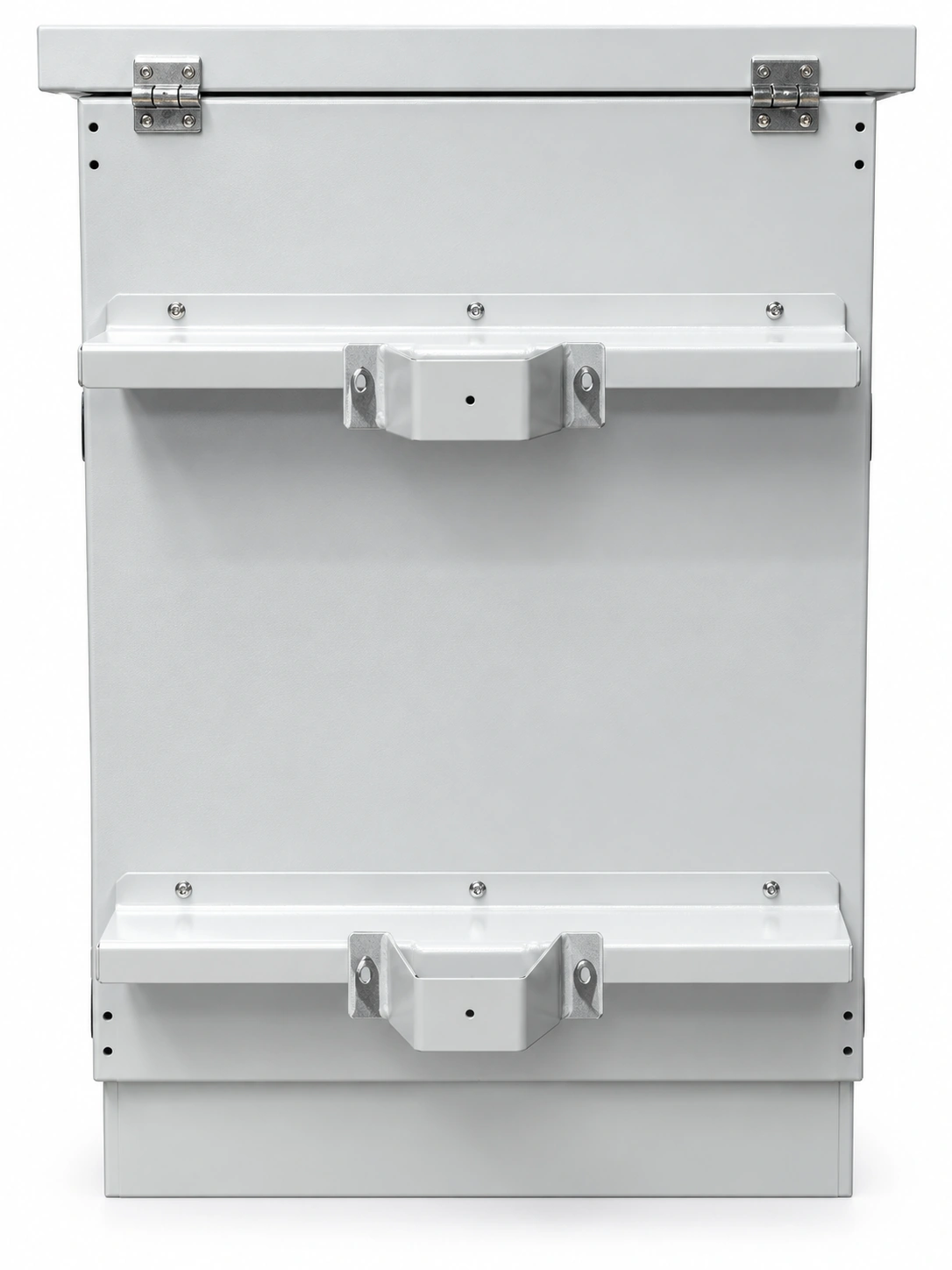

Guard Box supports pole (mast) mounting, wall mounting and field installation (with plinth). Cable entry and grounding points are positioned for practical site installation and maintenance.
- Wall mount: compact footprint for building façades and perimeter installations
- Pole/mast: fast deployment for access networks and roadside infrastructure
- Field type: plinth-mounted cabinets for ground-level outdoor sites
IP66 outdoor cabinet construction
Mono-block welded body
The enclosure uses mono-block welding to reduce structural gaps, improve rigidity and lower long-term deformation risk in outdoor use. A fully gasketed door design helps maintain IP performance in real field conditions.
Material & corrosion protection
- Body: DX51D+Zn275 galvanized steel
- Outdoor-grade polyester coating (RAL 7035)
- Salt spray resistance claim is project dependent
- Insulation layer: 10 mm

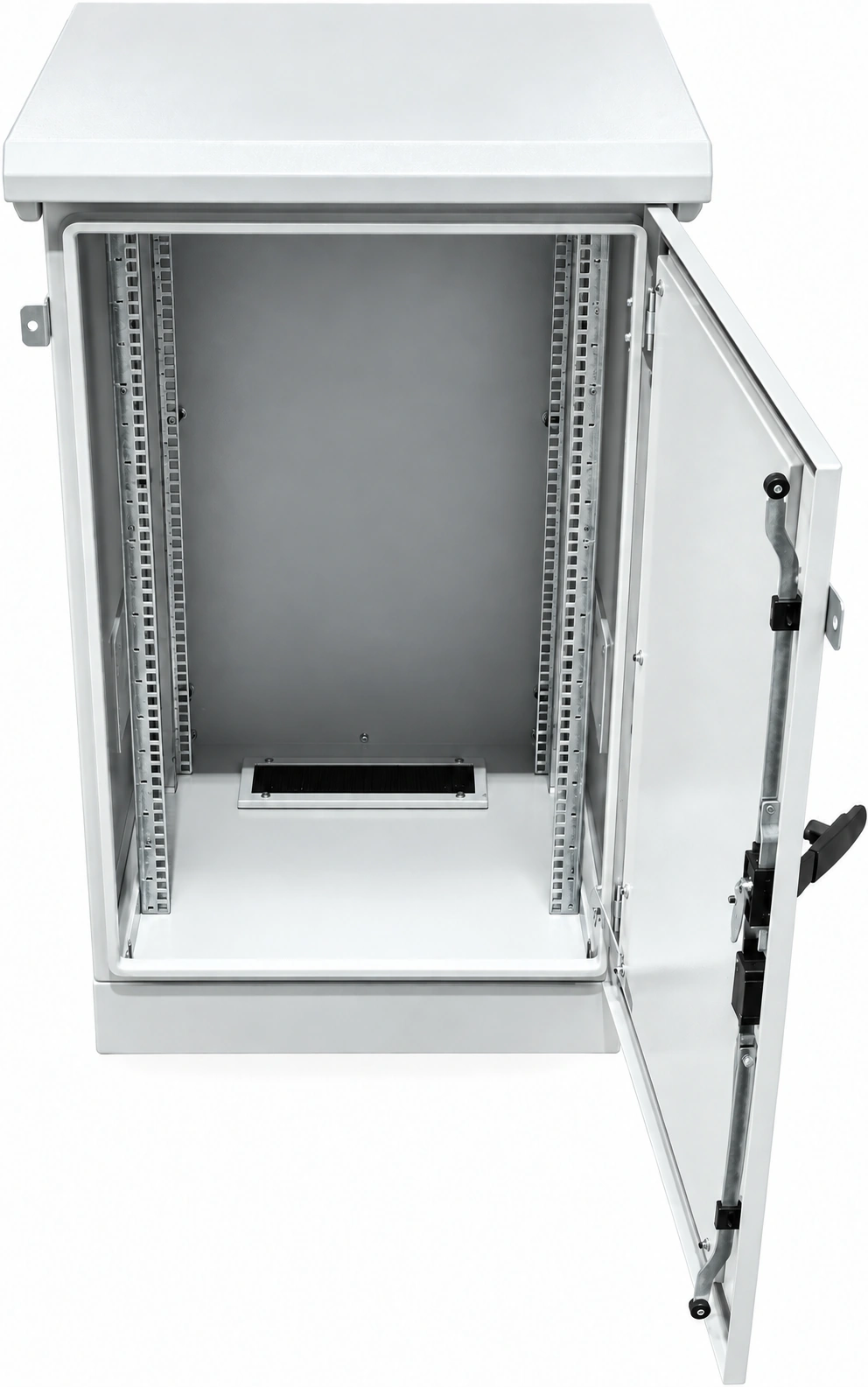

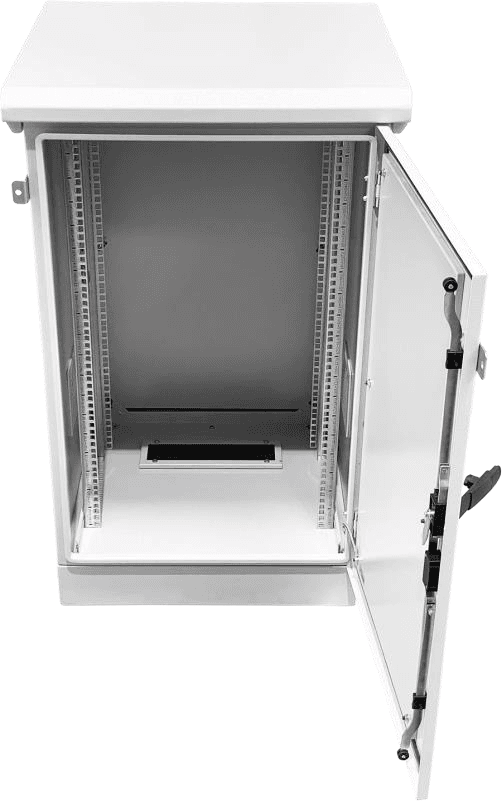

Rack sizes and dimensions
| Rack height | Width | Depth |
|---|---|---|
| 7U | 600 mm | 450 / 600 mm |
| 9U | 600 mm | 450 / 600 mm |
| 12U | 600 mm | 450 / 600 mm |
| 16U | 600 mm | 450 / 600 mm |
| 20U | 600 mm | 450 / 600 mm |
Available rack heights: 7U, 9U, 12U, 16U and 20U. Confirm external height, usable depth and installation clearances against the selected cabinet drawing. Field versions include a 100 mm plinth.
IP66 outdoor cabinet Thermal management
Outdoor cabinets are exposed to direct sunlight and rapid ambient changes. Guard Box uses insulation and controlled airflow to support stable internal operating conditions. Thermostat-controlled fans operate only when needed, helping reduce unnecessary dust intake while maintaining airflow efficiency.

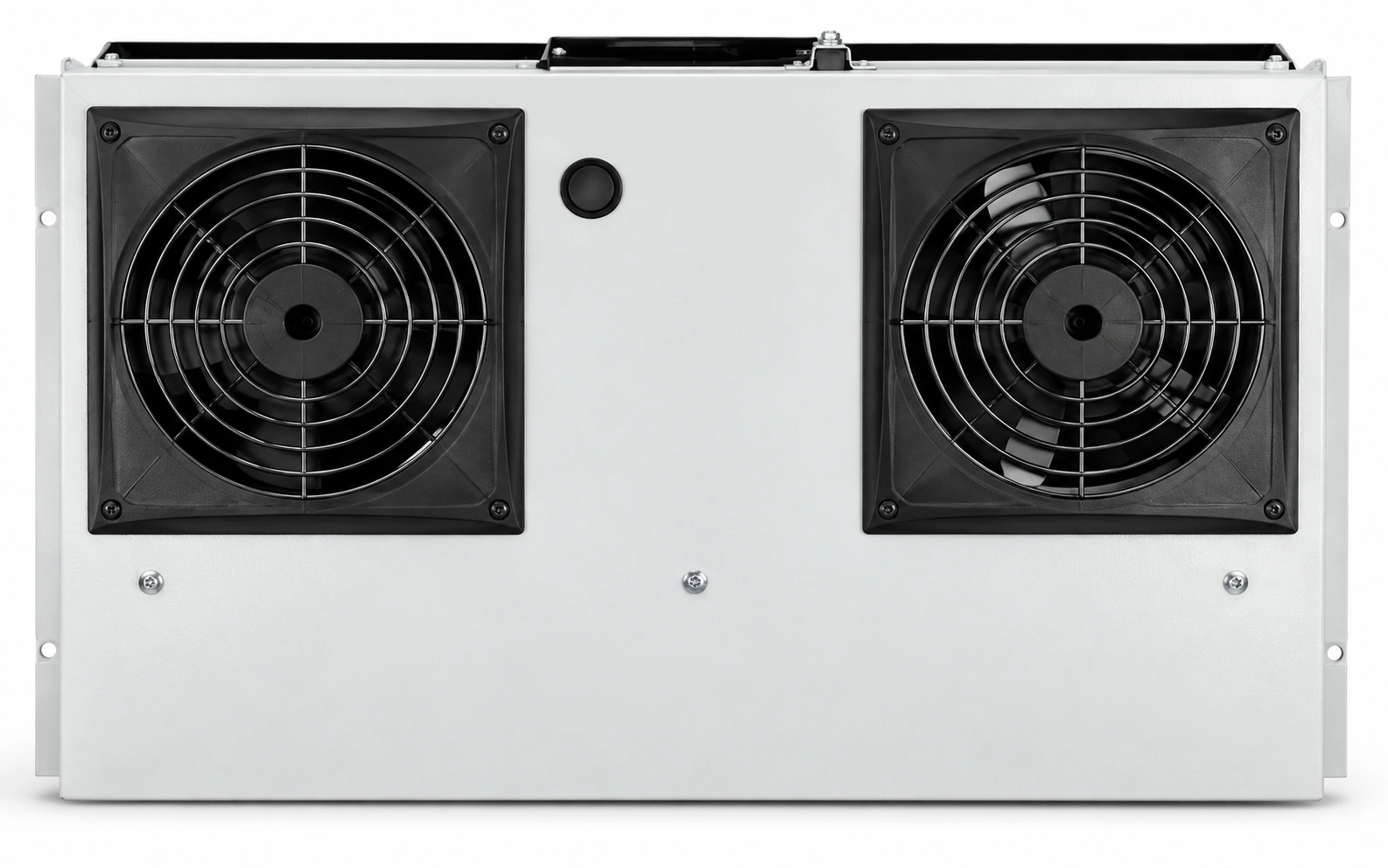

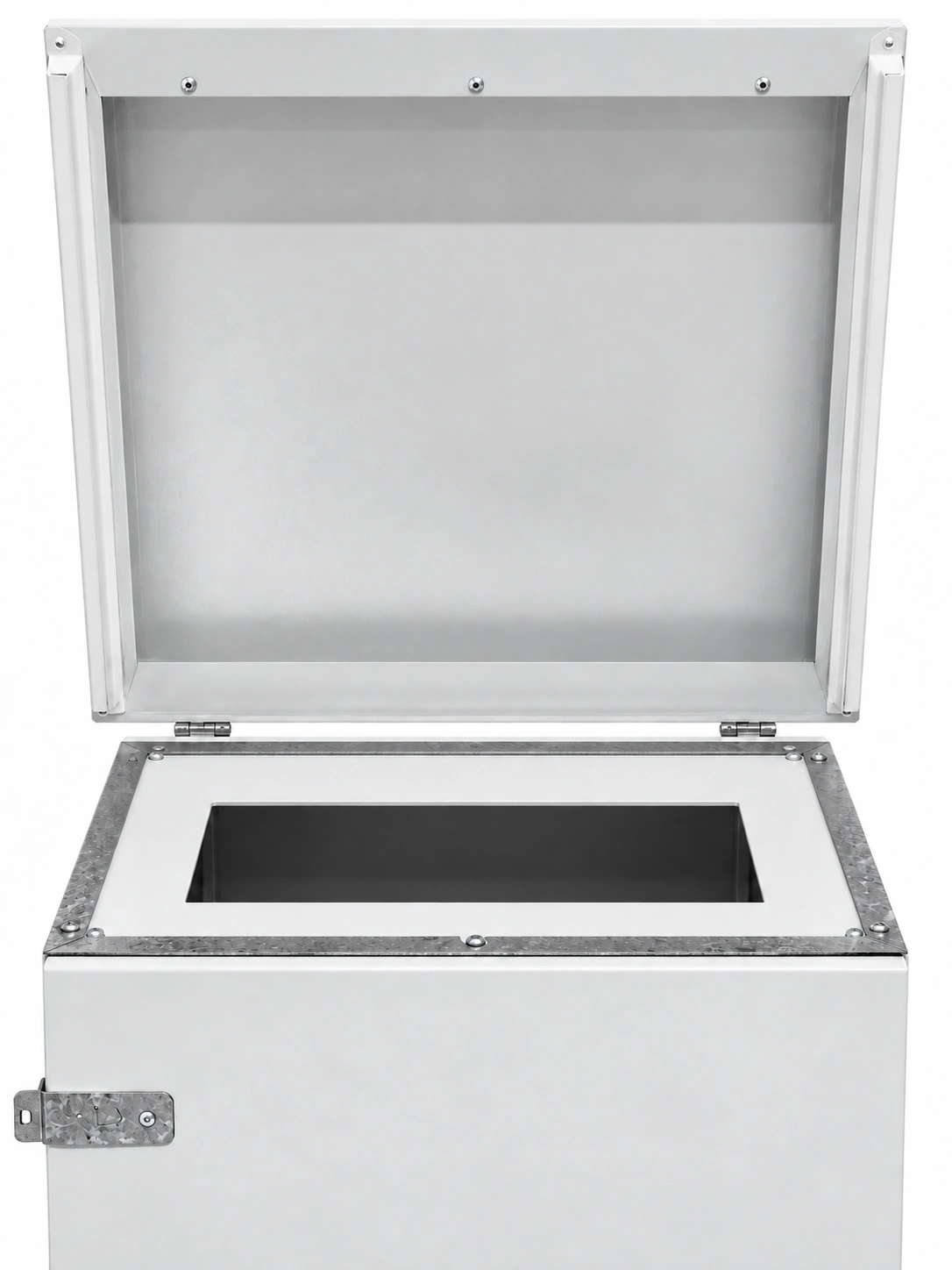

- Fan + filter ventilation on canopy roof (configuration dependent)
- Thermostat control for temperature-based operation
- For high dissipation equipment, AC option is recommended
IP66 outdoor cabinet features
- IP66 protection with sealed construction
- Mono-block fully welded cabinet body
- DX51D+Zn275 galvanized steel structure
- Outdoor polyester coating (RAL 7035)
- Insulation layer (10 mm)
- Single-skin and double-skin options
- Filtered fan ventilation system
- Lockable front door
- Grounding connection
- Practical cable entry points
Applications
Typical IP66 outdoor cabinet applications include telecom access networks, power distribution and roadside infrastructure.
- Telecommunication infrastructure
- FTTx distribution networks
- Traffic control systems
- Security and surveillance systems
- Industrial automation systems
Standards & compliance
- EN 61587-1 (mechanical structure reference)
- EN 60529 / IEC 60529 (IP code reference)
- CE / RoHS / REACH (project dependent documentation)
External references: IP code overview · 19-inch rack overview
Ordering codes
Z = field type with 100 mm plinth; D = wall mounting; W suffix = double layer. All cabinets below are 600 mm wide. Pole mounting accessories and the complete cooling configuration must be specified separately.
450 mm
| Rack height | Field / single layer | Field / double layer | Wall / single layer | Wall / double layer |
|---|---|---|---|---|
| 7U | UPC-EXT-7U450Z | UPC-EXT-7U450ZW | UPC-EXT-7U450D | UPC-EXT-7U450DW |
| 9U | UPC-EXT-9U450Z | UPC-EXT-9U450ZW | UPC-EXT-9U450D | UPC-EXT-9U450DW |
| 12U | UPC-EXT-12U450Z | UPC-EXT-12U450ZW | UPC-EXT-12U450D | UPC-EXT-12U450DW |
| 16U | UPC-EXT-16U450Z | UPC-EXT-16U450ZW | UPC-EXT-16U450D | UPC-EXT-16U450DW |
| 20U | UPC-EXT-20U450Z | UPC-EXT-20U450ZW | UPC-EXT-20U450D | UPC-EXT-20U450DW |
600 mm
| Rack height | Field / single layer | Field / double layer | Wall / single layer | Wall / double layer |
|---|---|---|---|---|
| 7U | UPC-EXT-7U600Z | UPC-EXT-7U600ZW | UPC-EXT-7U600D | UPC-EXT-7U600DW |
| 9U | UPC-EXT-9U600Z | UPC-EXT-9U600ZW | UPC-EXT-9U600D | UPC-EXT-9U600DW |
| 12U | UPC-EXT-12U600Z | UPC-EXT-12U600ZW | UPC-EXT-12U600D | UPC-EXT-12U600DW |
| 16U | UPC-EXT-16U600Z | UPC-EXT-16U600ZW | UPC-EXT-16U600D | UPC-EXT-16U600DW |
| 20U | UPC-EXT-20U600Z | UPC-EXT-20U600ZW | UPC-EXT-20U600D | UPC-EXT-20U600DW |
Thermal management accessories
| Code | Accessory |
|---|---|
| F08IST-50W | 50 W cabinet heater with thermostat |
| F08IST-100W | 100 W cabinet heater with thermostat |
| UPC-F024F1OT | Outdoor cooling unit, 1 fan, digital thermostat |
| UPC-F024F2OT | Outdoor cooling unit, 2 fans, digital thermostat |
IP66 protection applies to the complete specified assembly, including cable entries and cooling configuration. Confirm the required protection level when selecting fans, filters and cable glands.
How to select an IP66 outdoor cabinet
- Choose installation type: wall, pole/mast, or field (plinth) based on site layout.
- Size the cabinet: pick U height and depth to fit equipment + cable bend radius.
- Define cooling need: fan-filter for moderate heat; AC option for higher heat loads.
- Select single/double layer: double layer improves thermal stability in hot sun exposure.
- Plan security & access: locking, grounding, and maintenance access points.
FAQ
What does IP66 mean for an outdoor cabinet?
IP66 indicates full dust protection and protection against powerful water jets (IEC 60529). It is used when dust and water exposure are expected in the field.
When should I choose AC instead of fan-filter ventilation?
If equipment heat load is high or the cabinet is exposed to strong sun and high ambient temperatures, AC provides a more stable internal temperature. For AC builds, use the IP66 cabinet with AC option.
Single layer vs double layer: what changes?
Double layer adds an extra protection/insulation effect that reduces thermal swings. Selection depends on climate, sun exposure, and equipment heat load.
Is this cabinet related to indoor rack cabinets?
This is an outdoor IP-rated enclosure. For indoor installations, see the rack cabinet series or wall mount rack cabinets.
