UP-SC-PDU-19IN-OF-1U-4P · Single phase · 19-inch rack

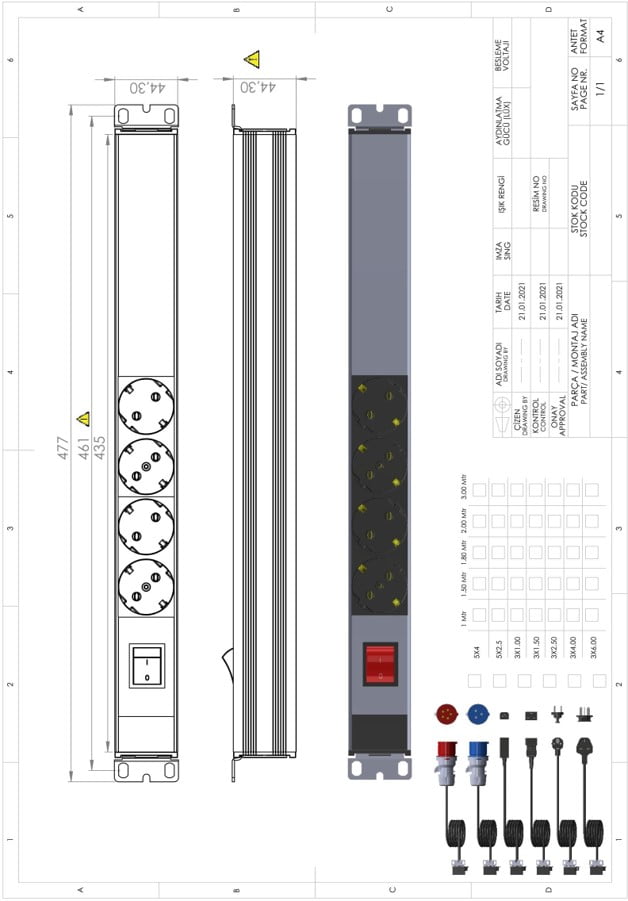

4-Way Schuko Rack PDU with ON/OFF Switch
The 4-way Schuko rack PDU distributes AC power to equipment in a 19-inch cabinet. This model has a 1U aluminum body, four Schuko outlets and a local ON/OFF switch. The model datasheet specifies a 1.8 m, 3 × 1.5 mm² supply cable with a 16 A French plug.
Select this configuration for local rack power distribution. The ON/OFF switch is a switching function; a circuit breaker, surge protection or meter must be separately specified when required.
1U / 19-inchRack mounting
4 outletsSchuko DIN 49440
16 AMaximum total current
100–240 VACPublished input range
4-Way Schuko PDU Specifications
| Parameter | Published model information |
|---|---|
| Body | Aluminum |
| Plastic parts | Fire-retardant nylon 6, V0 or V2 option |
| Outlet quantity / type | 4 × Schuko, DIN 49440 |
| Rack format | 19-inch, 1U; rotating mounting ears |
| Input voltage | 100–240 VAC |
| Maximum total current | 16 A for the specified configuration |
| Model cable / input plug | 1.8 m; 3 × 1.5 mm²; 16 A French plug |
| Socket contacts | Brass |
| Operating temperature | −5 °C to +45 °C |
| Storage temperature | −25 °C to +65 °C |
| Operating humidity | 5–95%, as listed |
| Package | PDU and installation screw/nut set |
The permitted load is limited by the complete assembly, including input plug, cable, outlets and protective devices. Confirm the power rating for your supply voltage and ordered configuration; a nominal wattage must not override the 16 A current limit.
Input Cable, Metering and Protection Options
The PDF lists 1.5, 1.8, 2, 3 and 5 m cable lengths and alternative conductor sizes. Plug alternatives include IEC C14, CEE 16 A and UK 13 A configurations. These alternatives have their own current limits and require a separate order specification.
Surge protection, circuit breaker, voltmeter/ammeter, color and 3/6/9/12-outlet variants are options in the family. They are not all standard features of this four-outlet ON/OFF model.
Check Rack Fit and Connected Load
- Confirm 1U space, mounting position and accessibility to the switch.
- Match the input plug to the supply outlet and protective circuit.
- State equipment loads and confirm the aggregate current for the complete PDU.
- Specify required circuit protection and any meter before ordering.
- Confirm cable length, connector, labeling, quantity and delivery location.
Installation and electrical connection must follow the supplied instructions and site requirements. Do not use a local switch as a substitute for circuit protection.
Schuko Rack PDU FAQ
Does this ON/OFF model include a circuit breaker?
The product is specified with a local ON/OFF switch. The PDF lists circuit-breaker and surge-protection options separately; confirm them in the quotation.
Is 16 A available with every plug option?
No. The complete assembly is limited by its lowest-rated component. A UK 13 A or IEC C14 alternative must not be treated as identical to the specified 16 A French-plug configuration.
Can I change cable length or outlet count?
The datasheet lists cable length and outlet count options. State the requested configuration so its rating, dimensions and price can be confirmed.
