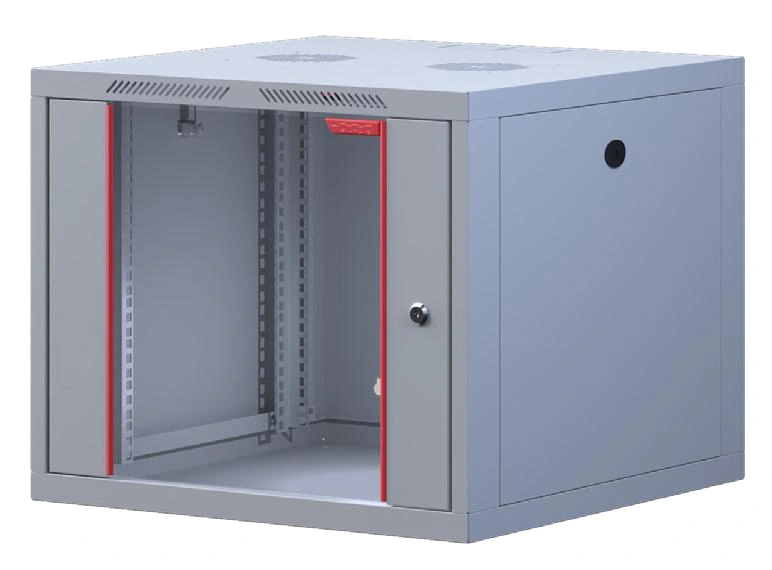

7U 553x560 Wall Mount Rack Cabinet - Alpine Line
7U 553x560 wall mount rack cabinet from the Alpine Line series provides 19-inch rack mounting for indoor network and structured-cabling installations. This model measures 553 x 560 x 371 mm (W x D x H), weighs 16 kg and has a 120 kg load capacity.
| Order code | UPC-ALPI-7U560 |
|---|---|
| External W x D x H | 553 x 560 x 371 mm |
| Internal height h | 314 mm |
| Cabinet weight | 16 kg |
| Fan provision | Optional 1- or 2-fan cooling units |
7U 553x560 Wall Mount Rack Cabinet Specifications
| Series | Alpine Line |
|---|---|
| Order code | UPC-ALPI-7U560 |
| Rack capacity | 7U |
| External dimensions | 553 x 560 x 371 mm (W x D x H) |
| Internal height h | 314 mm |
| Cabinet weight | 16 kg |
| Load capacity | 120 kg |
| Mounting format | 19 inch |
| Mounting rails | 4 depth-adjustable rails with U markings |
| Side access | Removable, lockable side panels |
| Door / panel | Metal-framed front door with 4 mm smoked tempered glass |
| Locking hardware | Round O-lock / barrel lock |
| Fan provision | Optional cooling units with 1 or 2 fans |
| Cable entry | Top, bottom and rear |
| Material and finish | Steel / DKP; electrostatic powder coating |
| Colours | RAL 7035 light grey or RAL 9005 black |
| Protection / environment | IP20 / indoor |
Choosing the 7U 560 mm Deep Cabinet
A compact distribution point for a small patch panel and compatible network equipment. Reserve U space for cable management and future changes.
The 560 mm external depth provides more cabinet projection than the 450 mm version while retaining a 553 mm external width. Verify the equipment and connector clearances against the mounting arrangement.
External cabinet depth is not the maximum usable equipment depth. Confirm rail position, rear connectors, cable bend space and ventilation clearance before ordering. The wall and fixing arrangement must be suitable for the installed load.
Alpine Line Construction Details
Source drawings are shared within this depth family. Consult the selected model table for its external H and internal h dimensions. Click a drawing to enlarge it.
The metal-framed front door uses 4 mm smoked tempered glass with a round O-lock / barrel lock. Optional cooling units with one or two fans can be specified separately.
Depth-adjustable, U-marked rails support equipment positioning. Removable locking side panels provide access for installation and maintenance. Cable entries at the top, bottom and rear help route incoming cabling.
7U 553x560 Cabinet Dimensions and Datasheet
| External W x D x H | 553 x 560 x 371 mm |
|---|---|
| Internal height h | 314 mm |
The individual three-page datasheet includes the original technical views and exploded construction drawing for the 560 mm depth family, together with this model’s dimensions and order code.
7U 553x560 Wall Mount Rack Cabinet FAQ
What order code identifies this model?
Use UPC-ALPI-7U560 for the 7U, 553 mm wide and 560 mm deep Alpine Line cabinet. Its external height is 371 mm.
Are fans included?
Fan units are optional. Cooling units with one or two fans can be specified separately in the quotation.
Can this cabinet be used outdoors?
This IP20 cabinet is intended for indoor installations. Select an enclosure designed for the required outdoor environment when weather exposure is expected.
How do I check whether my equipment will fit?
Check rack height, equipment depth, connectors, cable bend space and rail positioning. Contact UPCOM with the equipment dimensions for selection support.
