U-DQ(BN)H-CLT

U-DQ(BN)H-CLT; U-DQ(ZN)BH; indoor and outdoor use; universal type fiber optic cable;

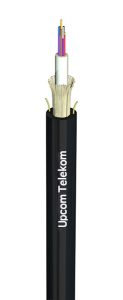

The Universal Fiber Optic Cable -Central Loose Tube, Non-Metallic Armored Fiber Optic Cable, Also called U-DQ(ZN)H or U-DQ(ZN)BH) are the economical option for low fiber counts, suitable for indoor and outdoor use. Robust structure is a good solution for access and distribution for inside the building for FTTX, FTTH application or those areas where the fiber optic cable may not be exposed to heavy physical damage. The fibers are placed within a gel-filled loose tube. For low core counts up to 12 FO, Universal cables shall be protected from the heavy mechanical damage risk exists. Glass yarns are applied over the tube increasing pulling strength of cable to provide additional tensile strength & rodent protection. Low Smoke Zero Halogen Free sheath which is resistant to stress cracking and UV radiation. Fully dielectric construction protects the fiber optic cable and also the devices connected from the electric shocks or magnetic interferences and also gives flexibility. On request following options are available:

Other number of tubes Colour options for sheath, tube and fiber

Increased Tensile strength (Aramid or Glass Yarn)

L-M-HDPE or LSZH sheath.
U-DQ(ZN)BH version with aramid yarn dielectric strength member is available.

Compliance – Universal Fiber Optic Cable


  • IEC 60754-1, IEC 61034-1&2, IEC 60332-1, IEC 60794-1&2

Application


  • Inter Building and Intra-building Voice or Data Communication Networks
  • General Purpose
  • Installed in Ducts & Conduits
  • Secondary Distribution
  • LAN
  • FTTB Cabling
  • Campus Cabling
  • Indoor and Outdoor (Universal Use)
  • Telecommunication Data Trunk Systems
  • Interconnection of Distribution Boxes, Distribution Frames and the Panels at Customer Side

FEATURES AND BENEFITS – Universal Fiber Optic Cable


  • Dry interstices,
  • Compact
  • Waterproof
  • Non-Metallic Armored Loose Tube
  • Jelly Filled Resistant
  • All Dielectric
  • HFFR Flame Retardant
  • Light Weight
  • Rodent Resistant
  • Enforcement with Non-Metallic Strength Members

Specification


Fibers 2 4 6 8 12
Loose Tube Ø (mm) 2.9±0.2
Loose Tube Jacket PBT
Strength members Water Blocking Glass Yarn
Outer jacket LSZH
Weight (Kg/Km) ±5 36 36 36 36 36
Outer Ø (mm) ±0,5 6.0 6.0 6.0 6.0 6.0
Max Pulling Load (N) 1000 1000 1000 1000 1000
Optical Characteristic   62,5/125 OM1 50/125 OM2 50/125 OM3 50/125 OM4
Bandwidth (nm) Attenuation 850/1300 850/1300 850/1300 850/1300
 (max dB/km ) 3.2/1.2 3.0/1.0 2.8/0.8 2.7/0.7
Crush (N) 2000 (IEC 60794-1-2 E3)
Temperature Range -40 ºC to +70 ºC (IEC 60794-1-2 F1)
Fluid Penetration 3m sample, 1m head for 24 hours
Min. Bending Radius 20 x Outer Ø (IEC 60794-1-2 E11)
