FS Line Server Rack Cabinet · SKU UP-45U-SV-DKL-60X100
45U 600×1000 Server Rack Cabinet – FS Line
45U 600x1000 server rack cabinet is an FS Line configuration for server rooms and data centers that require perforated doors, 19-inch mounting and service access around deep IT equipment. 600 mm width keeps the cabinet footprint compact. 1000 mm depth suits many standard server and IT installations.
| UPCOM code | UP-45U-SV-DKL-60X100 |
| Rack height | 45U |
| Width | 600 mm |
| Depth | 1000 mm |
| Rack format | 19 inch |
| Doors | Perforated front and rear |
Why Choose a 45U 600x1000 Server Rack Cabinet?
600 mm width keeps the cabinet footprint compact.
1000 mm depth suits many standard server and IT installations.
Typical Applications
- Server rooms and data centers
- Enterprise IT infrastructure
- Server, storage and network equipment
- Telecom core rooms
- High-density rack installations

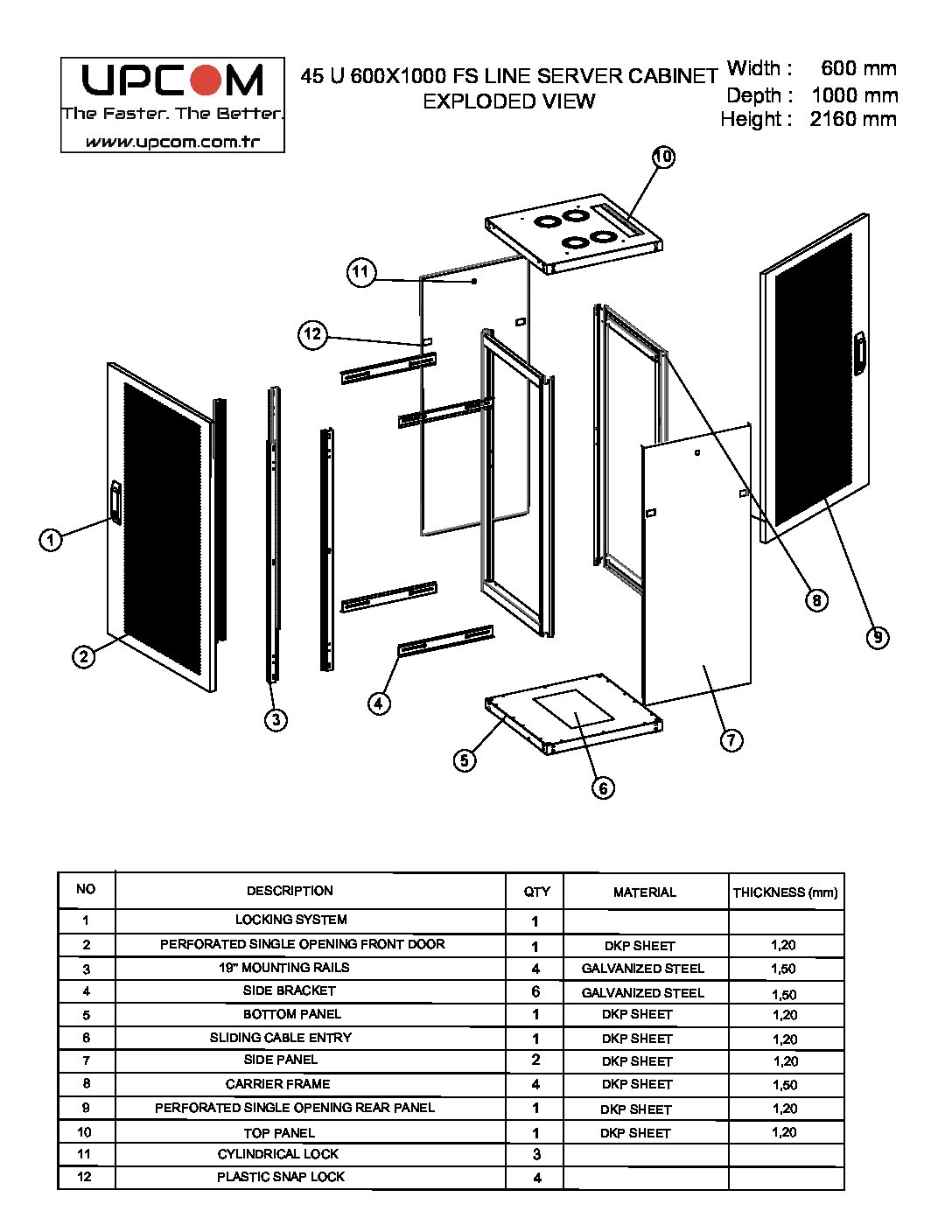

45U 600x1000 Server Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify external dimensions, 19-inch mounting rails, perforated door configuration, cable entry and server clearance before ordering.
Related Products and Guides
45U 600x1000 Server Rack Cabinet FAQ
What is the UPCOM product code?
UP-45U-SV-DKL-60X100.
Why choose 1000 mm depth?
1000 mm depth suits many standard server and IT installations.
What does 600 mm width change?
600 mm width keeps the cabinet footprint compact.
