FS Line Server Rack Cabinet · SKU UP-45U-SV-DKL-60X120
45U 600×1200 Server Rack Cabinet – FS Line
45U 600x1200 server rack cabinet is an FS Line configuration for server rooms and data centers that require perforated doors, 19-inch mounting and service access around deep IT equipment. 600 mm width keeps the cabinet footprint compact. 1200 mm depth provides additional clearance for deep server chassis, rear cabling and service access.
| UPCOM code | UP-45U-SV-DKL-60X120 |
| Rack height | 45U |
| Width | 600 mm |
| Depth | 1200 mm |
| Rack format | 19 inch |
| Doors | Perforated front and rear |
Why Choose a 45U 600x1200 Server Rack Cabinet?
600 mm width keeps the cabinet footprint compact.
1200 mm depth provides additional clearance for deep server chassis, rear cabling and service access.
Typical Applications
- Server rooms and data centers
- Enterprise IT infrastructure
- Server, storage and network equipment
- Telecom core rooms
- High-density rack installations

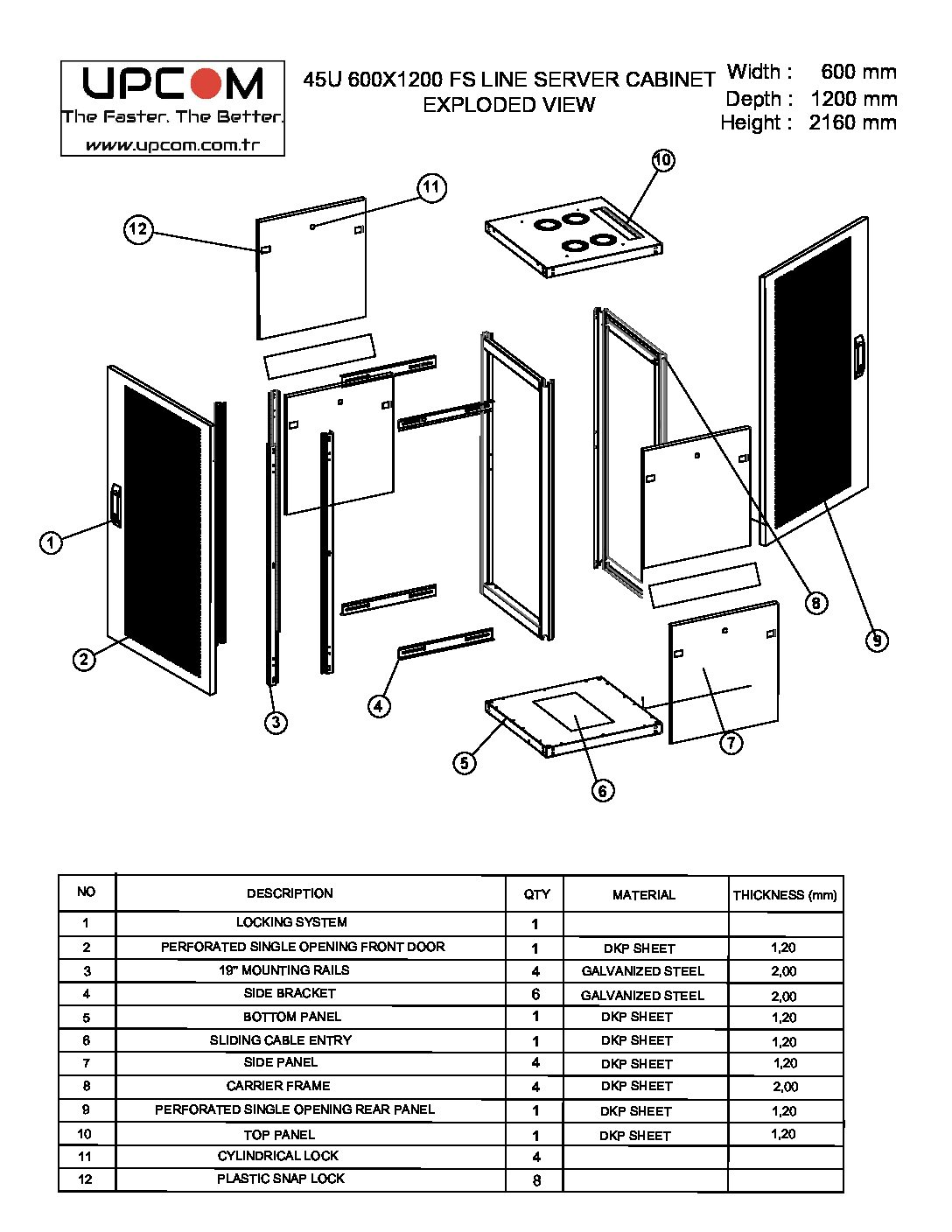

45U 600x1200 Server Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify external dimensions, 19-inch mounting rails, perforated door configuration, cable entry and server clearance before ordering.
Related Products and Guides
45U 600x1200 Server Rack Cabinet FAQ
What is the UPCOM product code?
UP-45U-SV-DKL-60X120.
Why choose 1200 mm depth?
1200 mm depth provides additional clearance for deep server chassis, rear cabling and service access.
What does 600 mm width change?
600 mm width keeps the cabinet footprint compact.
