W-Line Wall Mount Rack Cabinet · SKU UP-4UDVT-550X550
4U 550x550 wall mount rack cabinet is a 19-inch W-Line enclosure for network and structured-cabling installations where floor space is limited. This 4U configuration suits very compact installations. The 550 mm depth provides 100 mm more equipment and rear-cabling clearance than the 450 mm version.

| UPCOM code | UP-4UDVT-550X550 |
| Rack height | 4U |
| External width | 550 mm |
| External depth | 550 mm |
| External height | 237 mm |
| Mounting format | 19-inch rack rails |
| Environment | Indoor, IP20 W-Line configuration |
| Series | W-Line |
| Product code | UP-4UDVT-550X550 |
| Rack capacity | 4U |
| Width | 550 mm |
| Depth | 550 mm |
| External height | 237 mm |
| Front door | Glass or perforated metal option |
| Cooling | Optional fan module; top ventilation provisions |
| Colors | RAL 9005 Black / RAL 7035 Light Grey |
This 4U configuration suits very compact installations. The 550 mm depth provides 100 mm more equipment and rear-cabling clearance than the 450 mm version. Compare the 4U 550x450 version if your equipment depth or wall projection requirement differs.

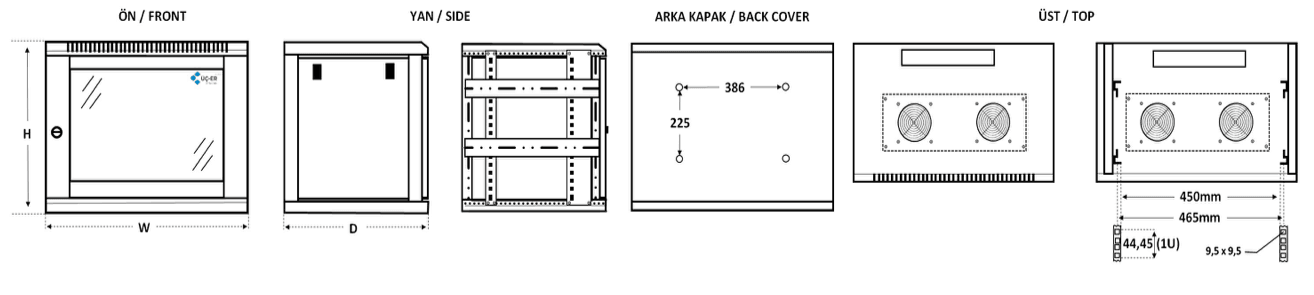

This W-Line construction view explains the cabinet structure. It is not a dimension-specific drawing for this SKU; use the 550 × 550 mm specifications on this page as the exact size reference.

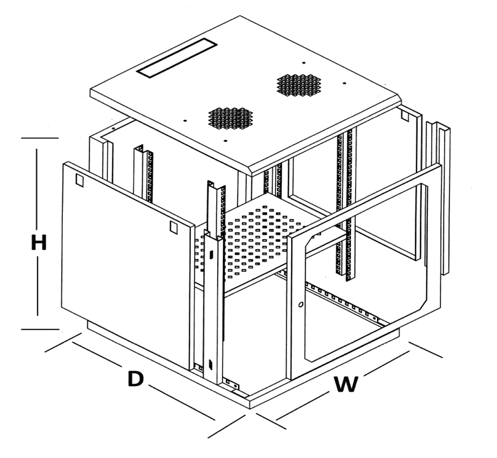

This drawing illustrates the W-Line cabinet construction and component layout. It is not the exact dimensional drawing for the 4U 550x550 configuration; use the dimensions stated in this page's technical table as the size reference.
UP-4UDVT-550X550.
Use 450 mm where wall projection must stay compact. Choose 550 mm when deeper equipment or additional rear cabling clearance is required.
No. W-Line is intended for indoor IP20 installations.
