FS Line Floor Standing Rack Cabinet · SKU UP-42UYRT-600X600
42U 600×600 Floor Standing Rack Cabinet – FS Line
42U 600x600 floor standing rack cabinet is a space-efficient 19-inch enclosure for network rooms, structured cabling and IT distribution points. The approved drawing confirms a 600 mm width, 600 mm depth and 2027 mm external height.
| UPCOM code | UP-42UYRT-600X600 |
| Rack height | 42U |
| External size | 600 W × 600 D × 2027 H mm |
| Mounting width | 465 mm / standard 19-inch format |
| Mounting rails | 4 pcs |
| Side panels | 2 removable panels shown in approved drawing |
| Environment | Indoor network / IT installation |
42U 600x600 Rack Cabinet Technical Specifications
| Parameter | Specification |
|---|---|
| Series | FS Line floor standing rack cabinet |
| Product code | UP-42UYRT-600X600 |
| Rack capacity | 42U |
| External width | 600 mm |
| External depth | 600 mm |
| External height | 2027 mm |
| 19-inch mounting width | 465 mm |
| Front door | Metal-framed glass door shown in approved drawing |
| Mounting rails | 4 pcs 19-inch rails |
| Top panel | Ventilation / fan cut-outs shown in drawing |
| Side panels | 2 pcs removable side panels |
FS Line 42U Cabinet Construction
Rack structure
- Carrier frame
- Metal-framed glass front door
- Four 19-inch mounting rails
- Top and bottom panels
- Rear panel and two side panels
- Locking system
Installation logic
- 600 mm footprint for rooms where floor area is limited
- Suitable for patch panels, switches, routers and passive network equipment
- Top ventilation provision supports optional fan configuration
- Castors and leveling feet are shown in the approved drawing
When to Choose a 42U 600x600 Rack Cabinet
A 600 mm deep cabinet is a practical choice for structured cabling and network equipment that does not require deep server chassis clearance. If the installed equipment is deeper, or rear cabling and airflow space are more demanding, compare the 600x800, 600x1000, 800x800 and 800x1000 FS Line variants before ordering.
Typical Applications
- Network and telecom rooms
- Structured cabling distribution
- Switch and patch-panel installations
- Building IT infrastructure
- Enterprise, education and industrial network rooms

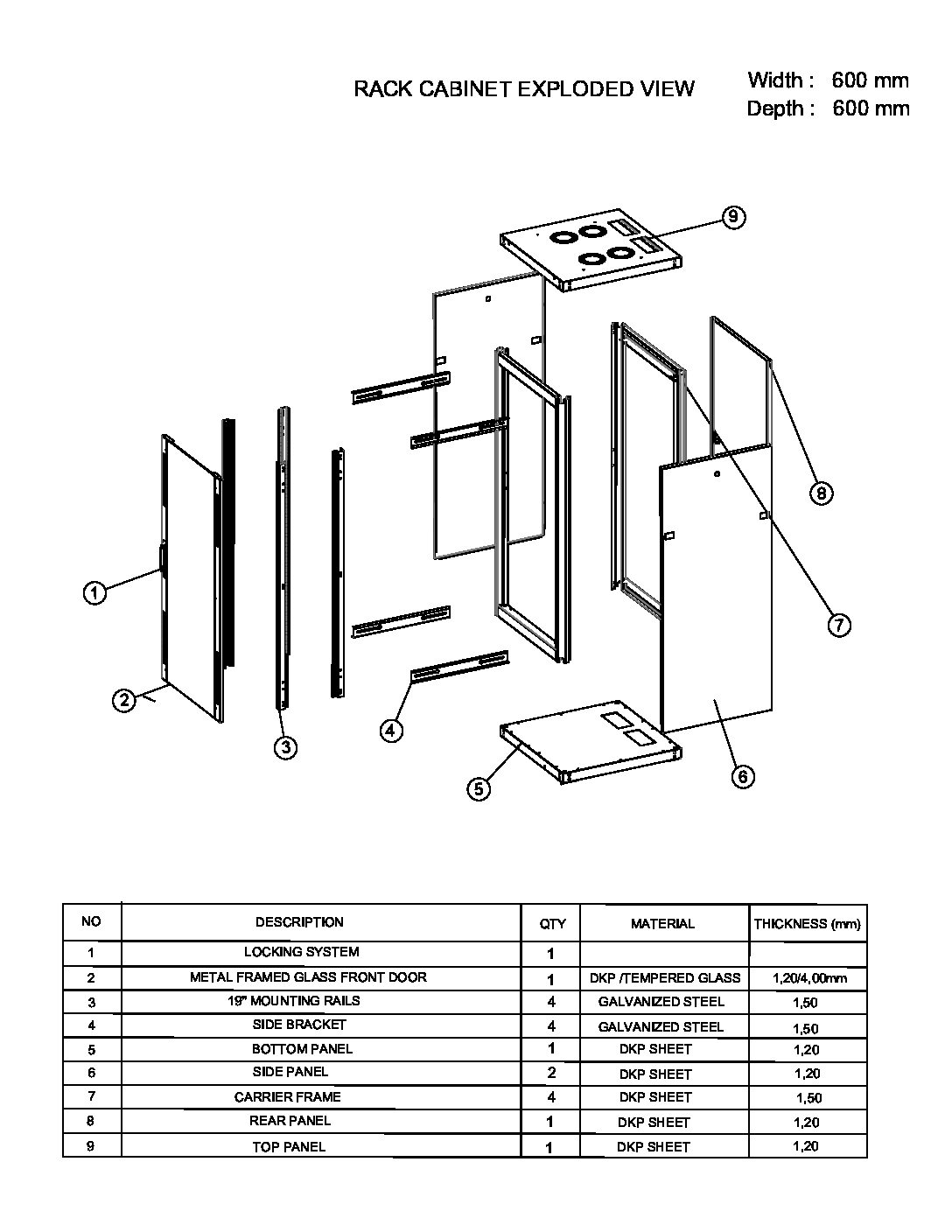

42U 600x600 Floor Standing Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify external dimensions, 19-inch mounting layout, door construction and cabinet component arrangement before ordering.
Related Products and Guides
42U 600x600 Floor Standing Rack Cabinet FAQ
What are the external dimensions?
600 mm wide, 600 mm deep and 2027 mm high according to the approved drawing.
Is this suitable for deep servers?
For deep server chassis, a 1000 mm or 1200 mm deep server cabinet is generally the more appropriate starting point. This 600 mm deep FS Line version is optimized for network and structured cabling installations.
What is the UPCOM product code?
UP-42UYRT-600X600.
