FS Line Server Rack Cabinet · SKU UP-42U-SV-DKL-60X100
42U 600×1000 Server Rack Cabinet – FS Line
42U 600x1000 server rack cabinet is designed for server rooms, data centers and IT environments that need greater equipment depth, controlled airflow and secure 19-inch mounting. The approved drawing confirms 600 mm width, 1000 mm depth and 2027 mm external height.
| UPCOM code | UP-42U-SV-DKL-60X100 |
| Rack height | 42U |
| External size | 600 W × 1000 D × 2027 H mm |
| Mounting width | 465 mm / standard 19-inch format |
| Front / rear | Perforated single-opening doors shown in drawing |
| Mounting rails | 4 pcs |
| Cable entry | Top and bottom |
42U 600x1000 Server Rack Cabinet Specifications
| Parameter | Specification |
|---|---|
| Series | FS Line Server |
| Product code | UP-42U-SV-DKL-60X100 |
| Rack capacity | 42U |
| External width | 600 mm |
| External depth | 1000 mm |
| External height | 2027 mm |
| 19-inch mounting width | 465 mm |
| Front door | Perforated, single opening |
| Rear door | Perforated, single opening |
| Top panel | Fan and cable-entry provisions |
| Bottom panel | Cable entry with sliding cover |
| Mounting rails | 4 pcs |
| Side panels | 2 pcs |
Server Rack Airflow and Construction
Perforated front and rear doors
The approved drawing uses perforated front and rear doors to support front-to-back airflow through installed equipment.
1000 mm cabinet depth
The deeper enclosure provides more installation space behind rack equipment for power connections, patching and cable management than 600 mm network cabinets.
When to Choose a 600x1000 Server Rack
Choose the 600x1000 configuration when 600 mm cabinet width is sufficient but server depth and rear-service clearance require a deeper enclosure. For wider side-cable routing, compare the 800x1000 version; for very deep equipment, compare the 600x1200 and 800x1200 FS Line Server variants.
Typical Applications
- Server rooms and data centers
- Enterprise IT infrastructure
- Server, storage and network equipment installations
- Telecom and core network rooms
- High-density rack deployments requiring perforated doors

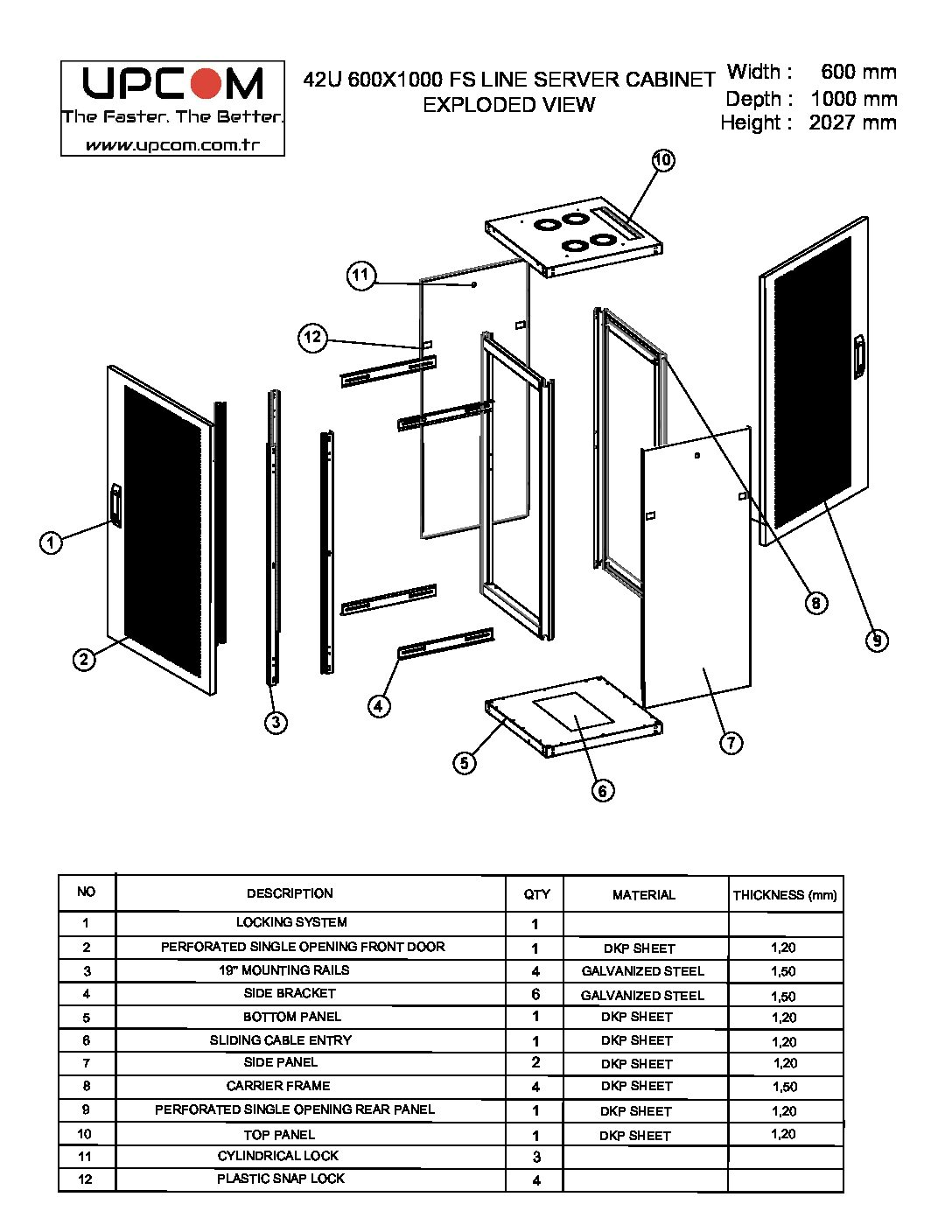

42U 600x1000 Server Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify external dimensions, 19-inch mounting rails, perforated door configuration, cable entry and server clearance before ordering.
Related Products and Guides
42U 600x1000 Server Rack Cabinet FAQ
What are the external dimensions?
600 mm wide, 1000 mm deep and 2027 mm high according to the approved drawing.
Why use 1000 mm depth?
It provides greater clearance for server chassis, rear connectors, power leads and cable routing than shallow network cabinets.
What is the UPCOM product code?
UP-42U-SV-DKL-60X100.
