FS Line Server Rack Cabinet · SKU UP-42U-SV-DKL-80X120
42U 800×1200 Server Rack Cabinet – FS Line
42U 800x1200 server rack cabinet is an FS Line configuration for server rooms and data centers that require perforated doors, 19-inch mounting and service access around deep IT equipment. 800 mm width adds side space for cable routing, vertical PDUs and airflow management. 1200 mm depth provides additional clearance for deep server chassis, rear cabling and service access.
| UPCOM code | UP-42U-SV-DKL-80X120 |
| Rack height | 42U |
| Width | 800 mm |
| Depth | 1200 mm |
| Rack format | 19 inch |
| Doors | Perforated front and rear |
Why Choose a 42U 800x1200 Server Rack Cabinet?
800 mm width adds side space for cable routing, vertical PDUs and airflow management.
1200 mm depth provides additional clearance for deep server chassis, rear cabling and service access.
Typical Applications
- Server rooms and data centers
- Enterprise IT infrastructure
- Server, storage and network equipment
- Telecom core rooms
- High-density rack installations

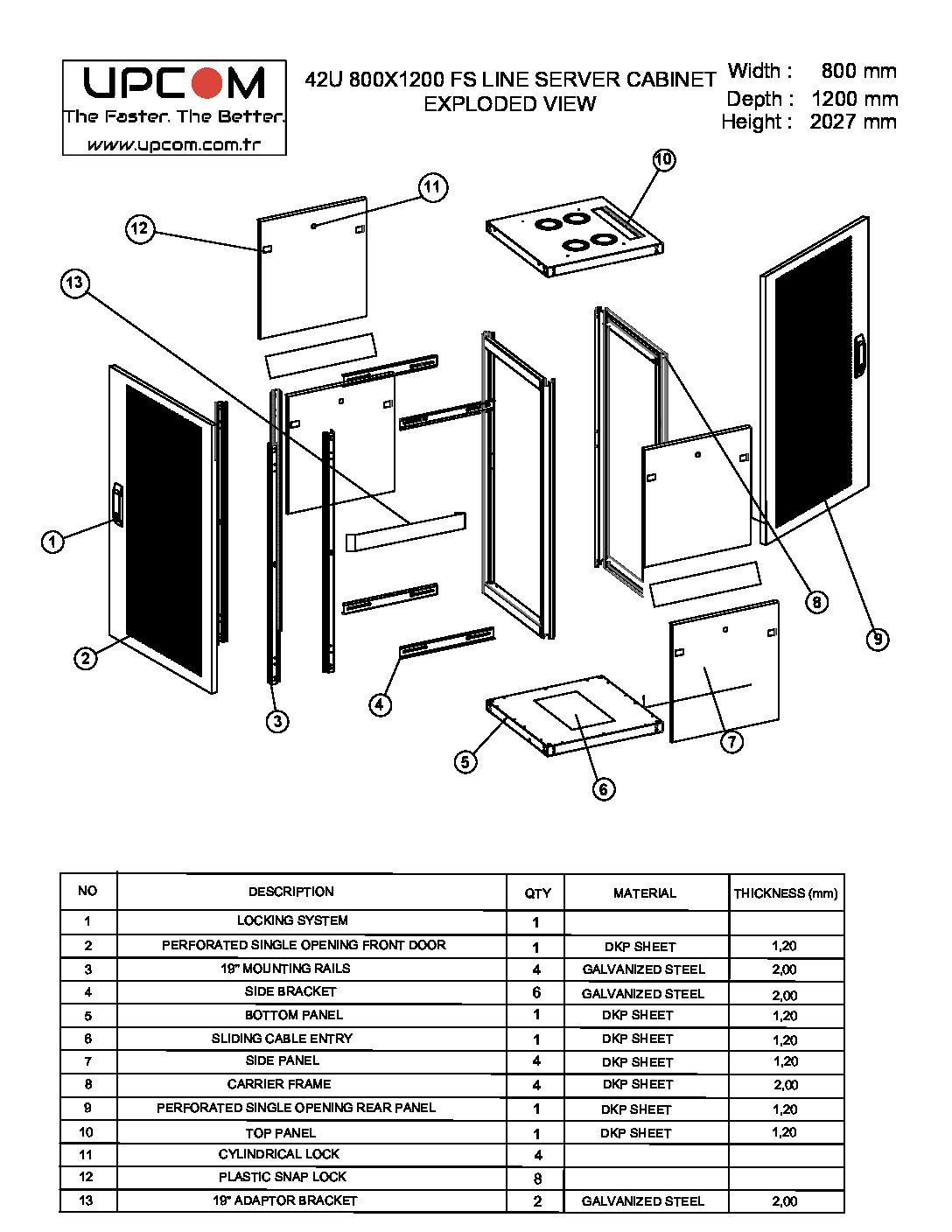

42U 800x1200 Server Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify external dimensions, 19-inch mounting rails, perforated door configuration, cable entry and server clearance before ordering.
Related Products and Guides
42U 800x1200 Server Rack Cabinet FAQ
What is the UPCOM product code?
UP-42U-SV-DKL-80X120.
Why choose 1200 mm depth?
1200 mm depth provides additional clearance for deep server chassis, rear cabling and service access.
What does 800 mm width change?
800 mm width adds side space for cable routing, vertical PDUs and airflow management.
