45U 800×1000 Server Rack Cabinet – FS Line
45U 800x1000 server rack cabinet is an FS Line configuration for server rooms and data centers. 800 mm width adds side space for cable routing, vertical PDUs and airflow organization. 1000 mm depth suits many standard server installations.
| UPCOM code | UP-45U-SV-DKL-80X100 |
| Rack height | 45U |
| Width | 800 mm |
| Depth | 1000 mm |
| Rack format | 19 inch |
Why Choose a 45U 800x1000 Server Rack Cabinet?
800 mm width adds side space for cable routing, vertical PDUs and airflow organization.
1000 mm depth suits many standard server installations.
Typical Applications
- Server rooms and data centers
- Enterprise IT infrastructure
- Server and storage equipment
- Telecom core rooms
- High-density rack deployments

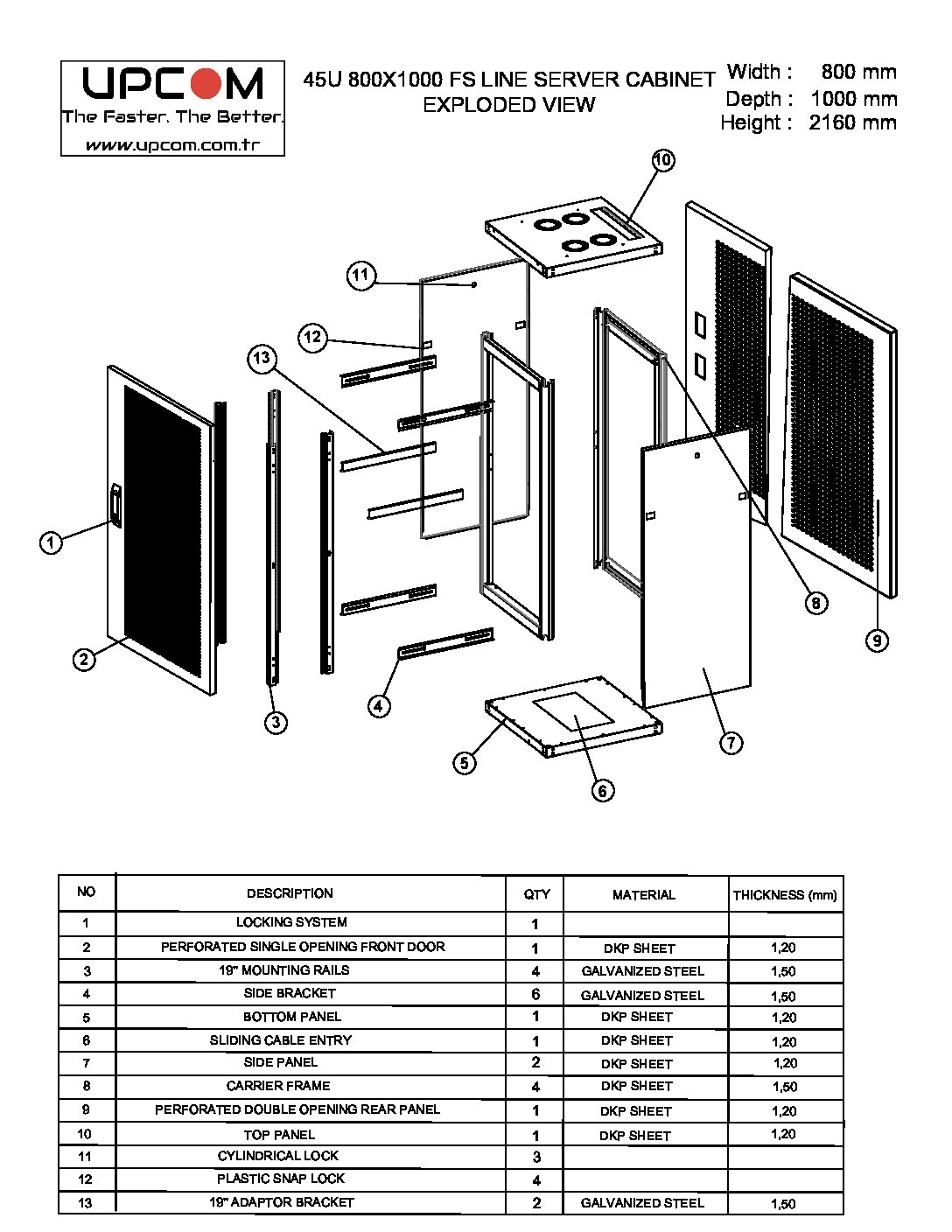

45U 800x1000 Server Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify external dimensions, 19-inch mounting rails, perforated door configuration, cable entry and server clearance before ordering.
Related Products and Guides
45U 800x1000 Server Rack Cabinet FAQ
What is the UPCOM product code?
UP-45U-SV-DKL-80X100.
Why choose 1000 mm depth?
1000 mm depth suits many standard server installations.
What does 800 mm width change?
800 mm width adds side space for cable routing, vertical PDUs and airflow organization.
