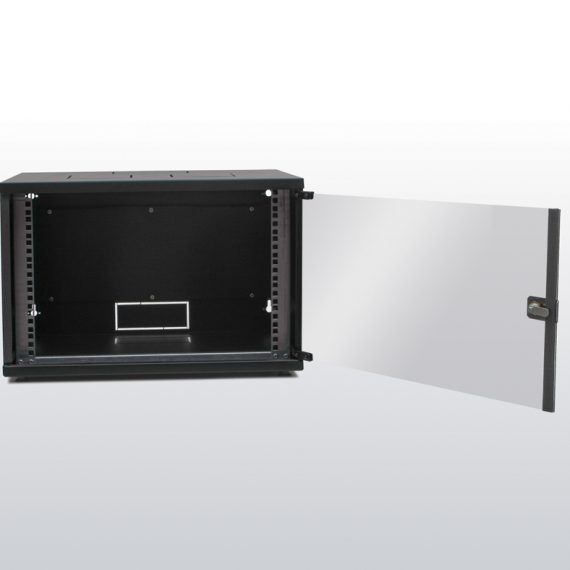

SOHO Wall Mount Rack Cabinet
SOHO wall mount rack cabinet is a compact enclosure designed to house 10" or 19" rack equipment in small offices, retail sites, CCTV systems and compact structured-cabling installations. Its wall-mounted format keeps equipment organized where floor space is limited.
| Use case | Small office networks, security systems, CCTV / DVR, remote monitoring, structured cabling corners |
| Mounting | Wall mounted, space-saving enclosure |
| Ventilation | Roof prepared for fan units (punched-out entries) |
| Cable entry | Top and bottom cable crossings for practical routing |
| Compliance | Mechanical structure EN 61587-1, corrosion resistance ISO 9227 / ASTM B117, RoHS (2011/65/EU) |
Reference links: 19-inch rack, IP rating (IP code), RoHS 2011/65/EU, ISO 9227.
SOHO Wall Mount Rack Cabinet Size Selector
Choose rack height and width × depth below. Open a size page for its technical specification and quotation details.
| Rack height | 550 × 400 mm |
|---|---|
| 4U | 4U 550 × 400UP-4U-SH-55X40 |
| 7U | 7U 550 × 400UP-7U-SH-55X40 |
| 9U | 9U 550 × 400UP-9U-SH-55X40 |
| 12U | 12U 550 × 400UP-12U-SH-55X40 |
| 15U | 15U 550 × 400UP-15U-SH-55X40 |
Width × depth refers to cabinet dimensions, not usable equipment depth. Confirm rail position and cable clearance for your equipment.
Features
Construction & compliance
- Mechanical structure conforming to EN 61587-1
- Corrosion resistance (salt spray) according to ISO 9227 and ASTM B117
- Compliance with EU RoHS Directive 2011/65/EU (RoHS-2)
- IP20 protection rating for indoor cabinet installations
Practical design details
- Available in up to 15U heights
- Compact design with easy installation
- Powder coated electrostatic paint: RAL 7035 or RAL 9005
- Door options: glass door or metal door
- 4 mm impact resistant smoked glass (glass door option)
- 10" or 19" galvanized profile rails
- Roof prepared for fan units (punched out entries)
- Top and bottom cable crossings for neat cable routing
SOHO wall mount cabinets are used to house rack-mountable equipment such as patch panels, switches, small servers, DVR devices, and distribution components in a secure and organized structure. For structured cabling projects, pair the cabinet with patch panels and termination solutions to keep installation clean and service-friendly.
Applications
- Video surveillance systems (CCTV / DVR)
- Network integration systems
- Remote monitoring systems
- Closed-circuit monitoring systems
- Electronic monitoring systems
- Wireless monitoring systems
Related products for a complete setup
Cabinet family
Cabling components
RFQ checklist (what to send)
If you want a fast and accurate quotation, send these details in your RFQ:
- Rack width: 10" or 19"
- Height: U size (example: 6U, 9U, 12U)
- Depth requirement (equipment depth + cable bend allowance)
- Door type: glass or metal
- Color: RAL 7035 or RAL 9005
- Quantity
- Destination country/city (for packing and shipment planning)
- Optional: fan unit requirement, shelves, patch panels, cable management needs
FAQ
Is this cabinet 10" or 19"?
SOHO line supports 10" or 19" mounting rail options. Specify your rack width in the RFQ.
What is the maximum height available?
SOHO wall mount cabinets are available in up to 15U heights. Choose U size based on current equipment and planned expansion.
Is it suitable for indoor use?
Yes. The cabinet has IP20 rating and is designed for indoor network and security installations.
Do you offer glass and metal door versions?
Yes. You can choose glass door (with 4 mm smoked glass) or metal door, depending on visibility and security needs.
Can I install a fan unit?
Yes. The roof is prepared for fan units with punched-out entries. Mention your airflow and heat load expectations in your RFQ.
Which color options are available?
Standard finishes include RAL 7035 and RAL 9005. Confirm your preference during quotation.
What should I send to get an accurate quote?
At minimum: rack width (10" or 19"), U height, depth need, door type, color, quantity, and destination city/country.
What products are commonly paired with this cabinet?
Most installations pair a wall mount cabinet with fiber patch panels, cable management, and the correct cable types such as drop fiber cable.
How to choose a wall mount rack cabinet
- List your equipment (switch, patch panel, DVR, UPS) and confirm if it is 10" or 19" rack-mountable.
- Calculate U height (include spare space for future expansion and cable routing).
- Confirm depth requirement (equipment depth + connectors + bend radius margin).
- Select door type (glass for visibility, metal for privacy and higher tamper resistance).
- Plan airflow (passive ventilation or fan unit, depending on heat load and room temperature).
- Check cable entry (top/bottom cable crossings match your route and conduit layout).
- Send RFQ with quantity and destination for packing and shipment planning.
