SOHO Wall Mount Rack Cabinet · SKU UP-4U-SH-55X40
4U 550×400 Wall Mount Rack Cabinet – SOHO
4U 550x400 wall mount rack cabinet is a shallow, space-saving enclosure for small network, CCTV and structured cabling installations. The approved drawing confirms 550 mm width, 400 mm depth and 222 mm external height.
| UPCOM code | UP-4U-SH-55X40 |
| Rack height | 4U |
| External size | 550 W × 400 D × 222 H mm |
| Mounting width | 465 mm / standard 19-inch format |
| Front door | Glass or metal option |
| Mounting | Wall mounting points shown in rear view |
| Environment | Indoor compact IT / network installation |
4U 550x400 Wall Mount Rack Cabinet Specifications
| Parameter | Specification |
|---|---|
| Series | SOHO wall mount rack cabinet |
| Product code | UP-4U-SH-55X40 |
| Rack capacity | 4U |
| External width | 550 mm |
| External depth | 400 mm |
| External height | 222 mm |
| 19-inch mounting width | 465 mm |
| Door options | Glass front door / metal front door |
| Wall fixing | Rear wall-mount points shown in drawing |
| Top panel | Ventilation / fan cut-outs shown in drawing |
Compact Wall Mount Layout
Shallow 400 mm depth
Designed for compact rack equipment, patching and distribution points where a deep enclosure is unnecessary.
Wall mounting
The rear view shows dedicated wall-mount points, keeping the cabinet off the floor and preserving usable room space.
Typical Applications
- Small office and branch networks
- Patch panel and compact switch installations
- CCTV / DVR and security-network distribution
- Residential structured cabling
- Retail and small telecom distribution points
When to Choose a 4U 550x400 Cabinet
Use this configuration when the equipment stack fits within 4U and the installed devices are shallow enough for a 400 mm enclosure. Check connector length and cable bend allowance before ordering. For deeper devices, compare the W-Line 550x450 and 550x550 wall mount cabinets.

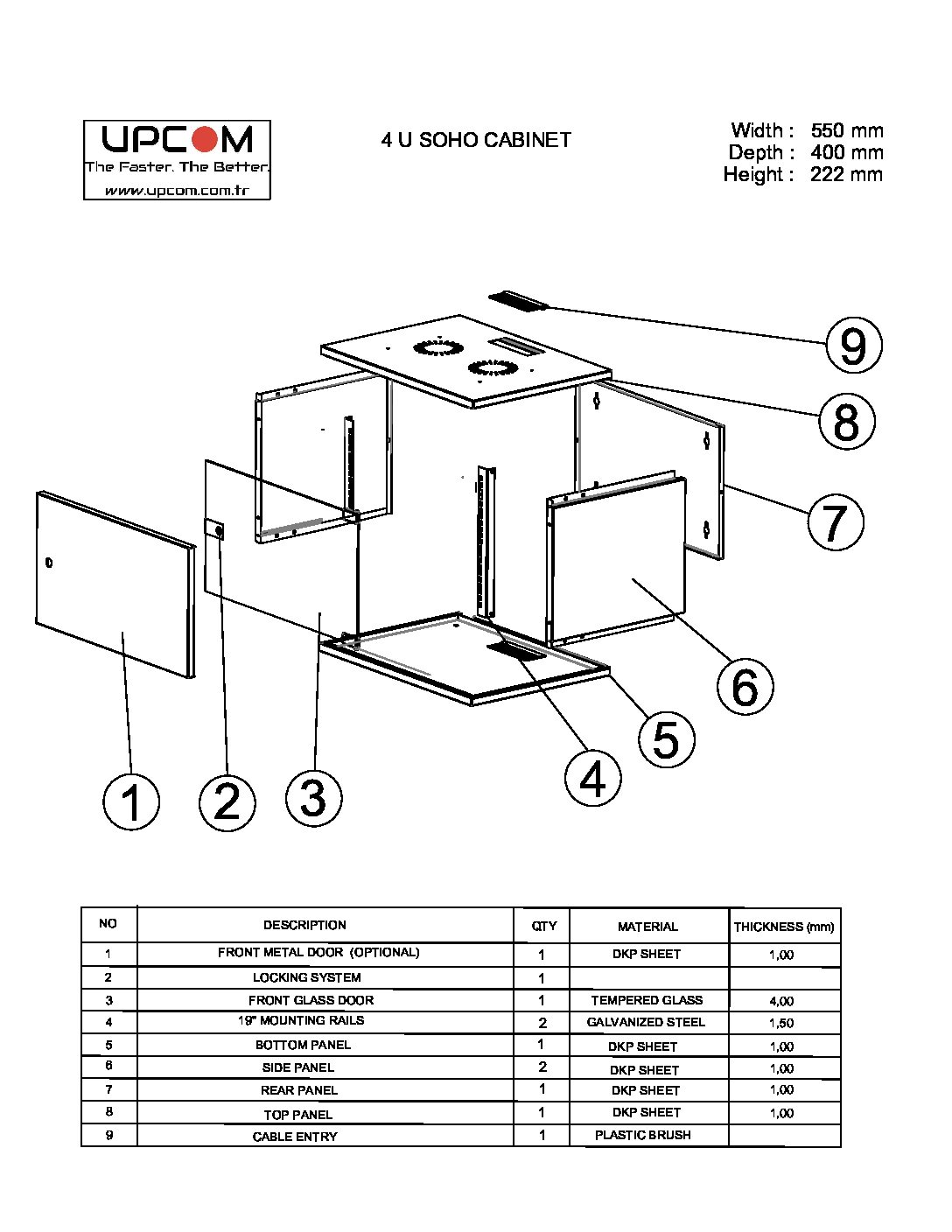

4U 550x400 Wall Mount Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify cabinet dimensions, 19-inch mounting layout and enclosure construction before ordering.
Related Products and Guides
4U 550x400 Wall Mount Rack Cabinet FAQ
What are the external dimensions?
550 mm wide, 400 mm deep and 222 mm high according to the approved drawing.
Is a glass door available?
Yes. The drawing shows both glass-door and metal-door options.
What is the UPCOM product code?
UP-4U-SH-55X40.
