SOHO Wall Mount Rack Cabinet · SKU UP-15U-SH-55X40
15U 550×400 Wall Mount Rack Cabinet – SOHO
15U 550x400 wall mount rack cabinet is a shallow SOHO enclosure for higher-capacity compact wall-mounted network installations. Its 400 mm depth keeps wall projection low while providing standard 19-inch mounting for compact rack equipment.
Series image shown. Exact cabinet proportions vary by selected configuration.
15U550×400 mm19 inchIndoorGlass / metal door
| UPCOM code | UP-15U-SH-55X40 |
| Rack height | 15U |
| Width | 550 mm |
| Depth | 400 mm |
| Mounting | Wall mount |
When to Choose a 15U 550x400 Wall Mount Rack Cabinet
Choose 15U when the installed patching, switching and accessory stack needs this vertical capacity but equipment depth remains compatible with a compact 400 mm enclosure. Allow space for connectors and cable bend radius behind the deepest device.
Typical Applications
- Office and branch networks
- CCTV and security distribution
- Patch panels and compact switches
- Retail and residential structured cabling
- Small telecom distribution points

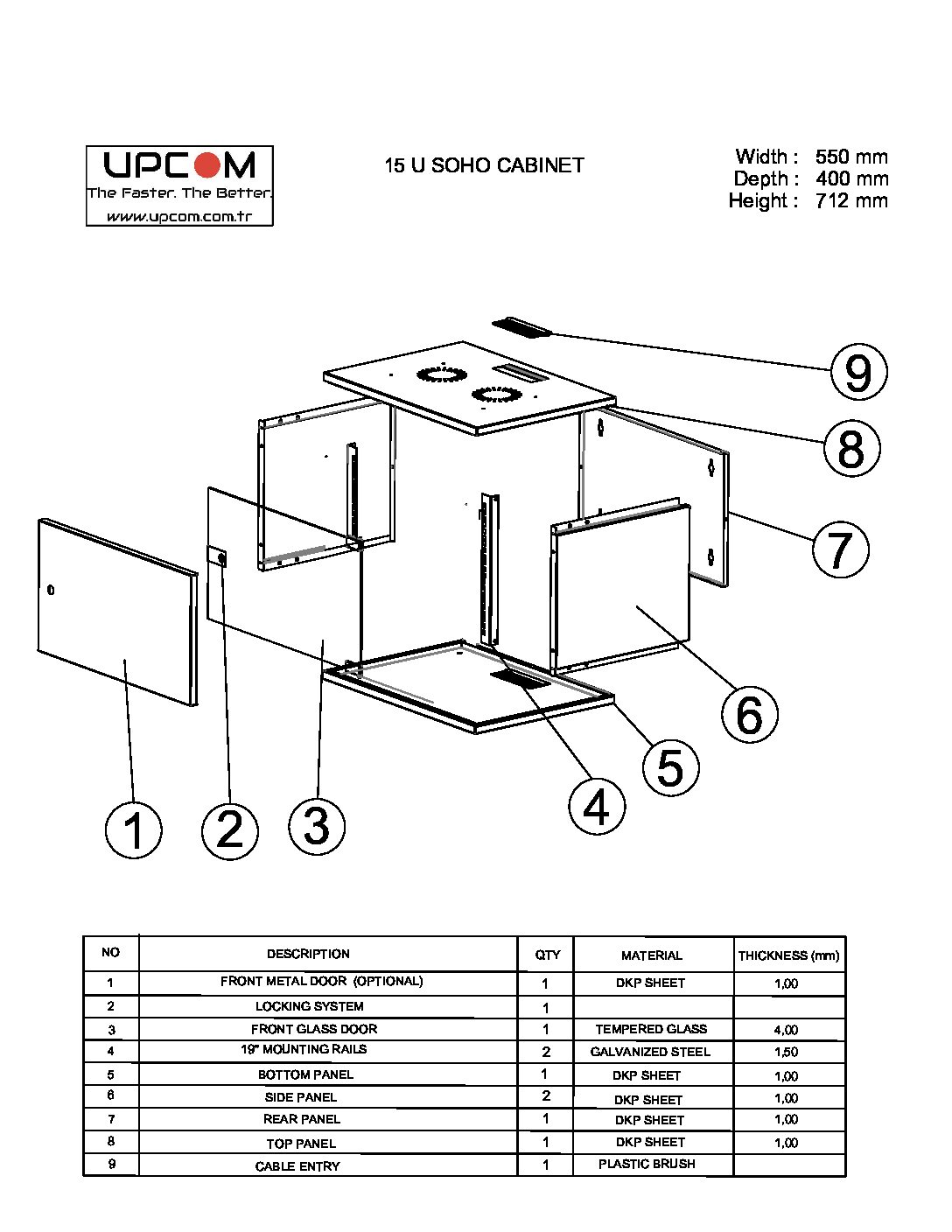

15U 550x400 Wall Mount Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify cabinet dimensions, 19-inch mounting layout and enclosure construction before ordering.
Related Products and Guides
15U 550x400 Wall Mount Rack Cabinet FAQ
What is the UPCOM product code?
UP-15U-SH-55X40.
What is the cabinet depth?
400 mm nominal depth.
Is SOHO intended for outdoor use?
No. SOHO is an indoor wall mount rack cabinet family.
