20U 550×450 Wall Mount Rack Cabinet – W-Line
20U 550x450 wall mount rack cabinet is a 19-inch W-Line enclosure for network and structured-cabling installations. This 20U configuration is suited to large wall-mounted network and telecom distribution points. The 450 mm depth minimizes wall projection.
| UPCOM code | UP-20UDVT-550X450 |
| Rack height | 20U |
| External width | 550 mm |
| External depth | 450 mm |
| External height | 956 mm |
| Mounting format | 19-inch rack rails |
| Environment | Indoor, IP20 |
20U 550x450 Wall Mount Rack Cabinet Specifications
| Series | W-Line |
| Product code | UP-20UDVT-550X450 |
| Rack capacity | 20U |
| Width | 550 mm |
| Depth | 450 mm |
| External height | 956 mm |
| Front door | Glass or perforated metal option |
| Cooling | Optional fan module |
| Colors | RAL 9005 / RAL 7035 |
When to Choose This W-Line Size
This 20U configuration is suited to large wall-mounted network and telecom distribution points. The 450 mm depth minimizes wall projection. Compare the 20U 550x550 version where a different cabinet depth is required.
Typical Applications
- Network and telecom distribution
- Patch panels and Ethernet switches
- Office and branch IT rooms
- Retail and CCTV network points
- Structured cabling systems

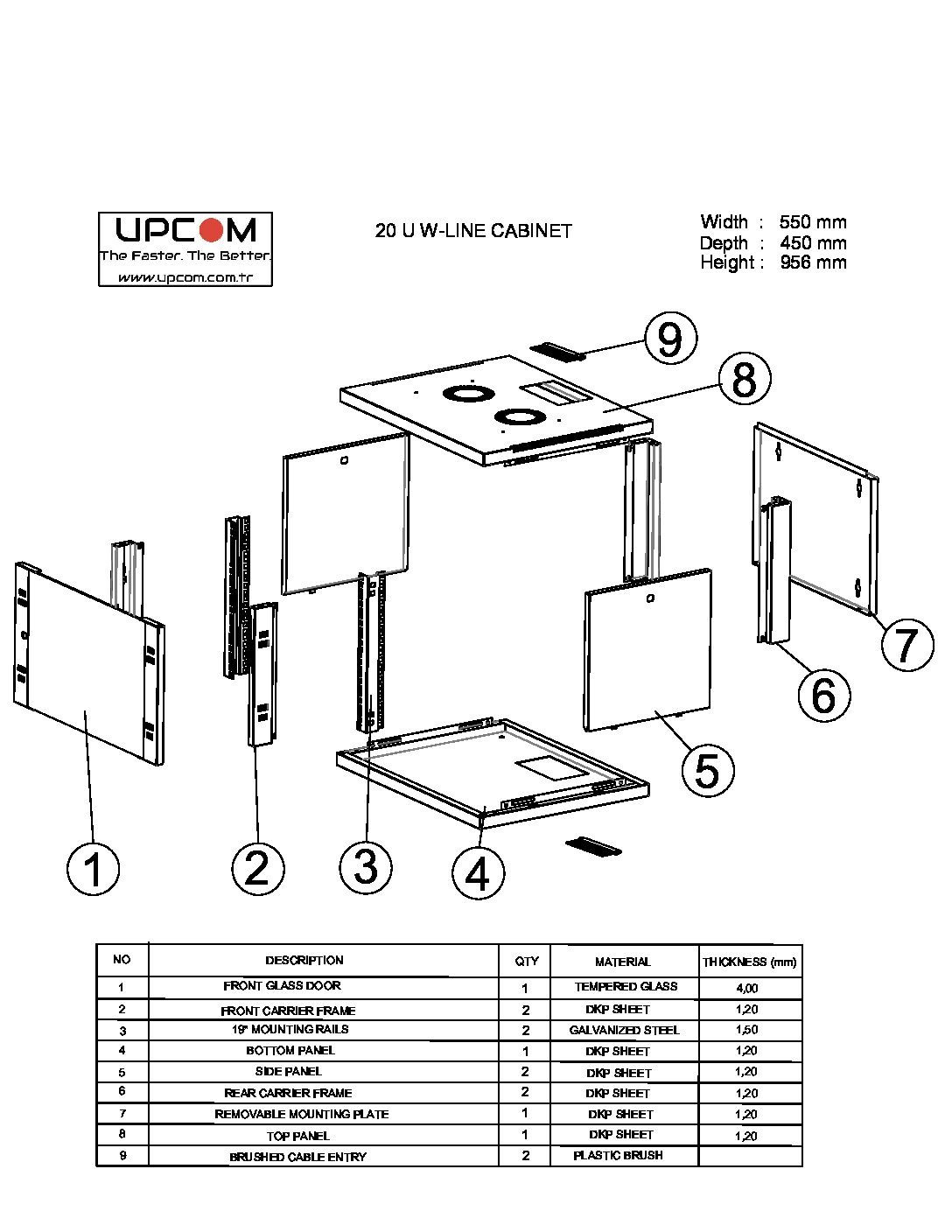

20U 550x450 Wall Mount Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify cabinet dimensions, 19-inch mounting layout, cable-entry provisions and enclosure construction before ordering.
Related Products and Guides
20U 550x450 Wall Mount Rack Cabinet FAQ
What is the UPCOM product code?
UP-20UDVT-550X450.
Which depth should I choose?
Use 450 mm where wall projection must remain compact. Choose 550 mm for deeper equipment and extra rear cabling clearance.
Is W-Line suitable outdoors?
No. W-Line is an indoor IP20 series.
