W-Line Wall Mount Rack Cabinet · SKU UP-7UDVT-550X450
7U 550×450 Wall Mount Rack Cabinet – W-Line
7U 550x450 wall mount rack cabinet is a 19-inch W-Line enclosure for network and structured-cabling installations where floor space is limited. This 7U configuration suits small branch, retail and telecom distribution points. The 450 mm depth keeps the wall projection compact.
| UPCOM code | UP-7UDVT-550X450 |
| Rack height | 7U |
| External width | 550 mm |
| External depth | 450 mm |
| External height | 370 mm |
| Mounting format | 19-inch rack rails |
| Environment | Indoor, IP20 W-Line configuration |
7U 550x450 Wall Mount Rack Cabinet Specifications
| Series | W-Line |
| Product code | UP-7UDVT-550X450 |
| Rack capacity | 7U |
| Width | 550 mm |
| Depth | 450 mm |
| External height | 370 mm |
| Front door | Glass or perforated metal option |
| Cooling | Optional fan module; top ventilation provisions |
| Colors | RAL 9005 Black / RAL 7035 Light Grey |
When to Choose This W-Line Size
This 7U configuration suits small branch, retail and telecom distribution points. The 450 mm depth keeps the wall projection compact. Compare the 7U 550x550 version if your equipment depth or wall projection requirement differs.
Typical Applications
- Office and branch network distribution
- Patch-panel and Ethernet-switch installations
- Retail and CCTV network points
- Telecom distribution locations
- Structured cabling systems

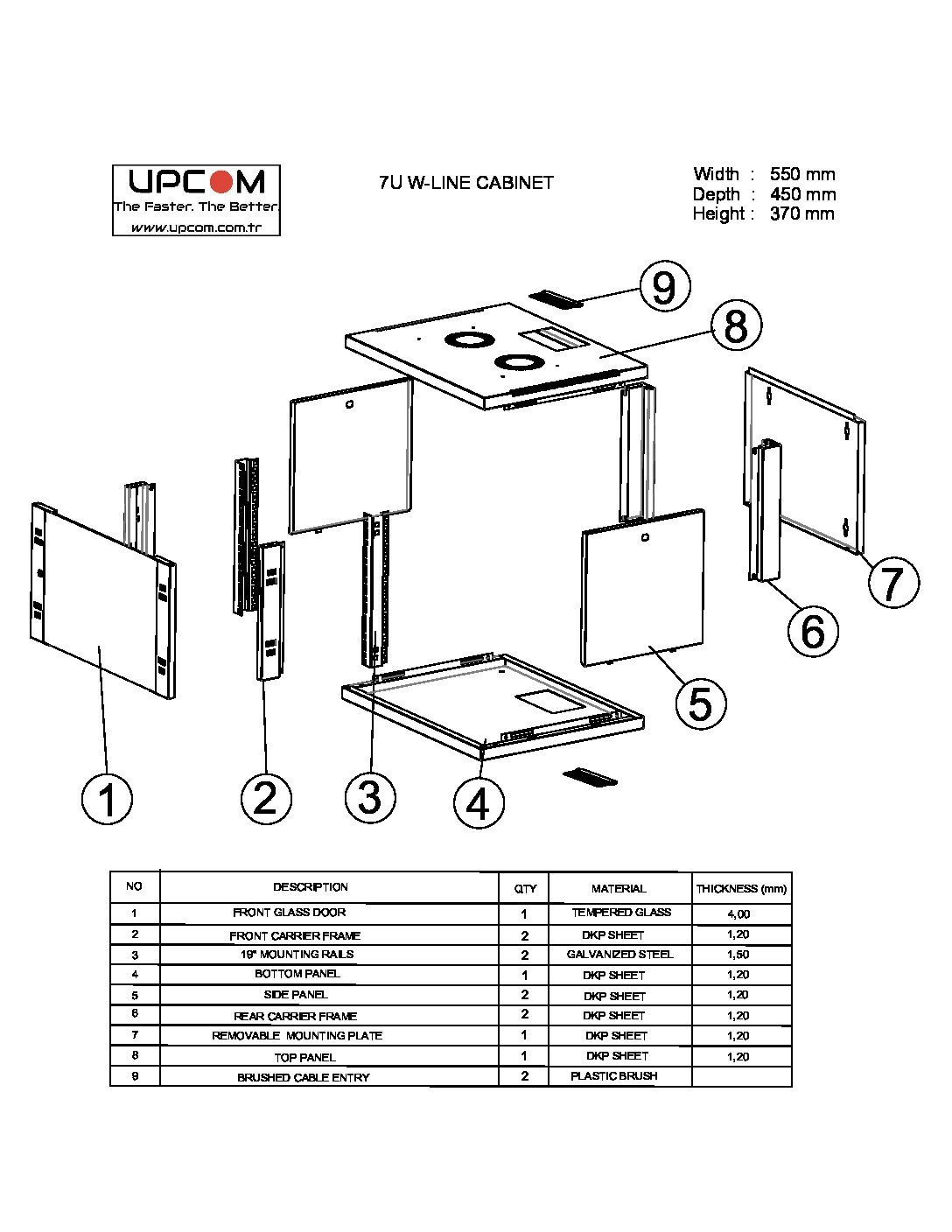

7U 550x450 Wall Mount Rack Cabinet Technical Drawing
Approved dimensional drawing
Use the approved drawing to verify cabinet dimensions, 19-inch mounting layout, cable-entry provisions and enclosure construction before ordering.
Related Products and Guides
7U 550x450 Wall Mount Rack Cabinet FAQ
What is the UPCOM product code?
UP-7UDVT-550X450.
Which depth should I choose?
Use 450 mm where wall projection must stay compact. Choose 550 mm when deeper equipment or additional rear cabling clearance is required.
Is W-Line suitable outdoors?
No. W-Line is intended for indoor IP20 installations.
